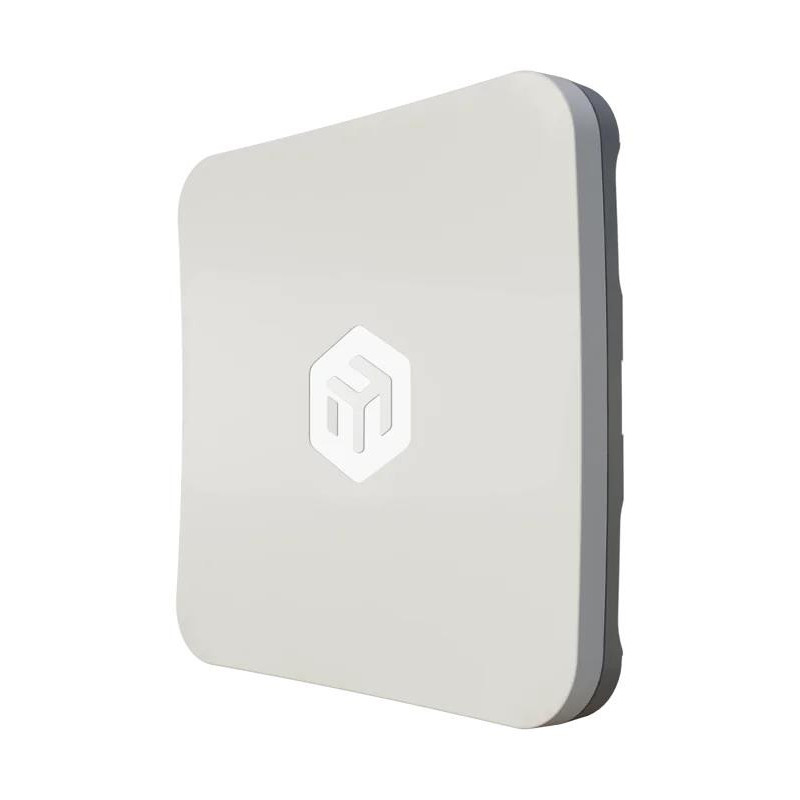

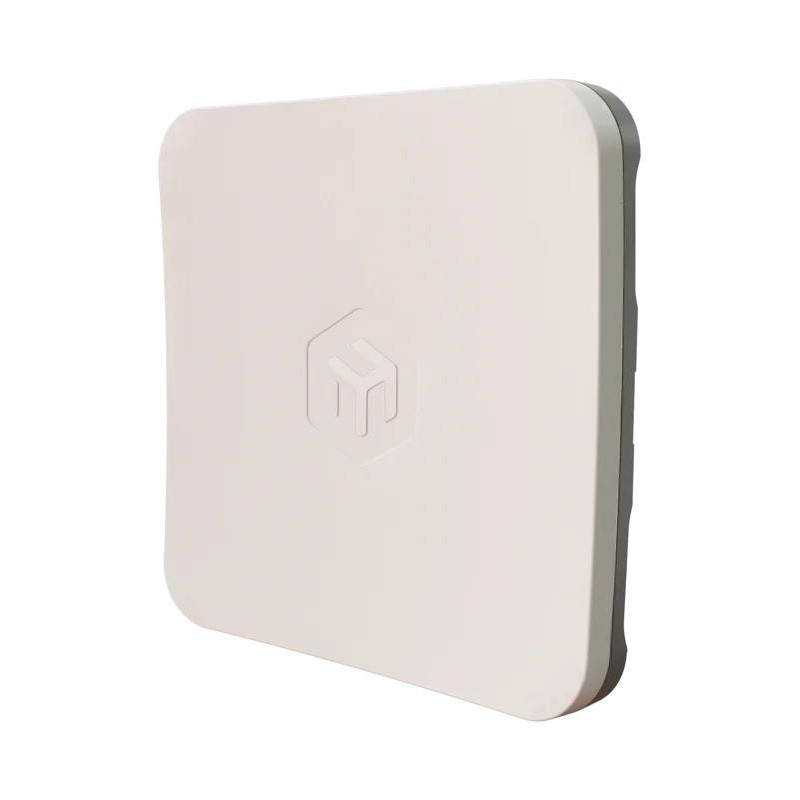

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options - perfect for masts, poles, or rooftop deployments.

ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

Weatherproof

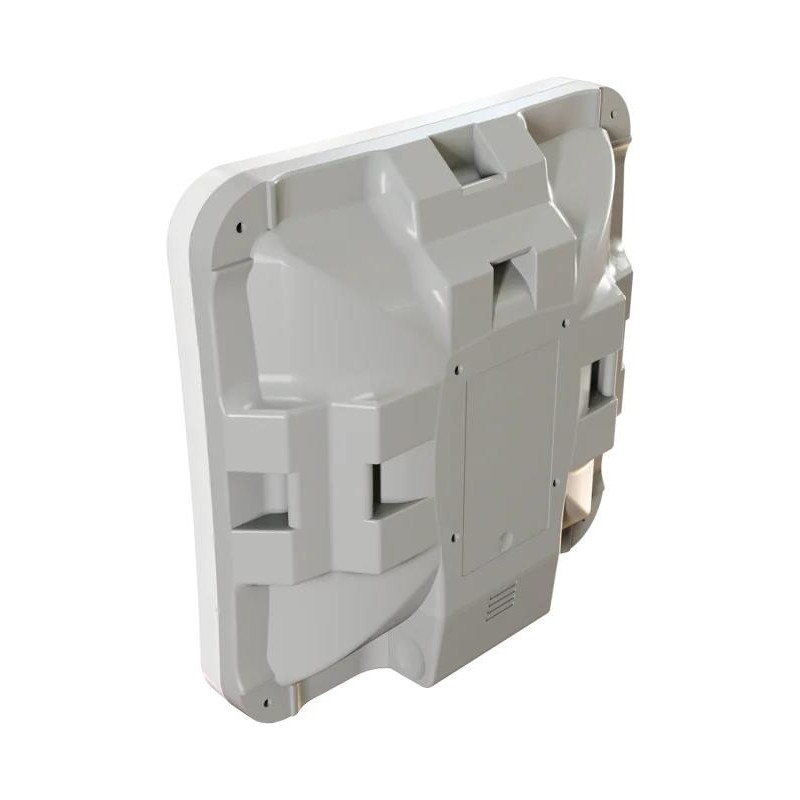

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.

With RouterOS license level 4, the SXTsq 5 ax isn't just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.



2.4 GHz No
5 GHz Yes
6 GHz Yes
AC input voltage 12 - 28 V
Antenna gain level (max) 16 dBi
Antenna type Internal
Built-in processor Yes
Certification CE, FCC, IC, EAC, ROHS
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10/100/1000 Mbit/s
Flash memory 128 MB
Internal memory 256 MB
International Protection (IP) code IP55
Maximum data transfer rate 1200 Mbit/s
Model SXTSQ-5AXD
Model name SXTSQ-5AXD
Networking standards IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11n
Operating relative humidity (H-H) -40 - 70 %
Operating system installed RouterOS
Power consumption (max) 6 W
Power over Ethernet (PoE) Yes
Processor frequency 800 MHz
Product colour White
Product Net Weight 0.295 kg
Shipping Box Depth 52 cm
Shipping Box Height 38.5 cm
Shipping Box Weight 10.9499998093 kg
Shipping Box Width 23.5 cm
Summary Mikrotik SXTSQ-5AXD. 5 GHz, 6 GHz, Maximum data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6 W
Unit Box Height 0.04
Unit Box Length 0.255
Unit Box Width 0.18
Unit Calculated Volume 0.002352 cubm
Unit Calculated Weight 0.547 kg
Units per Shipping Box 20
Vendor Homepage https://mikrotik.com/product/sxtsq_5ax#product_specification
