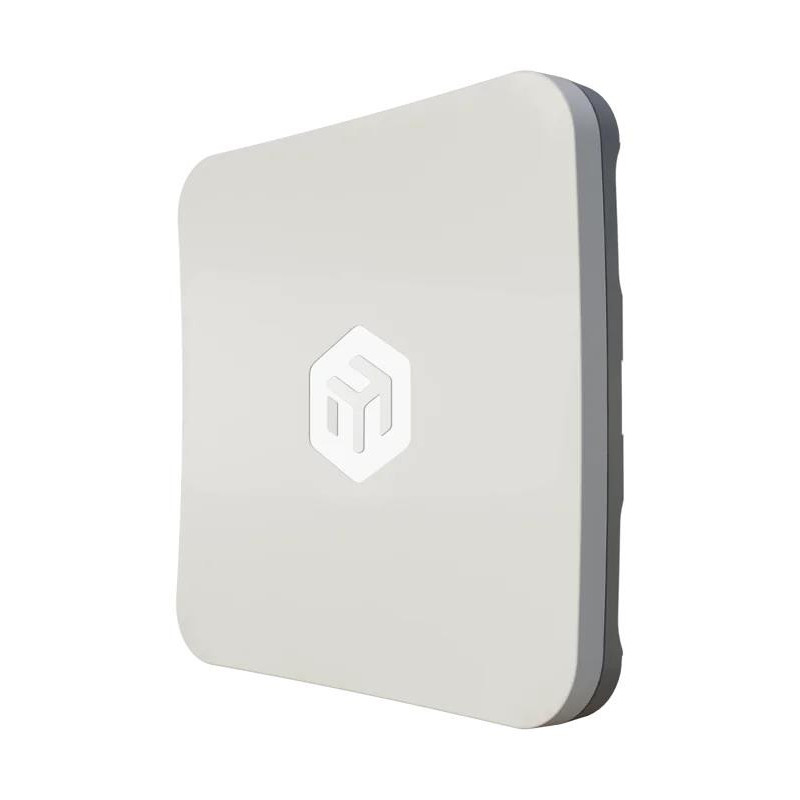

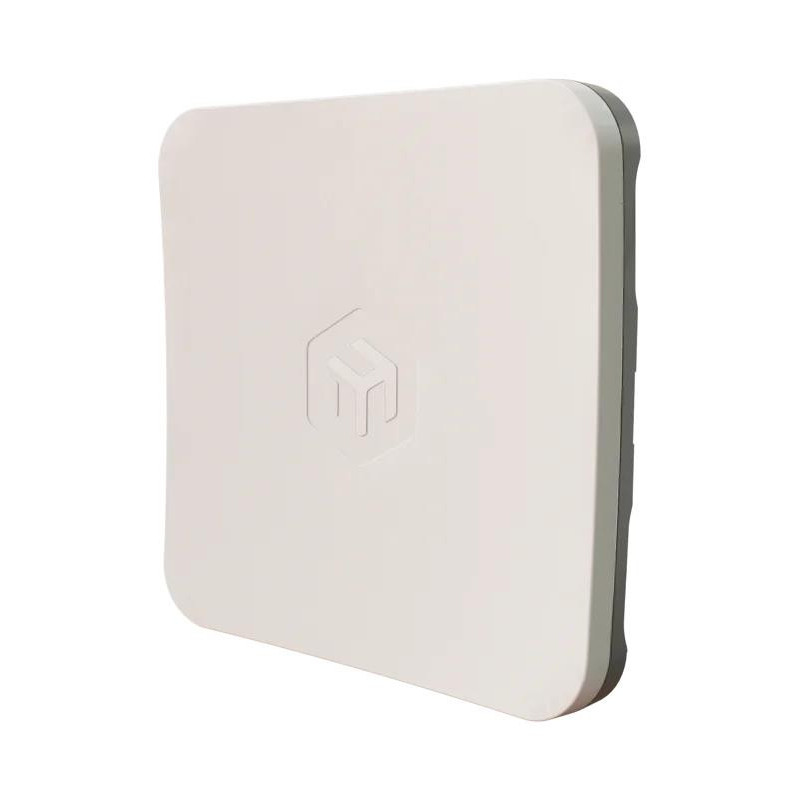

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options - perfect for masts, poles, or rooftop deployments.
ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.
Weatherproof

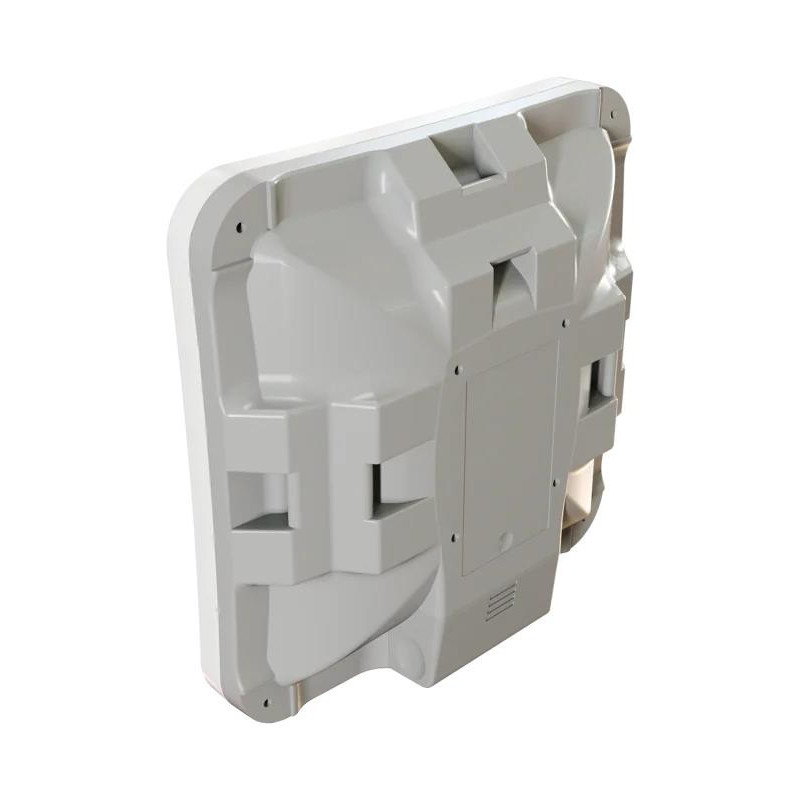

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.
3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.
Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.
With RouterOS license level 4, the SXTsq 5 ax isn't just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.
| Summary | Mikrotik SXTSQ-5AXD. 5 GHz, 6 GHz, Maximum data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6 W |
| Vendor Homepage | https://mikrotik.com/product/sxtsq_5ax#product_specification |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.255 |
| Unit Box Width | 0.18 |
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11n |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 12 - 28 V |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| International Protection (IP) code | IP55 |
| Product colour | White |
| Antenna gain level (max) | 16 dBi |
| Antenna type | Internal |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Operating system installed | RouterOS |
| Processor frequency | 800 MHz |
| Certification | CE, FCC, IC, EAC, ROHS |
| Operating relative humidity (H-H) | -40 - 70 % |
| Model | SXTSQ-5AXD |
| Model name | SXTSQ-5AXD |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.002352 cubm |
| Unit Calculated Weight | 0.547 kg |
