Ubiquiti UC-C6-CMR Cable

Overview Ubiquiti Networks introduces UniFi® Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.

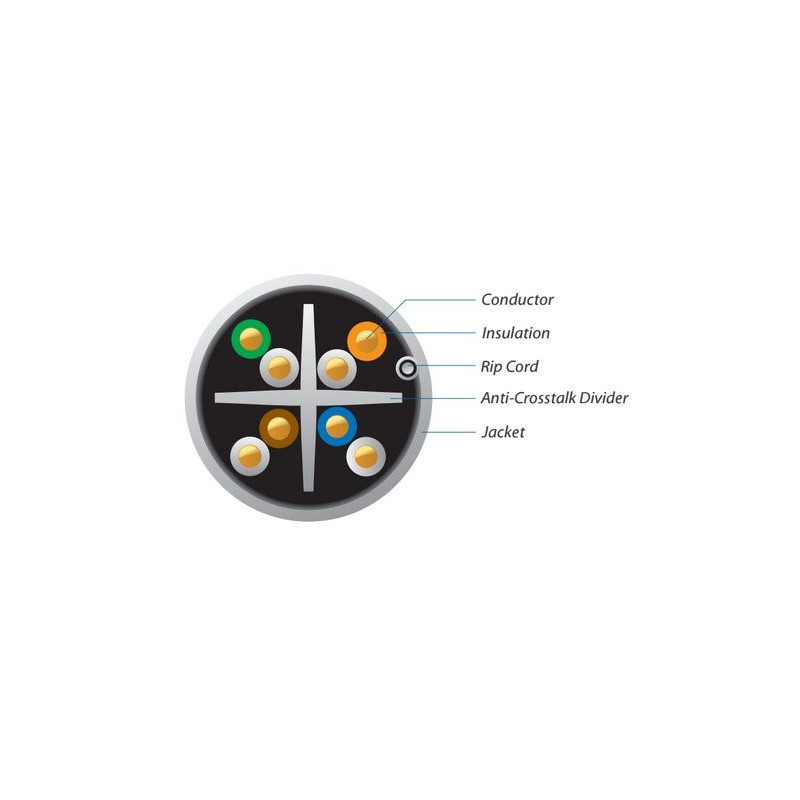

Performance Available in lengths of 1000 ft (304 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G* Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.

Environment CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications

Cable: Category 6 Ethernet Support: Up to 10 Gbps Conductor Type: Bare Solid Copper Conductor Wire: Gauge 23 AWG Conductor Diameter: 0.575 mm, Nominal Insulation Type: FR-PE Insulation Thickness: 0.2 mm, Nominal Insulation Diameter: 1.0 ± 0.1 mm Anti-Crosstalk Divider: Type FR-PE Anti-Crosstalk Divider: 5.0 x 0.5 mm, Nominal Rip Cord: Yes Jacket Material: PVC Jacket Thickness: 0.5 mm, Nominal Jacket Outer Diameter: 6.0 ± 0.3 mm Jacket Color: White Reference Standard: ISO/IEC 11801, TIA/EIA568B.2
