Kabelis Ubiquiti UC-C6-CMR

Overview

Ubiquiti Networks introduces UniFi® Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.

Performance

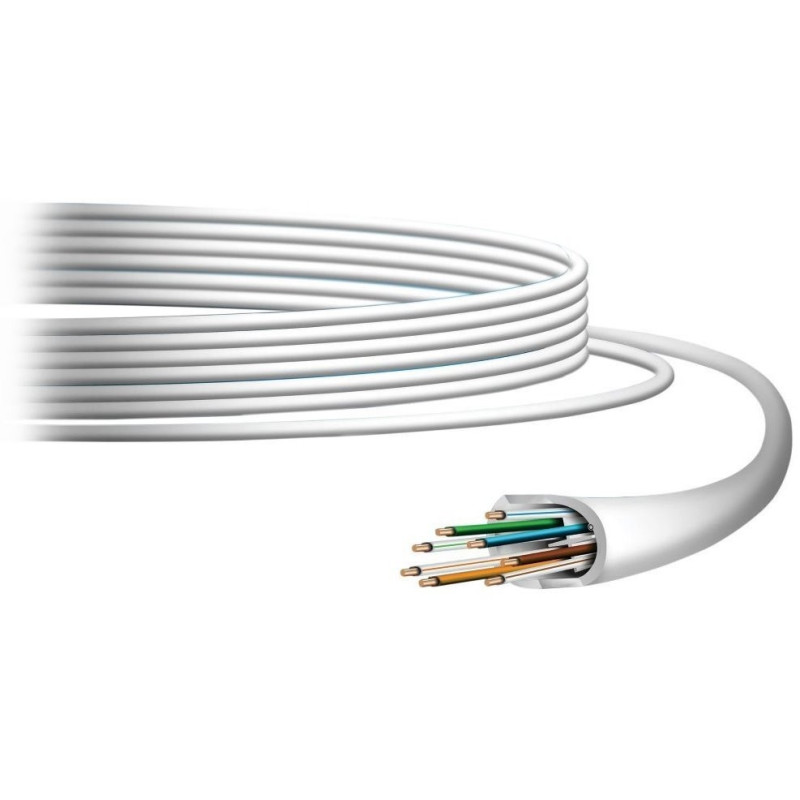

Available in lengths of 1000 ft (304 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G* Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.

Environment

CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications

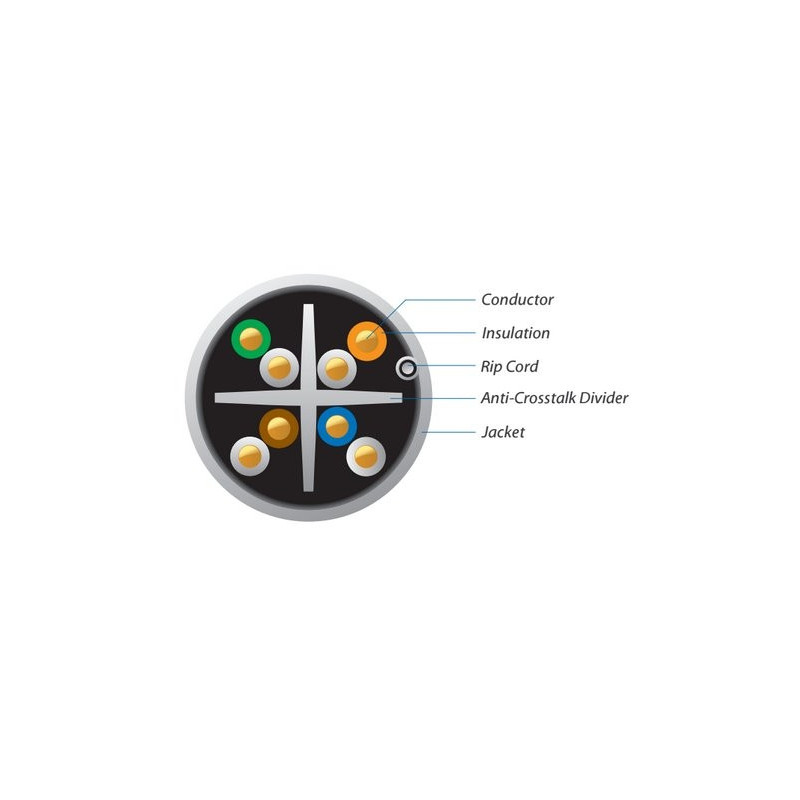

Cable: Category 6

Ethernet Support: Up to 10 Gbps

Conductor Type: Bare Solid Copper

Conductor Wire: Gauge 23 AWG

Conductor Diameter: 0.575 mm, Nominal

Insulation Type: FR-PE

Insulation Thickness: 0.2 mm, Nominal

Insulation Diameter: 1.0 ± 0.1 mm

Anti-Crosstalk Divider: Type FR-PE

Anti-Crosstalk Divider: 5.0 x 0.5 mm, Nominal

Rip Cord: Yes

Jacket Material: PVC

Jacket Thickness: 0.5 mm, Nominal

Jacket Outer Diameter: 6.0 ± 0.3 mm

Jacket Color: White

Reference Standard: ISO/IEC 11801, TIA/EIA568B.2
