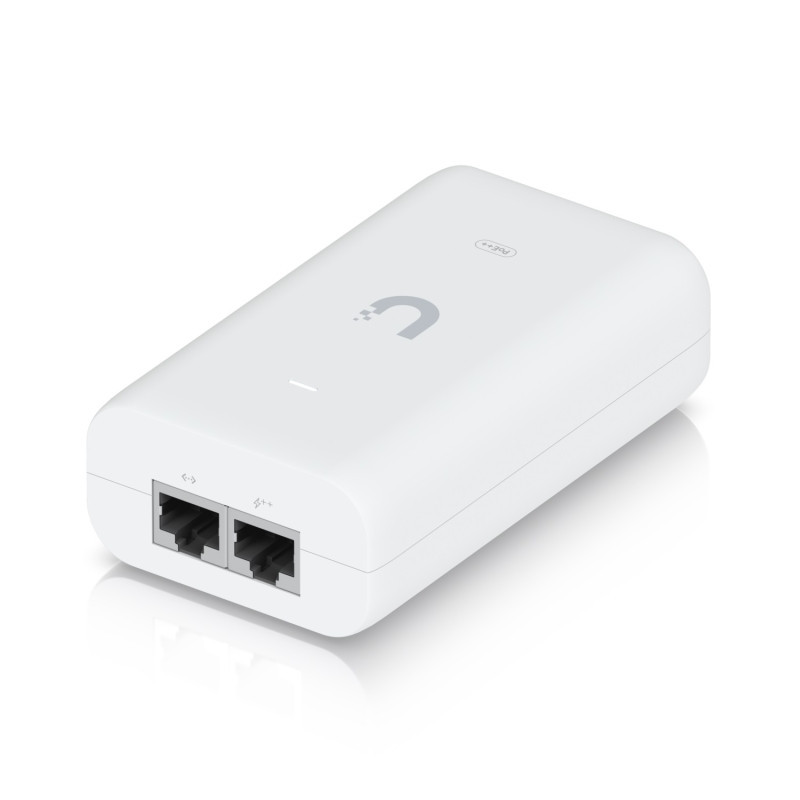

UBIQUITI PoE++ Injector
Product reference: 18-U-PoE++

UBIQUITI PoE++ Injector

  • −2%
UBIQUITI PoE++ Injector
UBIQUITI PoE++ Injector
UBIQUITI PoE++ Injector
UBIQUITI PoE++ Injector
UBIQUITI PoE++ Injector
UBIQUITI PoE++ Injector

UBIQUITI PoE++ Injector

Product reference: 18-U-PoE++

UBIQUITI PoE++ Injector

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
31,32 €
31,95 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

U-POE++ provides up to 60W of power over a single Ethernet cable. U-POE++ is designed to power high-power devices such as wireless access points, surveillance cameras and VoIP phones. It is also ideal for powering devices located in remote or hard-to-reach locations where a separate outlet installation may not be possible. If you're looking for a way to power high-power devices or want to simplify their installation, the U-POE++ adapter is a great option to consider.


Features:



  • Delivers up to 60W of PoE++

  • Compatible with UA Hub, G4 PTZ, and other PoE++ devices

  • Surge, peak pulse, and overcurrent protection

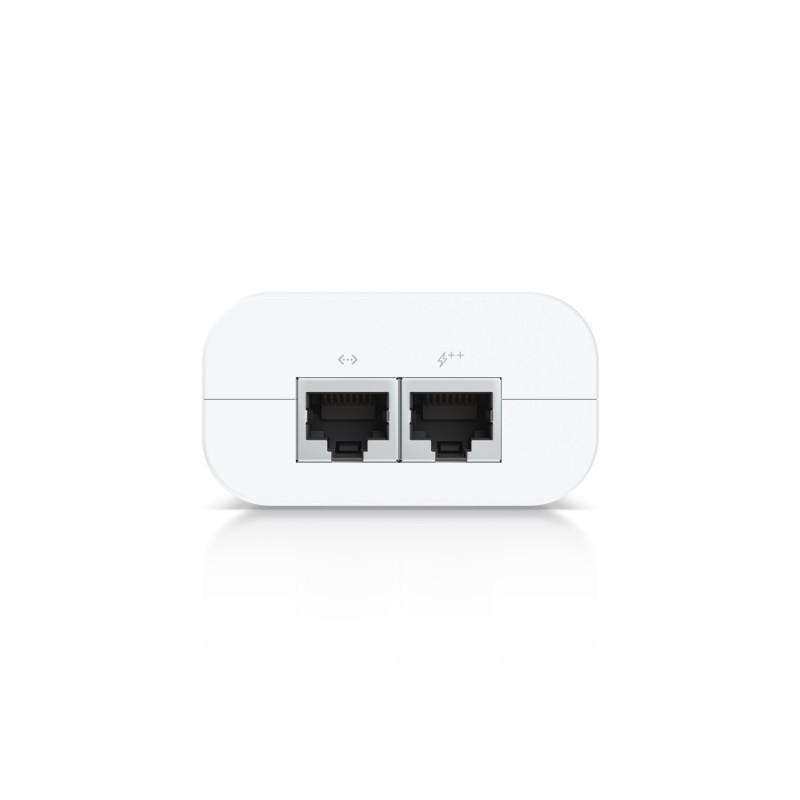

  • Contains RJ45 data input, AC cable with earth ground, and PoE++ output

  • LED indicator for status monitoring













































































































































ModelU-PoE++
Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3')
Weight210g (7.4oz)
Output voltage48V DC @ 1.25A
LAN activity indicatorNo
Gigabit LAN portYes
Remote reset capabilityNo
Reset buttonNo
Rated voltage100—240V AC @ 50/60Hz
Input current1.3A @ 120V AC 0.75A @ 230V AC
Inrush current<100A peak @ 120V AC <200A peak @ 230V AC
Efficiency85+%
Output ripple1% max.
Switching frequency65 kHz
Line regulation≤ 1%
Load regulation≤ 3%
2-pair poweringNo
4-pair poweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

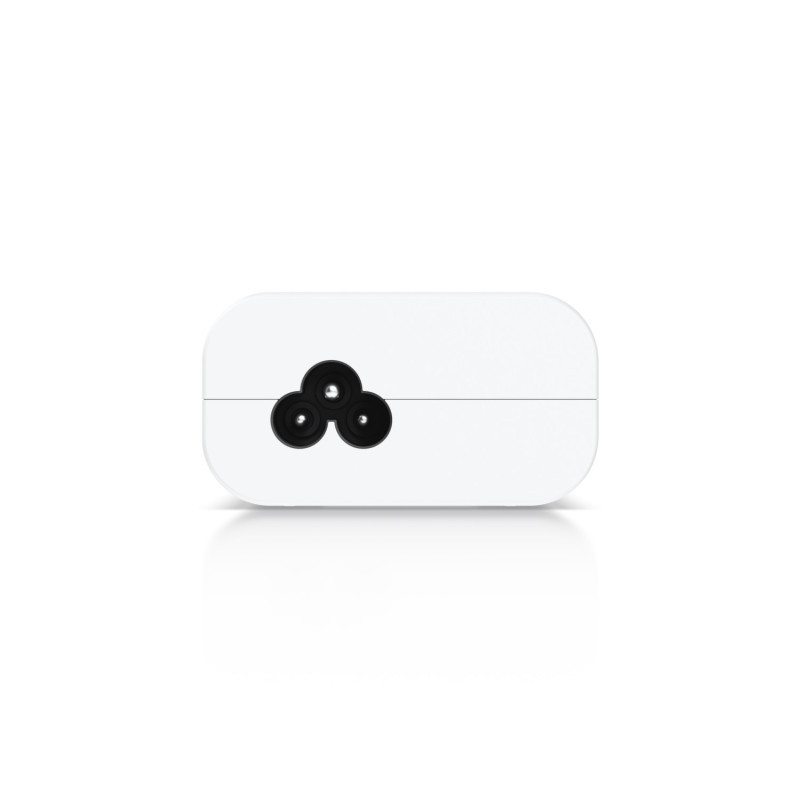

AC connectorIEC-320 C6
Data In / PoERJ45 shielded socket
Surge protectionDifference and common mode
Clamping protection11V data, 60V power
Max. surge discharge1500A (8/20 μs) power
Peak pulse current36A (10/1000 μs) date
Shunt capacitance<5 pF date
Response time<1ns
Power methodUniversal AC input, 100-240V AC, 50/60 Hz
Power supplyAC/DC
Supported voltage range100—240V AC
Max. PoE+ wattage per port by PSE60W
Ambient operating temperature0 to 40°C (32 to 104°F)
Storage temperature-30 to 70°C (-22 to 158°F)
Ambient operating humidity10 to 95% non-condensing
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
