UBIQUITI PoE++ injektorius
Prekės kodas: 18-U-PoE++

UBIQUITI PoE++ injektorius


  • −2%
UBIQUITI PoE++ injektorius
UBIQUITI PoE++ injektorius
UBIQUITI PoE++ injektorius
UBIQUITI PoE++ injektorius
UBIQUITI PoE++ injektorius
UBIQUITI PoE++ injektorius

UBIQUITI PoE++ injektorius

Prekės kodas: 18-U-PoE++

UBIQUITI PoE++ injektorius


Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
31,32 €
31,95 €
Prekė sandelyje

Garantija
12 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
Netaikoma

U-POE++ provides up to 60W of power over a single Ethernet cable. U-POE++ is designed to power high-power devices such as wireless access points, surveillance cameras and VoIP phones. It is also ideal for powering devices located in remote or hard-to-reach locations where a separate outlet installation may not be possible. If you're looking for a way to power high-power devices or want to simplify their installation, the U-POE++ adapter is a great option to consider.


Features:



  • Delivers up to 60W of PoE++

  • Compatible with UA Hub, G4 PTZ, and other PoE++ devices

  • Surge, peak pulse, and overcurrent protection

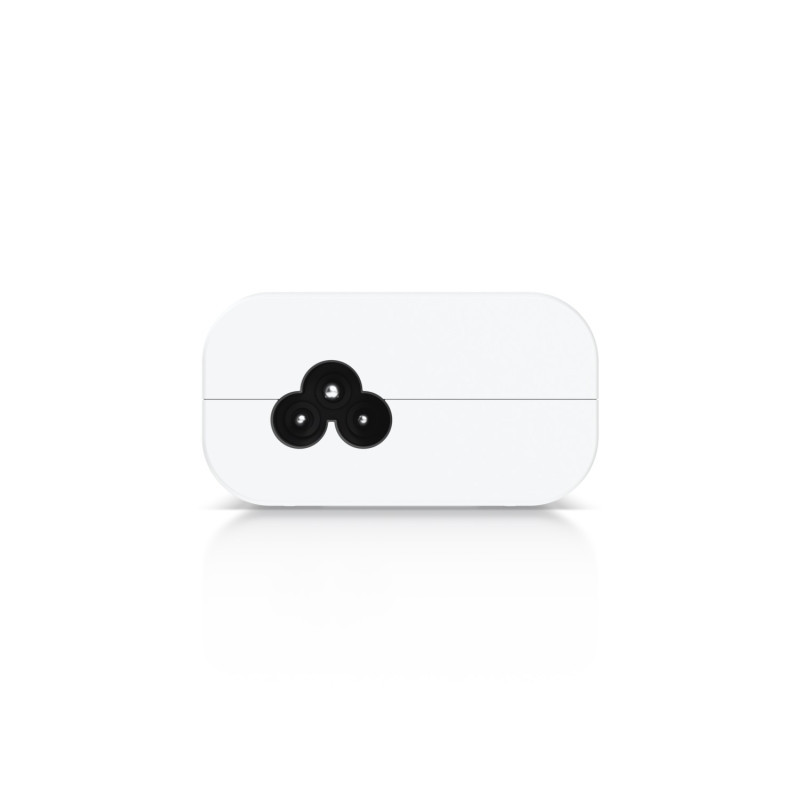

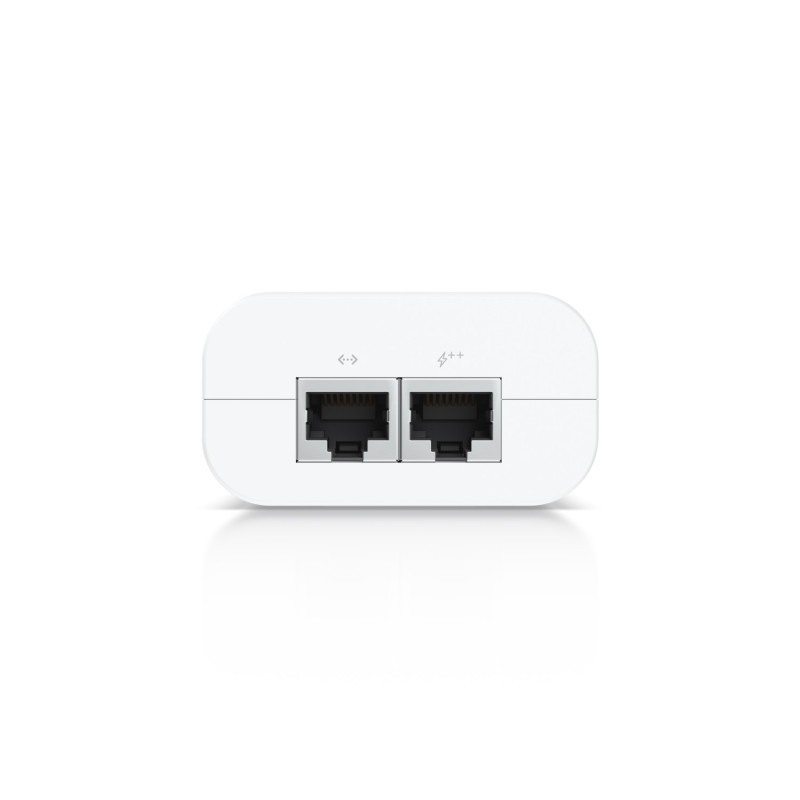

  • Contains RJ45 data input, AC cable with earth ground, and PoE++ output

  • LED indicator for status monitoring













































































































































ModelU-PoE++
Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3')
Weight210 g (7.4 oz)
Output voltage48V DC @ 1.25A
LAN activity indicatorNo
Gigabit LAN portYes
Remote reset capabilityNo
Reset buttonNo
Rated voltage100—240V AC @ 50/60Hz
Input current1.3A @ 120V AC

0.75A @ 230V AC
Inrush current<100A peak @ 120V AC

<200A peak @ 230V AC
Efficiency85+%
Output ripple1% max.
Switching frequency65 kHz
Line regulation≤ 1%
Load regulation≤ 3%
2-pair poweringNo
4-pair poweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connectorIEC-320 C6
Data In / PoERJ45 shielded socket
Surge protectionDifference and common mode
Clamping protection11V data, 60V power
Max. surge discharge1500A (8/20 μs) power
Peak pulse current36A (10/1000 μs) data
Shunt capacitance<5 pF data
Response time<1 ns
Power methodUniversal AC input, 100—240V AC, 50/60 Hz
Power supplyAC/DC
Supported voltage range100—240V AC
Max. PoE+ wattage per port by PSE60W
Ambient operating temperature0 to 40° C (32 to 104° F)
Storage temperature-30 to 70°C (-22 to 158° F)
Ambient operating humidity10 to 95% noncondensing
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
