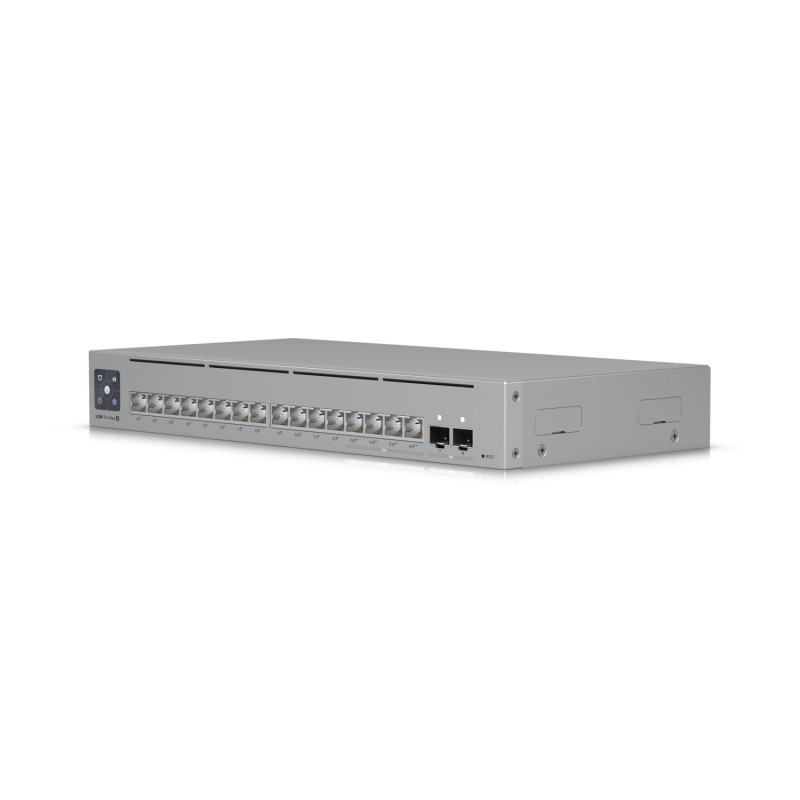

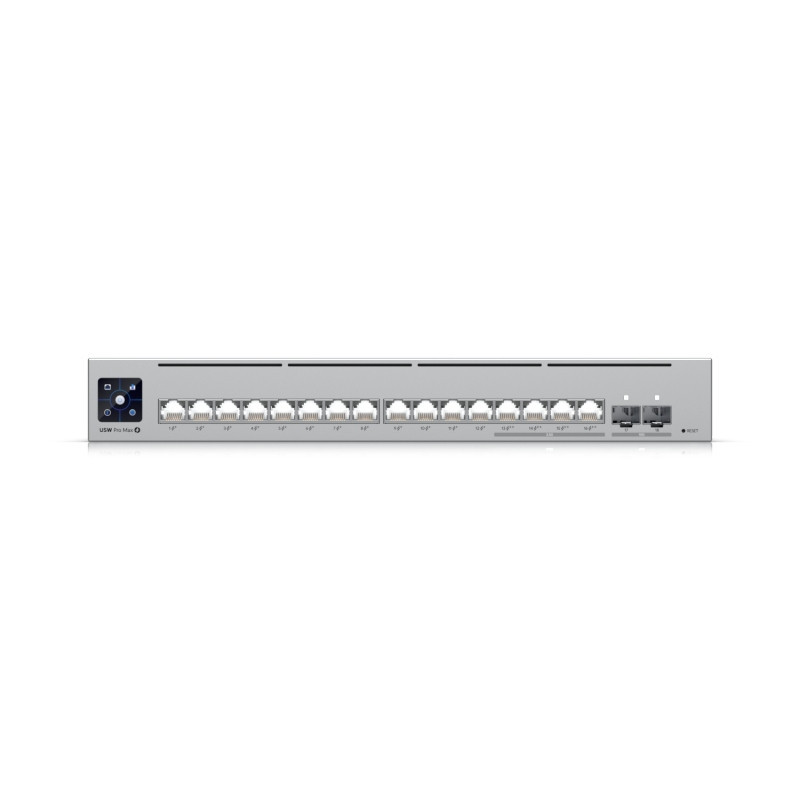

UBIQUITI 16 Ports Gigabit PoE Switch Pro Max 16 PoE

Performance and FlexibilityThe Ubiquiti Switch Pro Max 16 PoE is a powerful and versatile Layer 3 Etherlighting™ switch designed for demanding networks. This feature-packed device delivers high performance, flexible connectivity options, and advanced management capabilities, making it ideal for businesses, data centers, and prosumers seeking a reliable and scalable networking solution. Experience exceptional data transfer rates with a total non-blocking throughput of 42 Gbps and a switching capacity of 84 Gbps. This ensures smooth and efficient network operation even under heavy traffic loads. Equipped with a powerful quad-core processor, the Switch Pro Max 16 PoE effortlessly handles complex network tasks, routing, and security features. Take advantage of a variety of connection options to suit your network needs. The switch features four 2.5 Gigabit Ethernet ports for high-speed connections to compatible devices; twelve Gigabit Ethernet ports for versatile network connectivity and two SFP+ ports for fiber optic connections, ideal for extending your network over longer distances. The Etherlighting™ technology integrates LEDs into each RJ45 port. These LEDs display vital information such as port location, speed/link status, and native VLAN/network, providing a clear visual representation of your network activity.

Power Your Devices with PoE++The switch offers a total PoE power budget of 180W, allowing you to power multiple devices simultaneously. You can also configure PoE power settings for individual ports for optimized power usage. 12 of the Gigabit Ethernet ports support PoE++ standards. This allows the switch to deliver up to 60W of power per port, powering a wide range of compatible devices like IP cameras, VoIP phones, and wireless access points. This eliminates the need for separate power supplies, simplifying deployment and reducing cabling clutter.

Easy Deployment and UseBuilt with high-quality components and a robust design, the Switch Pro Max 16 PoE is built to withstand demanding network environments. It operates efficiently in a wide temperature range, ensuring reliable performance. The switch features a compact and sleek design with multiple mounting options for desktop, wall, or rack installations, adapting to various deployment scenarios. Switch Pro Max 16 PoE operates silently without a fan, making it ideal for noise-sensitive environments like offices or conference rooms.

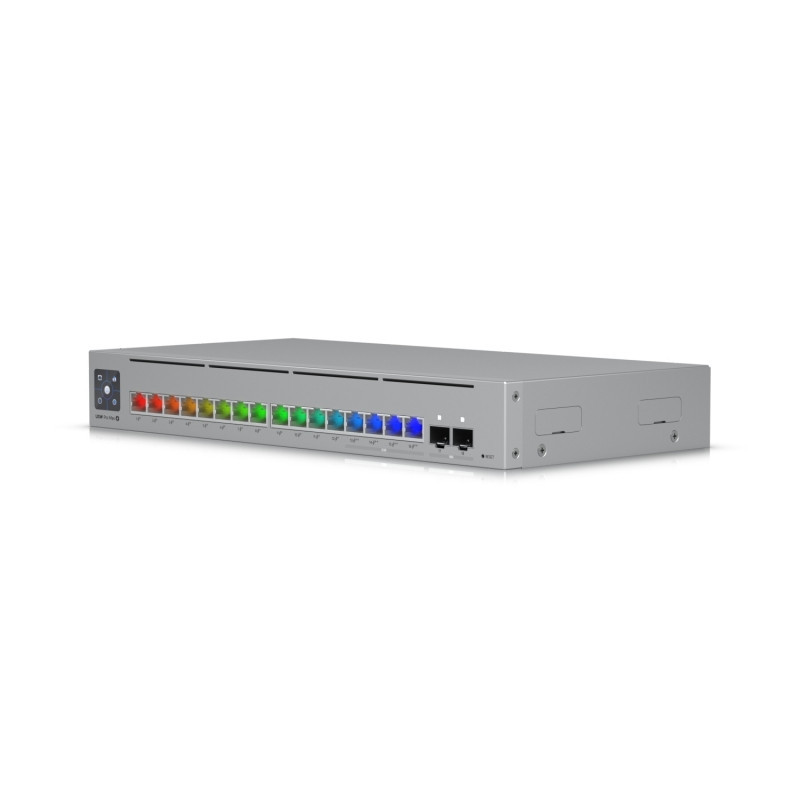

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

- (4) 2.5GbE PoE++ ports

- (12) GbE PoE+ ports

- (2) 10G SFP+ ports

- 180W total PoE availability

Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7') Port Layout: 1 GbE RJ45 - 12 (All PoE+) 2.5 GbE RJ45 - 4 (All PoE++) 10G SFP+ - 2 Max. PoE Output: Up to PoE++ Total PoE Availability: 180W Layer 3: Yes Form Factor: Rack mount (1U), desktop, wall Etherlighting™: Yes

PerformanceSwitching Capacity: 84 Gbps Total Non-Blocking Throughput: 42 Gbps Forwarding Rate: 62 Mpps Supported VLANs: 1,000 MAC Address Table Size: 16,000 L3 Table Size: ARP Entries: 6,000 IPv4 Routes: 512 Packet Buffer Size: 1.5 MB

Layer 3 FeaturesDHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks)

Layer 2 FeaturesLACP Port Aggregation STP RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs Device Isolation DHCP Snooping Guarding Egress Rate Limit Flow Control Storm Control Multicast Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection

HardwarePoE Ports: PoE+: 12 PoE++: 4 Max. PoE Wattage per Port by PSE: PoE: 15.4W PoE+: 32W PoE++: 64W Max. Power Consumption: 25W (Excluding PoE Output) 210W (Including PoE Output) Power Method: AC Adapter Power Input Method: AC input Power Supply: AC/DC, external, 210W Supported Voltage Range: 50—54V DC Management: Ethernet, AR Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr Weight: 2.1 kg (4.6 lb) Enclosure Material: SGCC steel LCM Display: 1.3' touchscreen Ambient Operating Temperature: -5 to 40° C (23 to 104° F) Ambient Operating Humidity: 10 to 90% noncondensing Certifications: CE, FCC, IC Etherlighting™: Ethernet - Yes SFP+ - Yes
