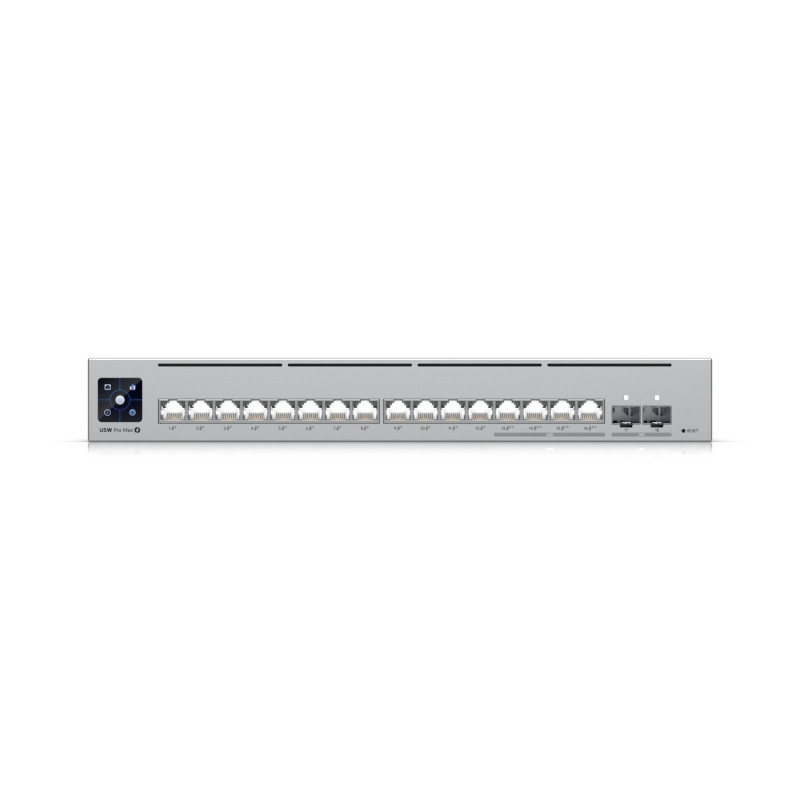

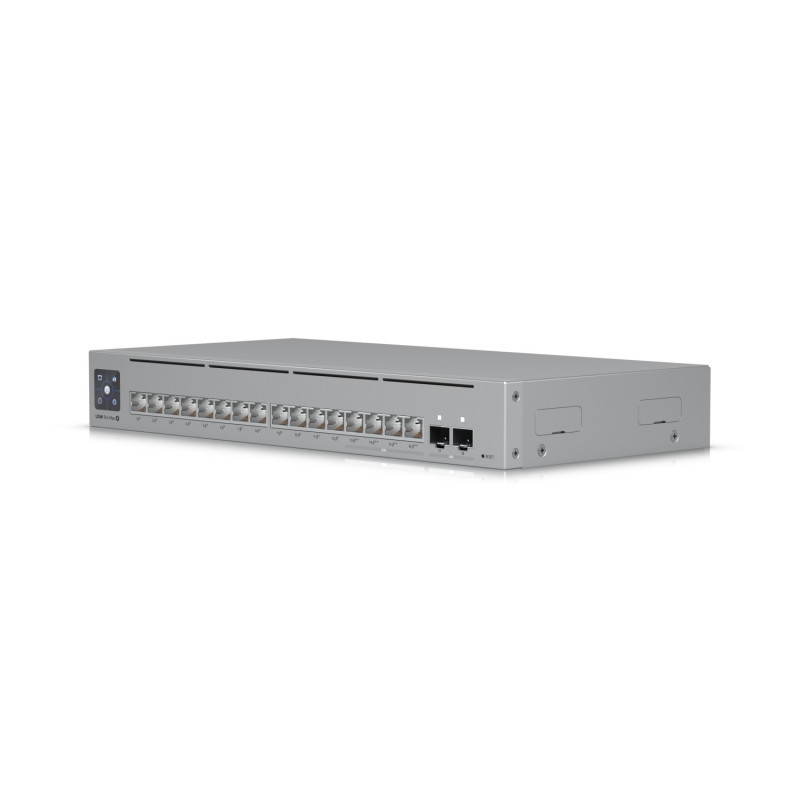

UBIQUITI 16 prievadų gigabito PoE komutatorius „Pro Max 16 PoE“

Performance and FlexibilityThe Ubiquiti Switch Pro Max 16 PoE is a powerful and versatile Layer 3 Etherlighting™ switch designed for demanding networks. This feature-packed device delivers high performance, flexible connectivity options, and advanced management capabilities, making it ideal for businesses, data centers, and prosumers seeking a reliable and scalable networking solution. Experience exceptional data transfer rates with a total non-blocking throughput of 42 Gbps and a switching capacity of 84 Gbps. This ensures smooth and efficient network operation even under heavy traffic loads.

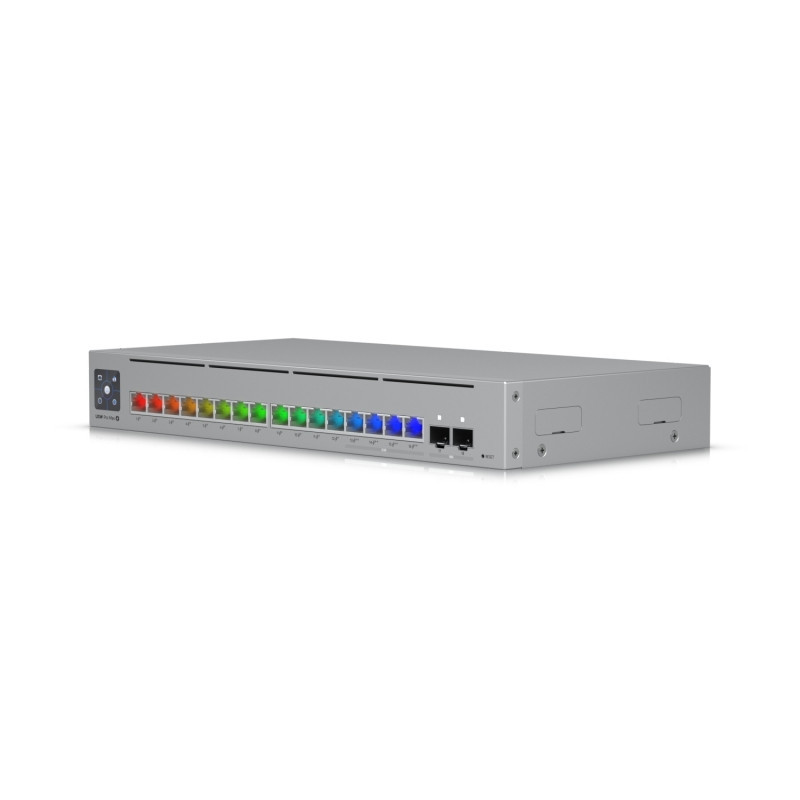

Equipped with a powerful quad-core processor, the Switch Pro Max 16 PoE effortlessly handles complex network tasks, routing, and security features. Take advantage of a variety of connection options to suit your network needs. The switch features four 2.5 Gigabit Ethernet ports for high-speed connections to compatible devices; twelve Gigabit Ethernet ports for versatile network connectivity and two SFP+ ports for fiber optic connections, ideal for extending your network over longer distances. The Etherlighting™ technology integrates LEDs into each RJ45 port. These LEDs display vital information such as port location, speed/link status, and native VLAN/network, providing a clear visual representation of your network activity.

Power Your Devices with PoE++The switch offers a total PoE power budget of 180W, allowing you to power multiple devices simultaneously. You can also configure PoE power settings for individual ports for optimized power usage. 12 of the Gigabit Ethernet ports support PoE++ standards. This allows the switch to deliver up to 60W of power per port, powering a wide range of compatible devices like IP cameras, VoIP phones, and wireless access points. This eliminates the need for separate power supplies, simplifying deployment and reducing cabling clutter.

Easy Deployment and UseBuilt with high-quality components and a robust design, the Switch Pro Max 16 PoE is built to withstand demanding network environments. It operates efficiently in a wide temperature range, ensuring reliable performance. The switch features a compact and sleek design with multiple mounting options for desktop, wall, or rack installations, adapting to various deployment scenarios. Switch Pro Max 16 PoE operates silently without a fan, making it ideal for noise-sensitive environments like offices or conference rooms.

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

- (4) 2.5 GbE PoE++ ports

- (12) GbE PoE + ports

- (2) 10G SFP+ ports

- 180W total PoE availability

Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7')

Port Layout:

1 GbE RJ45 - 12 (All PoE+)

2.5 GbE RJ45 - 4 (All PoE++)

10G SFP+ - 2

Max. PoE Output: Up to PoE++

Total PoE Availability: 180W

Layer 3: Yes

Form Factor: Rack mount (1U), desktop, wall

Etherlighting™: Yes

PerformanceSwitching Capacity: 84 Gbps

Total Non-Blocking Throughput: 42 Gbps

Forwarding Rate: 62 Mpps

Supported VLANs: 1,000

MAC Address Table Size: 16,000

L3 Table Size:

ARP Entries: 6,000

IPv4 Routes: 512

Packet Buffer Size: 1.5 MB

Layer 3 FeaturesDHCP Server (Local Networks)

DHCP Relay

Inter-VLAN Routing (Local Networks)

Static Routing (Local Networks)

Layer 2 FeaturesLACP Port Aggregation

STP RSTP

QoS (DSCP)

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

IGMP Snooping

802.1X Control

MAC-Based ACLs Device Isolation

DHCP Snooping Guarding

Egress Rate Limit

Flow Control

Storm Control

Multicast Broadcast Rate Limiting

MAC Address Blocking

IP-Based ACLs Network Isolation

MAC-Based Port Restriction

Port Isolation

Port Mirroring

Jumbo Frames

LLDP-MED

Voice VLAN

Loop Protection

HardwarePoE Ports:

PoE+: 12

PoE++: 4

Max. PoE Wattage per Port by PSE:

PoE: 15.4W

PoE+: 32W

PoE++: 64W

Max. Power Consumption:

25W (Excluding PoE Output)

210W (Including PoE Output)

Power Method: AC Adapter

Power Input Method: AC input

Power Supply: AC/DC, external, 210W

Supported Voltage Range: 50—54V DC

Management: Ethernet, AR

Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr

Weight: 2.1 kg (4.6 lb)

Enclosure Material: SGCC steel

LCM Display:1.3' touchscreen

Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

Ambient Operating Humidity:10 to 90% noncondensing

Certifications: CE, FCC, IC

Etherlighting™:

Ethernet - Yes

SFP+ - Yes
