Toyota rear view camera interface 2014-

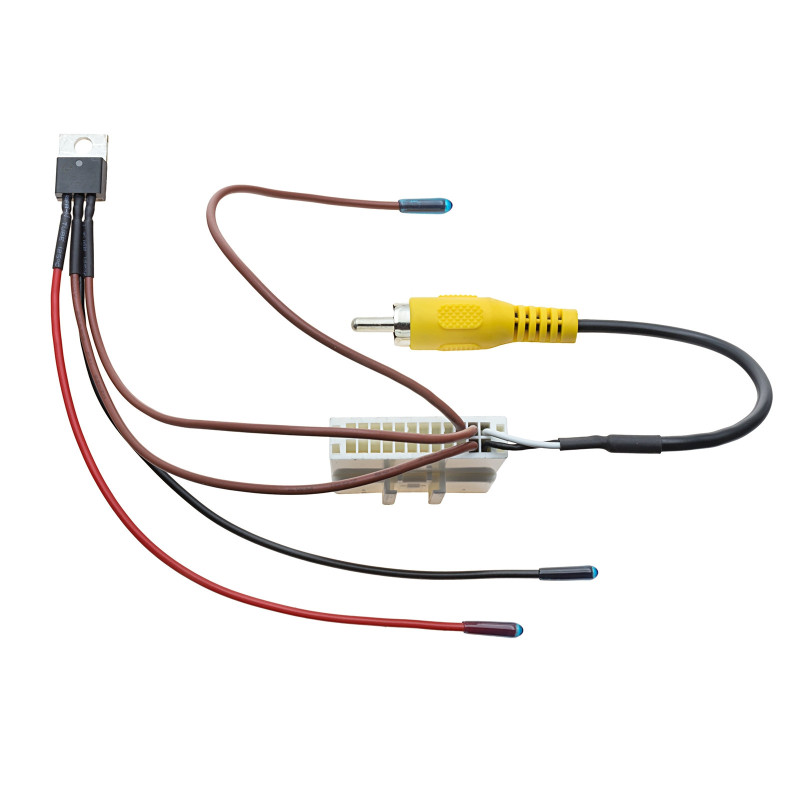

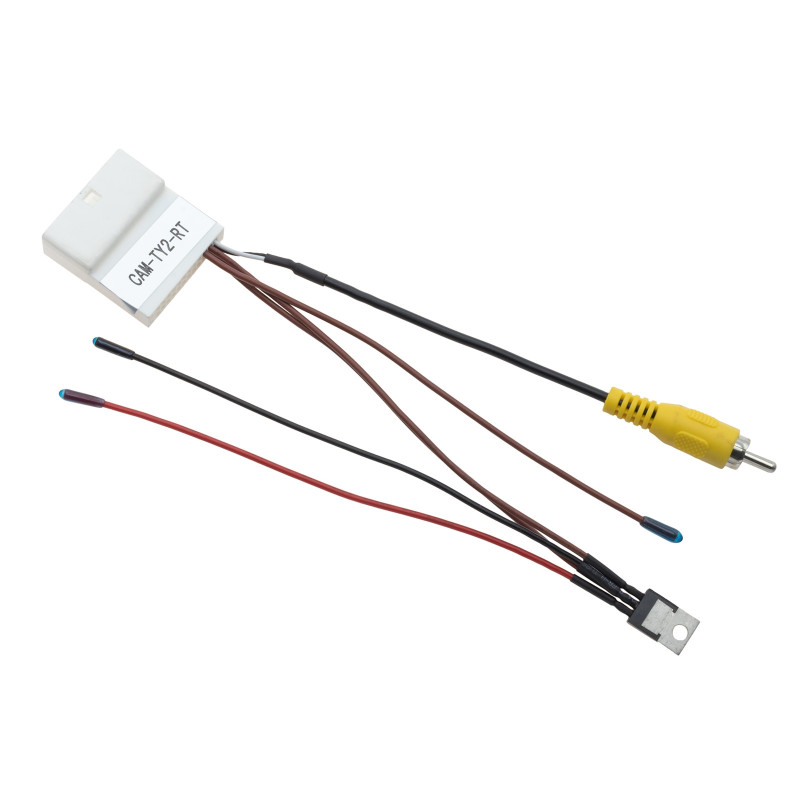

OEM Toyota Rear View Camera Adapter → RCA

The adapter allows you to retain your factory Toyota reversing camera after replacing your radio with a multimedia device equipped with an RCA (Cinch) camera input.

The device converts the signal from the original camera to a standard RCA connector and provides the 6V power required by the factory camera. Depending on the car model, the adapter can also generate a +12V reverse gear signal, or this signal can be connected directly from the vehicle's wiring.

Key features

• Allows you to retain the factory rear view camera after replacing the radio.
• Converts OEM signal to standard RCA input.
• Built-in 6V camera power supply.
• Reverse gear signal output +12V.
• No need to modify the factory installation.

Technical data

Connectors:

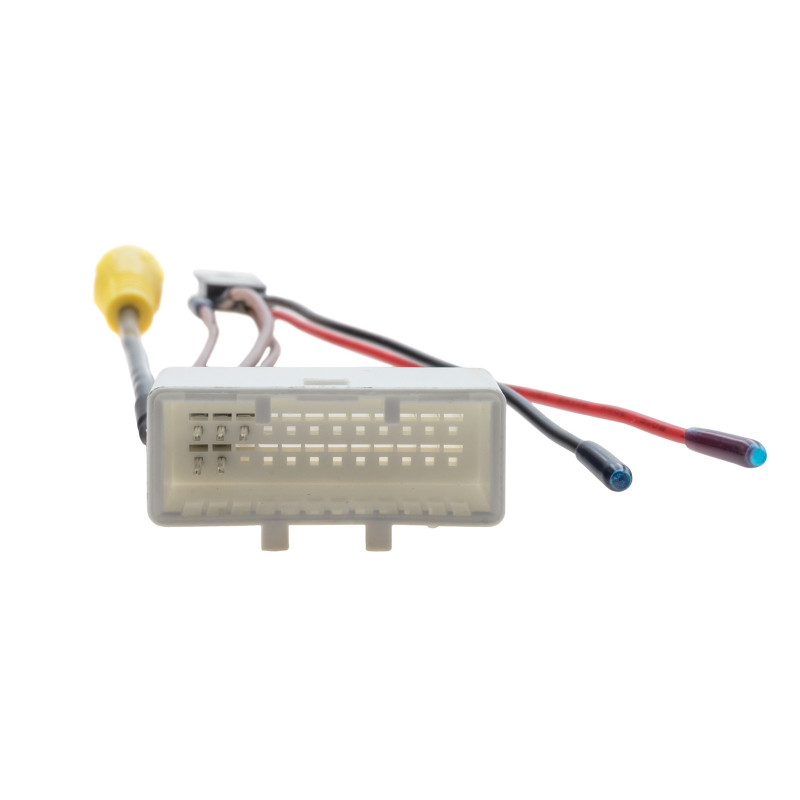

• 24-pin Toyota
• RCA output (yellow, male) for radio camera input

Wires:

• Red - +12 V after ignition switch (ACC, terminal 15, fused)
• Black - ground (GND, terminal 31)
• Brown - Reverse signal output +12V

OEM camera supply voltage: 6 V

OEM camera pin assignment:

• Pin 11 - +6V
• Pin 23 - ground
• Pin 12 - Video +
• Pin 24 - Video -

Before installation, it is recommended to check the correct pin assignment by measuring the voltage on the factory radio.

Important information

• Designed exclusively for vehicles equipped with a factory reversing camera.
• Not compatible with factory 360° camera systems.
• Compatibility may be limited on some models with dynamic guides.
• After installation in many multimedia stations, the reversing camera function must be activated in the device menu.

ApplicationToyota

• Auris (E15) 03/2010-01/2013
• Avensis (T27) 01/2012-06/2015
• Camry (XV50) 2014-2019
• Corolla (E170) 04/2014-12/2016
• Corolla (E170) 12/2014-12/2018
• GT86 (ZN) 01/2017-06/2020
• Highlander 2014-2020
• Hilux (N25) 12/2011-08/2016
• Hilux (AN120/AN130) 11/2016-09/2020
• Land Cruiser Prado (J15) 10/2013-12/2017
• Land Cruiser Prado (J15) 01/2018-07/2019*
• Prius (ZVW30/ZVW35) 04/2012-02/2016
• Prius+ 06/2012-01/2015
• RAV4 (XA30/XA40) 04/2013-01/2016
• RAV4 (XA40) 01/2016-12/2018**
• Sequoia 2014-2017
• Sienna 2014-2020
• Tacoma 2014-2022
• Tundra 2014-2021
• Verso (AR2) 04/2009-01/2013
• Verso (AR2) 04/2013-06/2018
• Yaris (XP13) 11/2011-08/2014
• Yaris (XP13) 09/2014-03/2017
• Yaris (XP13) 04/2017-08/2020

Comments

*Vehicles equipped with a factory 360° camera system are not supported.

** For selected versions with a 360° camera system, a dedicated 10-pin/6-pin/28-pin/24-pin adapter (part number 42STY019) must be used.
