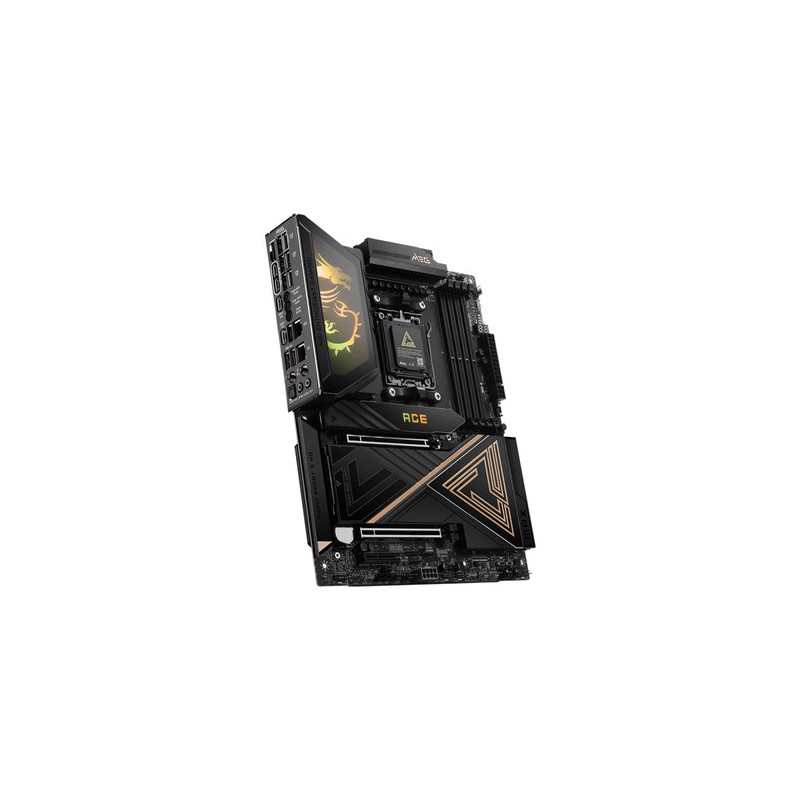

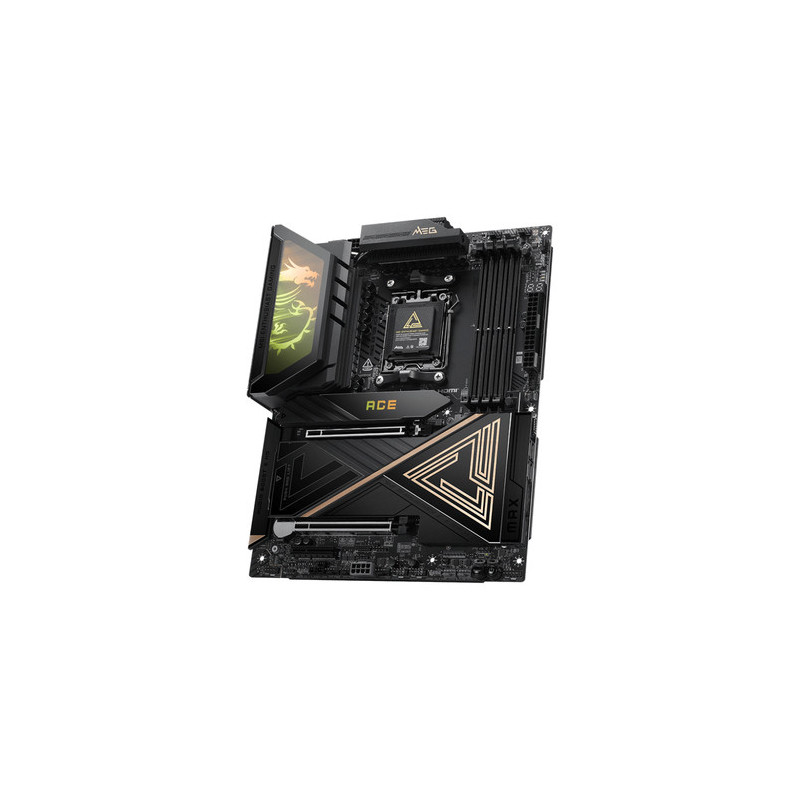

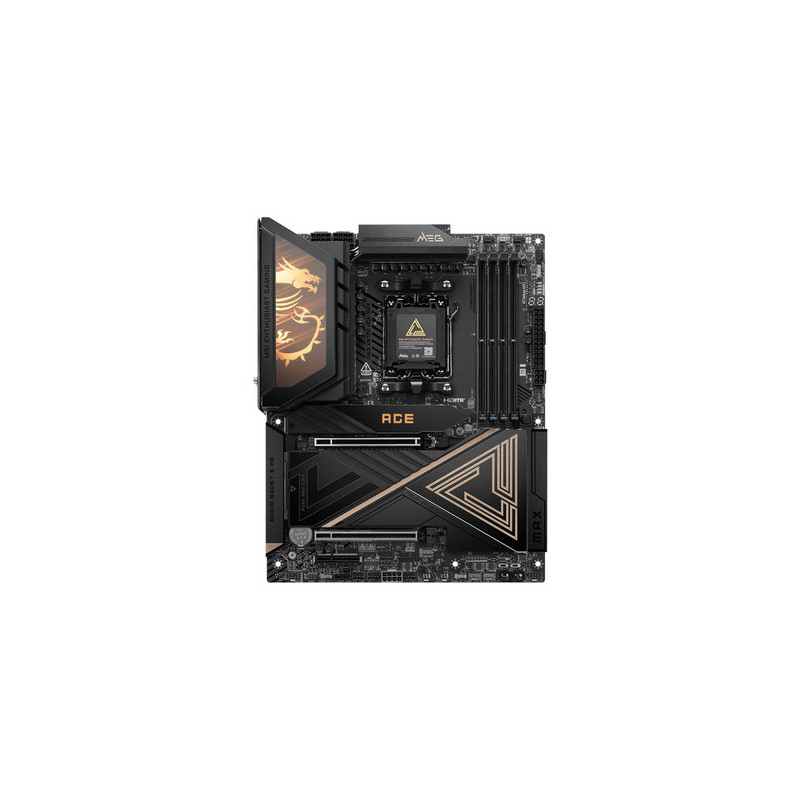

Mātesplate MSI MEG X870E ACE MAX

* Frozr Guard_
* EZ DIY
* EZ OC
* Audio Boost 5 HD
* Mystic Light
Chipset: AMD X870E
Dimensional format: ATX (304,8x243,84mm)
Processor support: AMD Ryzen™ series 9000/8000/7000
Processor socket: AM5
Remember:
* 4x DDR5 UDIMM, maximum memory capacity 256GB, memory support 9000-5600 (OC) MT/s/5600-4800 (JEDEC) MT/s
* max. frequency přetaktování:
• 1DPC 1R speed up to 8400+ MT/s
• 1DPC 2R speed up to 6400+ MT/s
• 2DPC 1R speed up to 6400+ MT/s
• 2DPC 2R speed up to 6400+ MT/s
* support AMD POR Speed a JEDEC Speed
* support for prétaktování memory a AMD EXPO™
* support for Non-ECC, without buffering
* support for CUDIMM, only Clock Driver bypass mode
* dvoukanálová architektura sámás
Graphic outputs:
(Specific graphics may vary depending on the installed CPU.)
* 1x for HDMI™ 2.1 port FRL, maximum resolution 8K 60Hz
* 2x DisplayPort USB4® type C, support for DisplayPort 1.4 s HBR3 via USB type C, maximum resolution 4K 120Hz
Sound card: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA, 7.1kanálový sound, S/PDIF output support
Ethernet: 1x Marvell® AQC113CS 10Gbps LAN, 1x Realtek® 8126 5Gbps LAN
WLAN + Bluetooth: Wi-Fi 7 + Bluetooth® 5.4 (wireless module is pre-installed in slot M.2 Key-E)
Expansion slots: 2x PCI-E x16 + 1x PCI-E x4:
* PCI_E1 Gen PCIe 5.0 x16_
* PCI_E2 Gen PCIe 5.0 x8
* PCI_E3 Gen PCIe 5.0 x4
PCI_E1 a PCI_E2:
- support PCIe 5.0 x16/x0 (pro processor Ryzen™ 9000/7000)
- PCIe 4.0 support x8/x0 (pro processor Ryzen™ 8700/8600/8400)
- PCIe 4.0 support x4/x0 (pro processor Ryzen™ 8500/8300)
Storage space:
supports a total of 5 slots M.2 a 4 porty SATA 6Gb/s
* M.2_1 (CPU) supports up to PCIe 5.0 x4, podpora 22110/2260 zařízení
* M.2_2 (CPU) supports up to PCIe 5.0 x4, support 2280/2260 device
* M.2_3 (chipset) supports up to PCIe 4.0 x4, support 22440/2280 zazelícia
* M.2_4 (chipset) supports up to PCIe 4.0 x4, podpora 2280/2260 žálzení
* M.2_5 (chipset) supports up to PCIe 4.0 x4, podpora 2280 žálzení
* 4x port SATA 6Gb/s
RAID controller: podpora RAID 0/1/10 pro úložná želácije SATA a podpora RAID 0/1/(5)/10 pro úložná želácije M.2 NVMe
USB:
Zadní USB (total 13 ports)
* 2x USB 4.0 40Gb/s (typ C)
* 2x USB 3.2 Gen 2 10Gb/s (typ C)
* 9x USB 3.2 Gen 2 10Gb/s (typ A)
Přední USB (total 9 ports)
* 1x USB 20Gb/s (typ C)
* 4x USB 5Gb/s (typ A)
* 4x USB 2.0

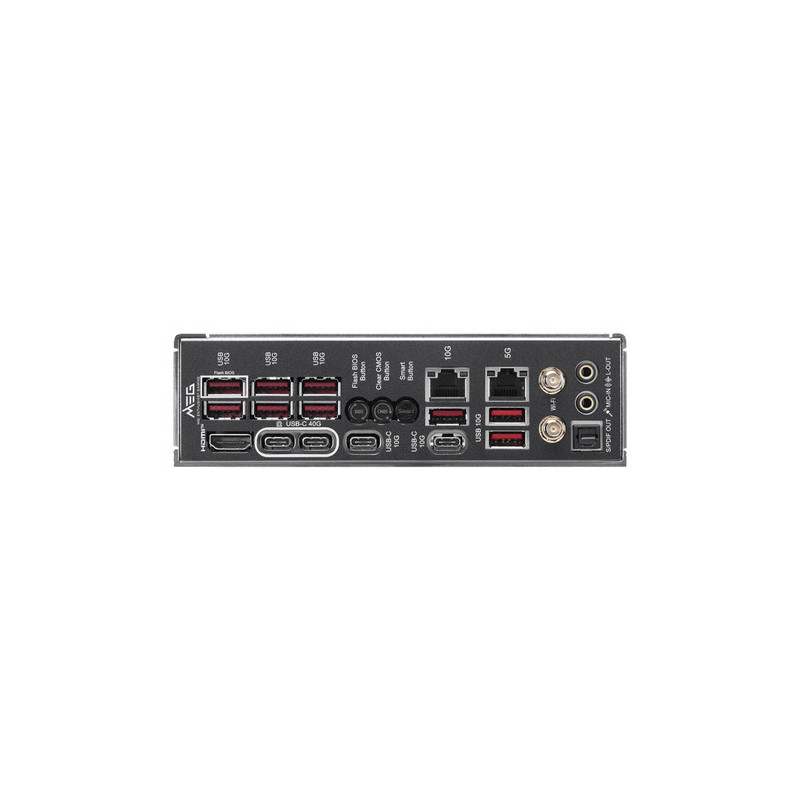

Ports on the rear panel:
* 2x USB 4.0 40Gb/s (typ C)
* 2x USB 3.2 Gen 2 10Gb/s (typ C)
* 9x USB 3.2 Gen 2 10Gb/s (typ A) red
* 1x HDMI™
* 1x RJ-45 5G LAN
* 1x RJ-45 10G LAN
* 1x Wi-Fi/Bluetooth
* 2x audio connector
* 1x S/PDIF out
* 1x button Flash BIOS
* 1x button Clear CMOS
* 1x button Smart
Internal ports:
Napajání
* 1x power connector (ATX_PWR)
* 2x power connector (CPU_PWR)
* 1x power connector (PCIE_PWR 8pin)
* 1x front connector type C for rapid charging (PD_PWR1)
Související s ventiladorem a chlanziem
* 1x fan CPU
* 2x combinable fan (Pump_Sys Fan)
* 5x system fan
Související s repořitóm
* 4x SATA 6Gb/s konektor
* 5x slot M.2 (M-Key)
USB
* 4x USB 2.0
* 4x USB 5Gb/s (typ A)
* 1x USB 20Gb/s (typ C)
Osvětlení LED_
* 3x addressable V2 RGB LED konektor (JARGB_V2)
* 1x RGB LED konektor (JRGB)
* 1x EZ Digi-Debug LED
* 4x EZ Debug LED
* 1x EZ Memory Detection LED
* 1x EZ LED Control switch
Ostatní
* 1x EZ Conn-header (JAF_2)
* 2x Front Panel (JFP)
* 1x Chassis Intrusion (JCI)
* 1x Water Flow connector
* 1x Front Audio (JAUD)
* 2x Thermal Sensor connector (T_SEN)
* 1x Tuning Controller connector (JDASH)
* 1x TPM pin header (support TPM 2.0)
* 2x Direct OC Jumper (JBCLK)
* V-check point
Accessories:
* 4x SATA 6Gb/s kabel
* 1 na 3 EZ Conn-kabel (V2)
* 1 na 3 ARGB Gen 2 prodlužovací kabel
* 2x Thermistor kabel
* EZ Front Panel kabel
* EZ Wi-Fi antenna
* 3x M.2 shruv
* USB Drive
* sada nálepek
* EZ M.2 Clip II Remover (klíč)
* uživatelská poudská
Link to the manufacturer's website: https://www.msi.com/Motherboard/MEG-X870E-ACE-MAX
