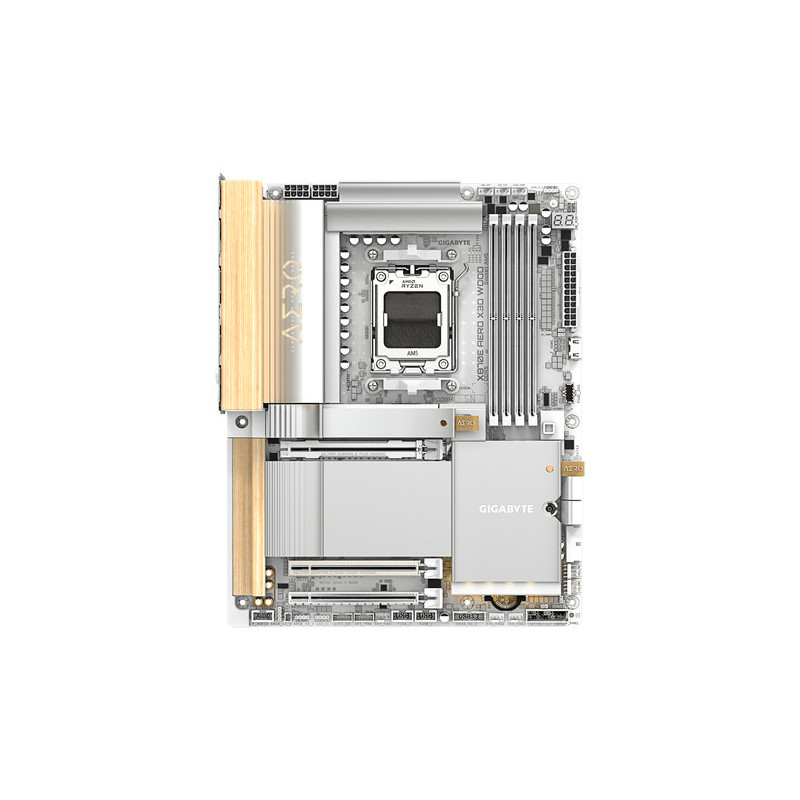

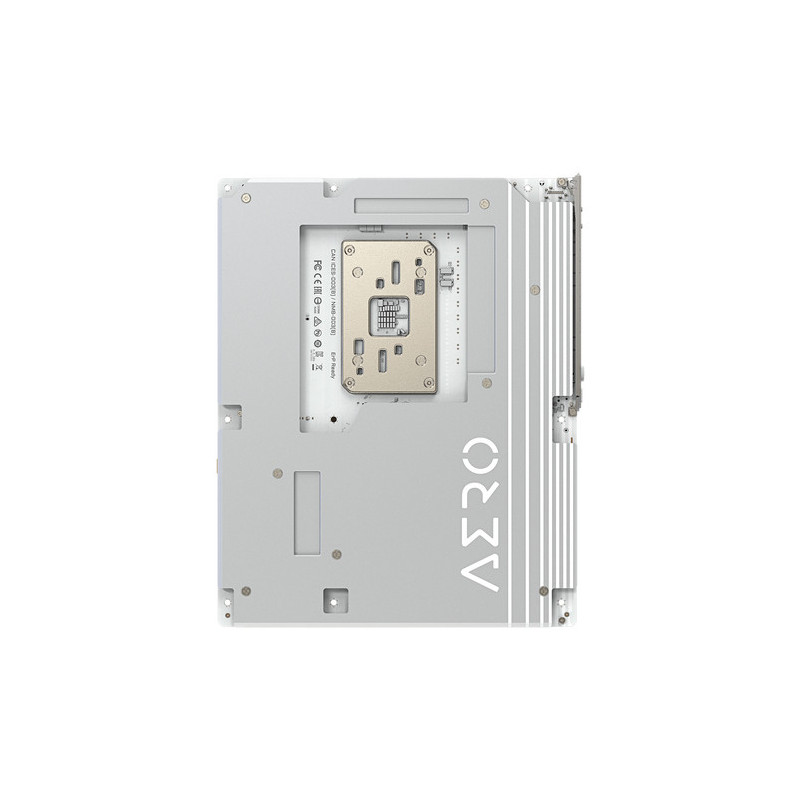

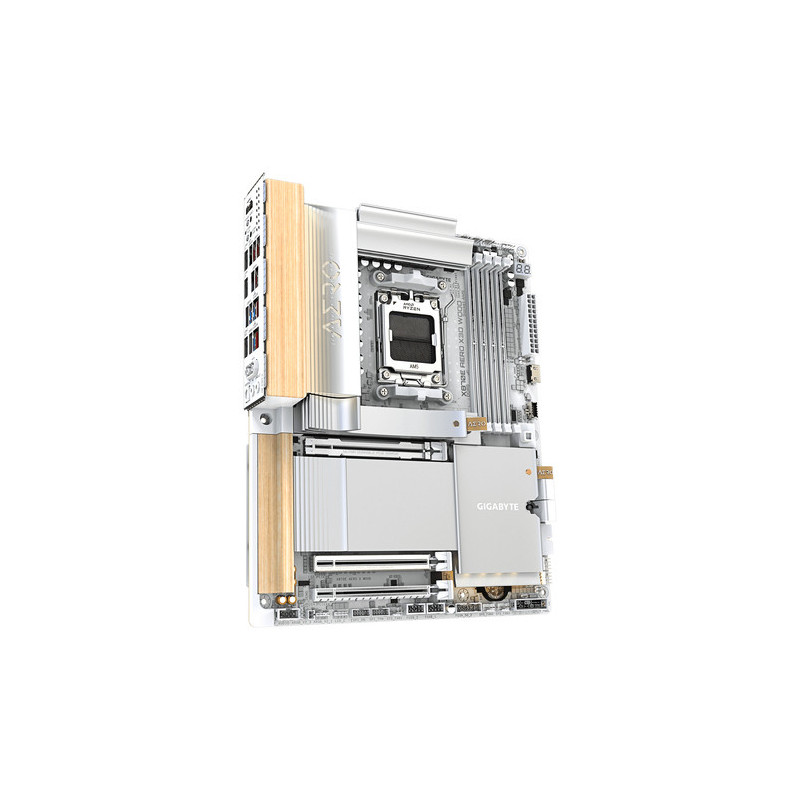

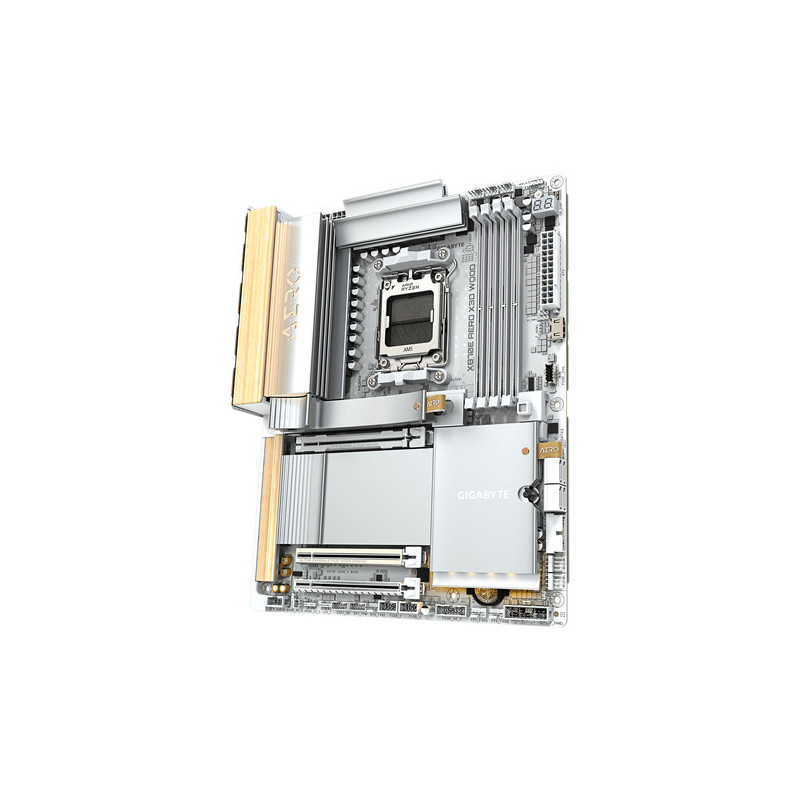

Mātesplate Gigabyte X870E AERO X3D WOOD

* X3D Turbo Mode 2.0
* Smart Fan6
* M.2 EZ-Flex_
* WIFI EZ-Plug
* M.2 EZ-Latch Click Plus
* PCIe UD Slot X
* DriverBIOS
Dimensional format: ATX (305x244mm)
Processor support: AMD Ryzen™ rady 7000/8000/9000
Reliable processor: AM5
Chipset: AMD X870E
Remember:
* 4x DIMM socket supporting up to 256GB, DDR5 9000(OC)/8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400MT/s memory modules
* dual-channel memory architecture
* support for non-ECC memory modules DIMM without buffering memory
* podpora pre AMD EXtended Profiles for Overclocking (AMD EXPO™) a memory profile Extreme Memory Profile (XMP)
Graphic outputs: graphic specifications may vary depending on CPU support
* 2x USB4® USB typ-C® support video output USB4 a DisplayPort maximum resolution 3840x2160@240 Hz
* 1x HDMI 2.1
* 1x HDMI 1.4 (predný port)
Sound card: codec Realtek® ALC1220 7.1 Surround Sound High Definition Audio, support S/PDIF
Ethernet: Realtek® 5GbE LAN (5 Gb/s/2,5 Gb/s/1 Gb/s/100 Mb/s)
WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738 + Bluetooth v5.4_
Expansion slots:
* 1x PCI Express x16 (PCIEX16)
* 1x PCI Express x16 (PCIEX8)
* 1x PCI Express x16, support for PCIe 4.0 x4 (PCIEX4)
RAID radic: support for RAID 0/1/10 for SATA + support for RAID 0/1/5 (only Ryzen rady 9000)/10 for storage devices NVMe SSD
Storage space:
in total supports 4 sloty M.2 a 4 porty SATA 6Gb/s
* 1x M.2 (M2A_CPU), integrated v CPU, socket 3, M key, typ 2580/2280 SSD
* 1x M.2 (M2B_CPU), integrated v CPU, socket 3, M key, typ 22110/2280 SSD
* 2x M.2 (M2C_SB, M2D_SB), integrated v chipset, socket 3, M key, typ 22110/2280 PCIe 4.0 x4/x2 SSD
* 4x port SATA 6Gb/s_
USB:
Zadné USB (11 ports in total)
* 2x USB4® USB typ C® (DisplayPort)
* 1x USB-C® USB 3.2 Gen 2x2
* 5x USB 3.2 Gen 2 typ A (červená)
* 3x USB 3.2 Gen 1
Predné USB (total 9 portov)
* 1x USB typ C® connector with support for USB 3.2 Gen 2x2
* 2x USB 3.2 Gen 1 header - support for additional 4 ports USB 3.2 Gen 1
* 2x USB 2.0/1.1 header - support for additional 4 ports USB 2.0/1.1
Ports on the rear panel:
* 1x button Q-Flash Plus
* 1x button Clear CMOS
* 1x button reset
* 1x power button
* 1x HDMI
* 2x USB4® USB typ C® (DisplayPort)
* 1x USB-C® USB 3.2 Gen 2x2
* 5x USB 3.2 Gen 2 typ A (červená)
* 3x USB 3.2 Gen 1
* 2x RJ-45_
* 2x anténny konektor (2T2R)
* 2x audio jack
* 1x optický Konektor S/PDIF Out
Internal ports:
Napájanie
* 1x 24pinový ATX main power supply connector
* 2x 8pinový ATX 12V napájací konektor
Súvisiace s ventiláriom a chladením
* 1x CPU fan header
* 1x CPU fan/water cooling pump header
* 4x system fan header
* 2x system fan/water cooling pump header
Súvisiace s úložiskom
* 4x M.2 slot (Key M)
* 4x SATA 6Gb/s port
USB
* 1x USB typ-C® header, supports USB 3.2 Gen 2x2
* 2x USB 3.2 Gen 1 header
* 2x USB 2.0/1.1 header
Ostatné
* 3x addressable RGB Gen2 LED strip header
* 1x RGB LED strip header
* 1x front panel header
* 1x front panel audio header
* 1x noise detection header
* 1x Trusted Platform Module header (iba pre modul GC-TPM2.0 SPI V2)
* 1x HDMI
* 1x reset jumper
* 1x Clear CMOS jumper
* 2x temperature sensor header
BIOS: 1x 512Mb flash, AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Link to the manufacturer's website: https://www.gigabyte.com/Motherboard/X870E-AERO-X3D-WOOD
