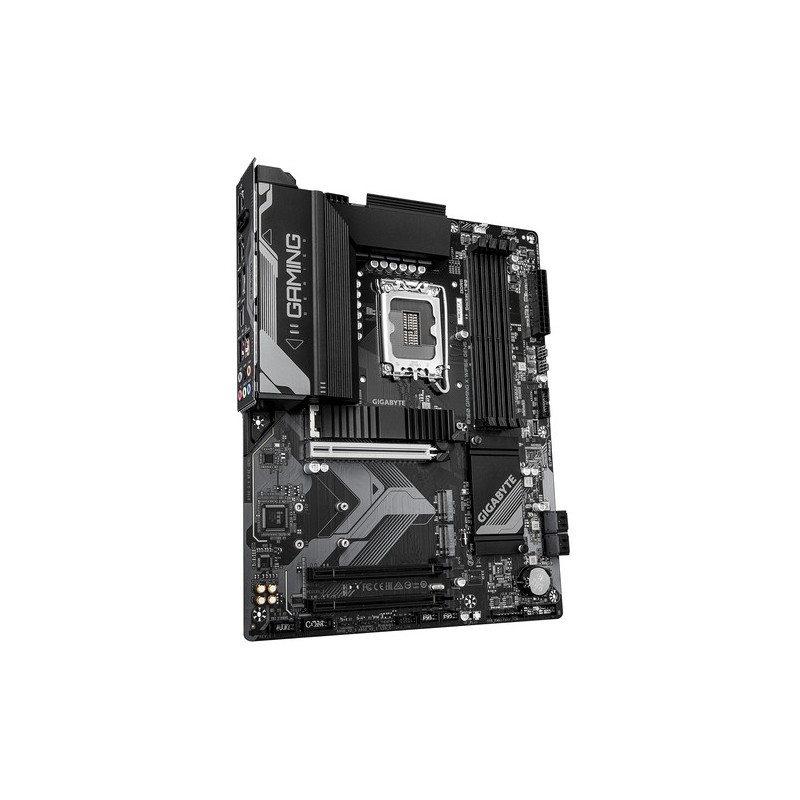

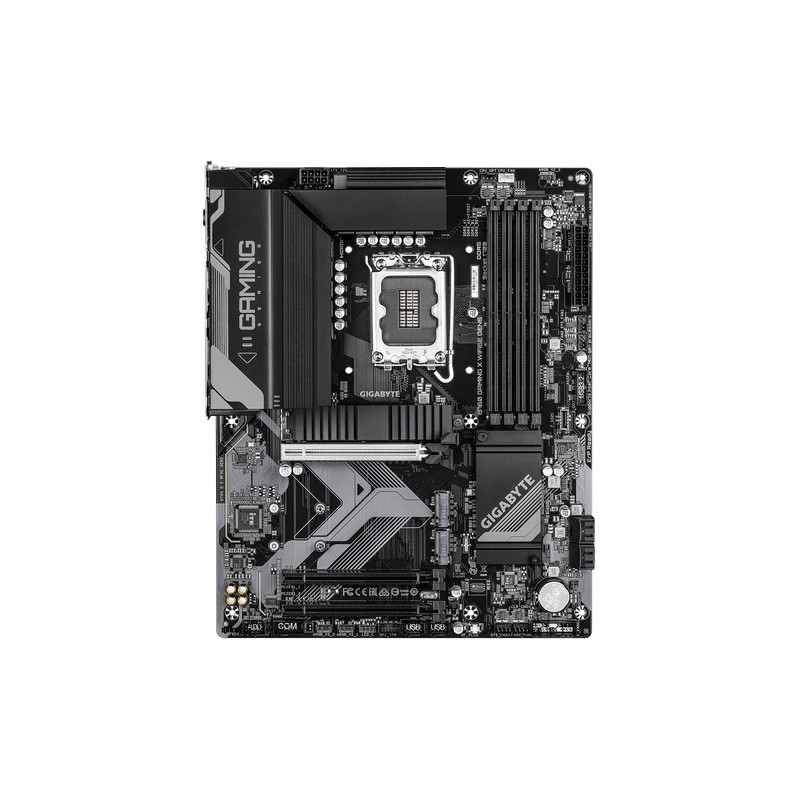

GIGABYTE B760 GAMING X WIFI6E GEN5 / LGA 1700 / ATX
Product reference:
3-4719331871673
GIGABYTE B760 GAMING X WIFI6E GEN5/LGA 1700/ATX
GIGABYTE B760 GAMING X WIFI6E GEN5 / LGA 1700 / ATX
Product reference:
3-4719331871673
GIGABYTE B760 GAMING X WIFI6E GEN5/LGA 1700/ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Technical details | |
|---|---|
| Warranty period | 3 years |
| Processor | |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel® Pentium® Gold, Intel Core 12th Gen, Intel Core i5 14th Gen, Intel Core i3 13th Gen, Intel® Celeron®, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel Core i3 14th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th gen |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Features | |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Water cooling, Voltage |
| Motherboard chipset | Intel B760 |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Memory | |
| Supported memory clock speeds | 7600, 6400, 6600, 6200, 6000, 7400, 5600, 7200 MHz, 4000, 4800, 7000, 6800, 5200, 5800, 5400 |
| Maximum internal memory | 256GB |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory clock speed (max) | 5600MHz |
| Supported memory types | DDR5-SDRAM |
| ECC compatibility | ECC Non-ECC |
| Maximum internal memory per slot | 64GB |
| Memory channels | Dual channel |
| Weight dimensions | |
| Depth | 244 mm |
| Height | 35mm |
| Width | 305mm |
| Network | |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth version | 5.3 |
| Wi-Fi standard | 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 2 |
| S/PDIF out connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 4 |
| Number of chassis fan connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| BIOS | |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Packaging data | |
| Package width | 335 mm |
| Package height | 80mm |
| Package weight | 1.8 kg |
| Package depth | 270mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Antenna included | Yes |
| Screws included | Yes |
| Batteries included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD SSD |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 10, 5, 1 |
| Number of storage drives supported | 7 |

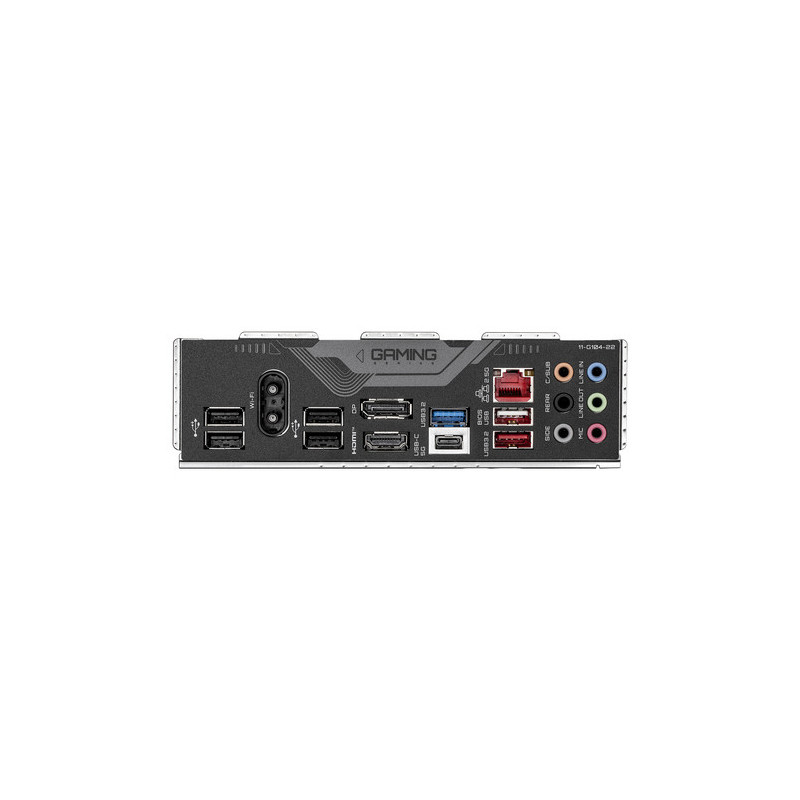

| Rear panel I/O port | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C port quantity | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| USB 2.0 ports quantity | 5 |
| DisplayPort version | 1.2 |
| HDMI version | 2.1 |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 1 |
| DisplayPort quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 1 |
| HDMI port quantity | 1 |
| Ethernet LAN (RJ-45) port | 1 |
| Expansion slot | |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slot | 2 |
| Battery | |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Other features | |
| Weight | 1.61 kg |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
