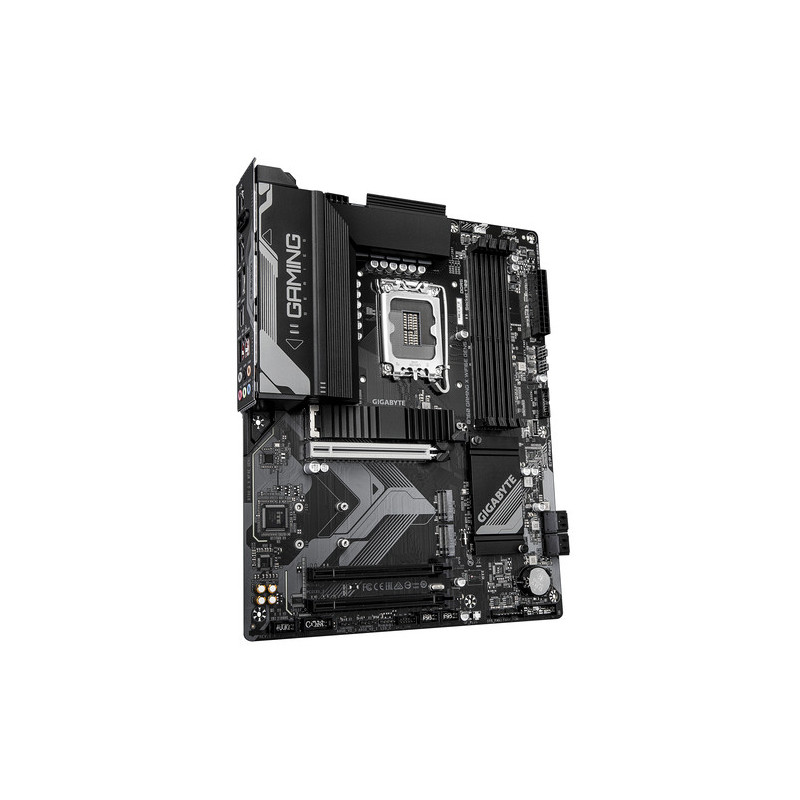

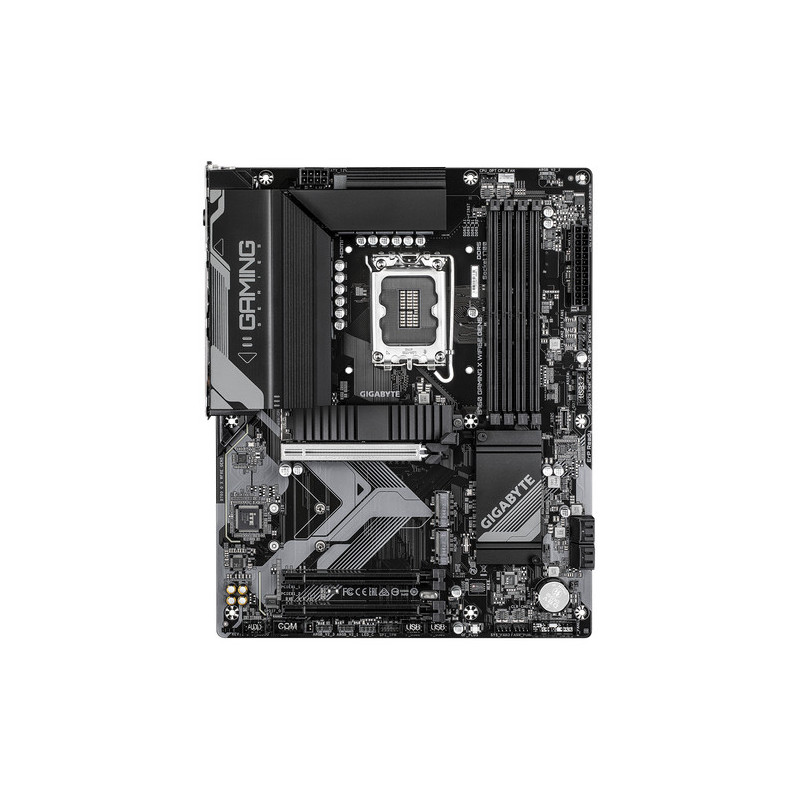

GIGABYTE B760 GAMING X WIFI6E GEN5 / LGA 1700 / ATX pagrindinė plokštė
Prekės kodas:
3-4719331871673
GIGABYTE B760 GAMING X WIFI6E GEN5/LGA 1700/ATX pagrindinė plokštė
GIGABYTE B760 GAMING X WIFI6E GEN5 / LGA 1700 / ATX pagrindinė plokštė
Prekės kodas:
3-4719331871673
GIGABYTE B760 GAMING X WIFI6E GEN5/LGA 1700/ATX pagrindinė plokštė
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Europos
per 10 - 15*
d. d.
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Processor | |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 13th Gen, Intel® Celeron®, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel Core i3 14th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Features | |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Water cooling, Voltage |
| Motherboard chipset | Intel B760 |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Memory | |
| Supported memory clock speeds | 7600, 6400, 6600, 6200, 6000, 7400, 5600, 7200 MHz, 4000, 4800, 7000, 6800, 5200, 5800, 5400 |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Weight & dimensions | |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
| Network | |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth version | 5.3 |
| Wi-Fi standards | 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 2 |
| S/PDIF out connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 4 |
| Number of chassis fan connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| BIOS | |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Packaging data | |
| Package width | 335 mm |
| Package height | 80 mm |
| Package weight | 1.8 kg |
| Package depth | 270 mm |

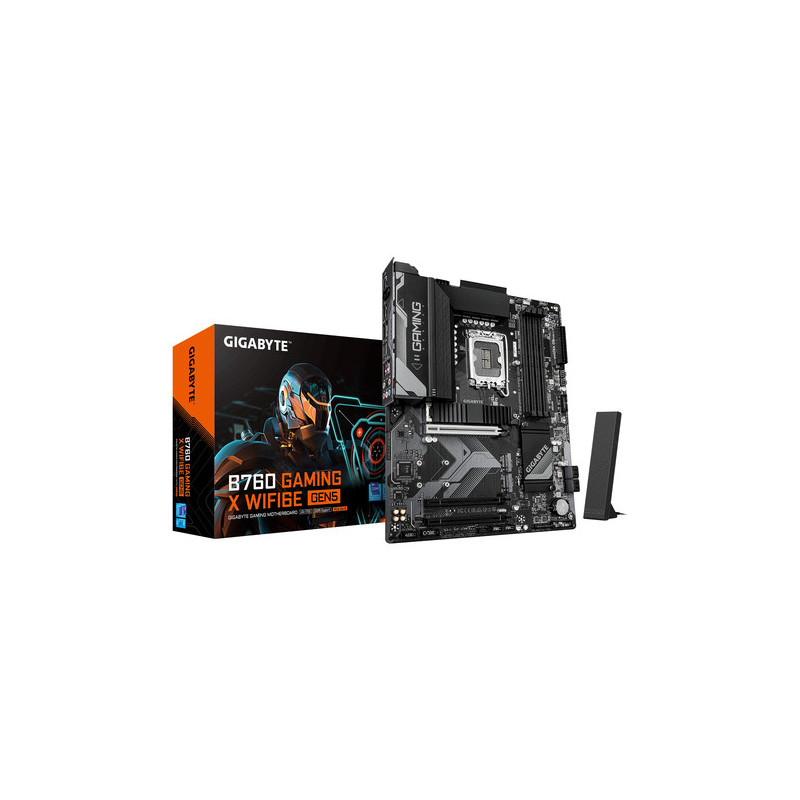

| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Antenna included | Yes |
| Screws included | Yes |
| Batteries included | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 10, 5, 1 |
| Number of storage drives supported | 7 |

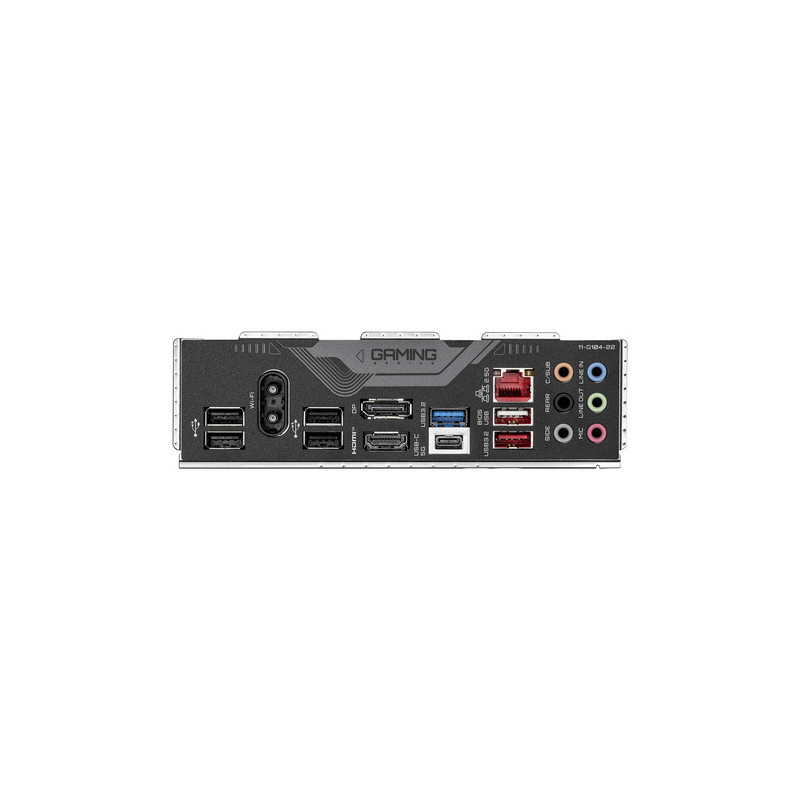

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| USB 2.0 ports quantity | 5 |
| DisplayPort version | 1.2 |
| HDMI version | 2.1 |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Battery | |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Other features | |
| Weight | 1.61 kg |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
