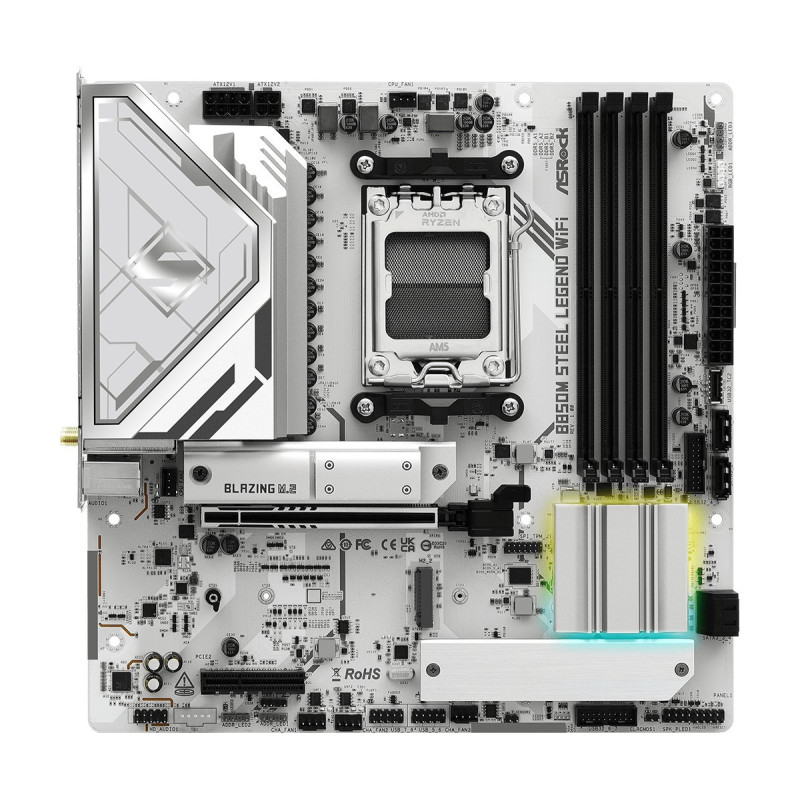

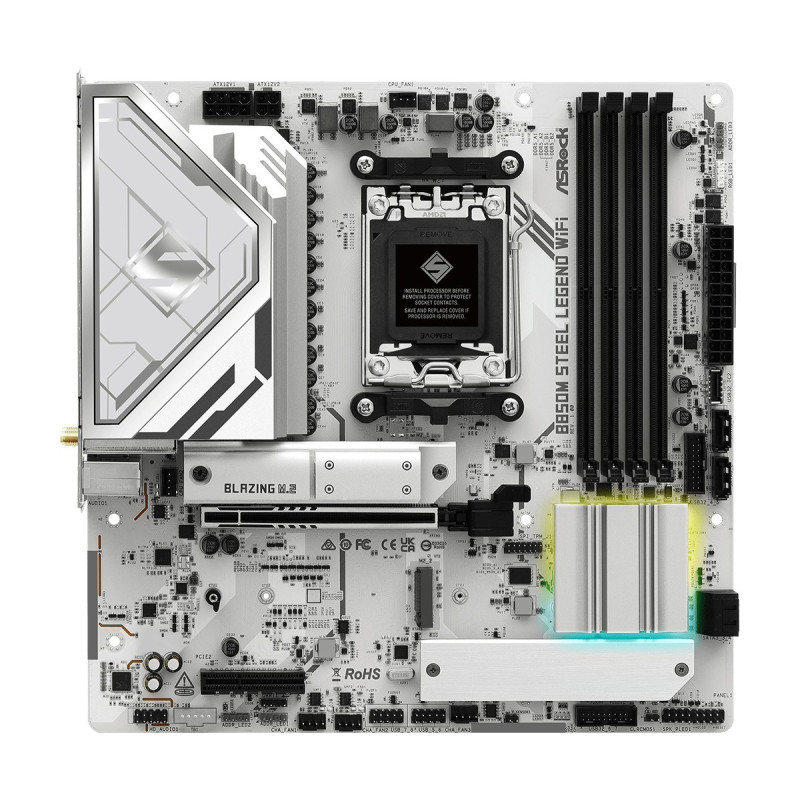

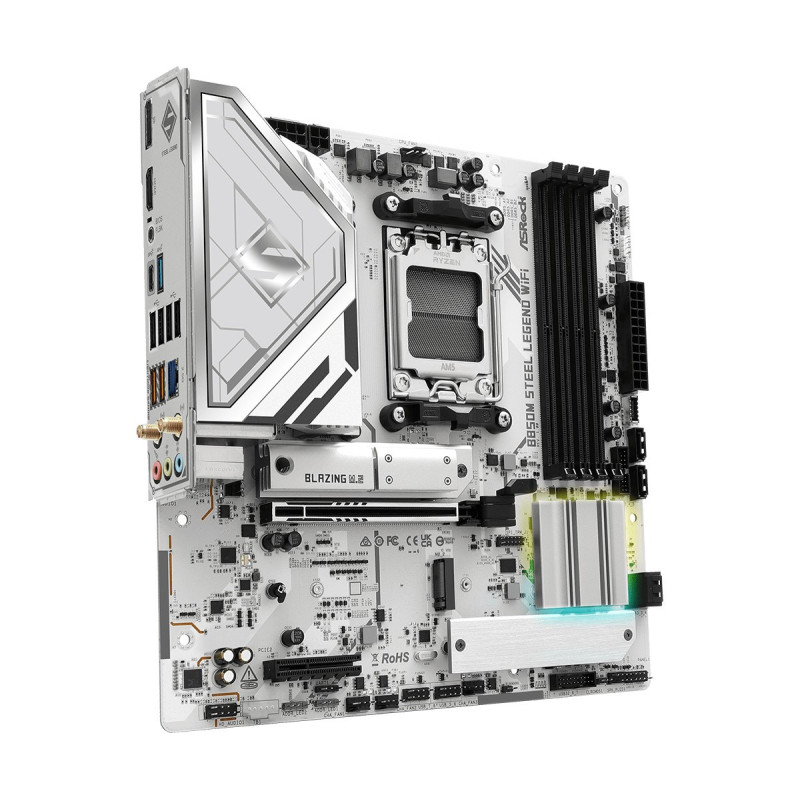

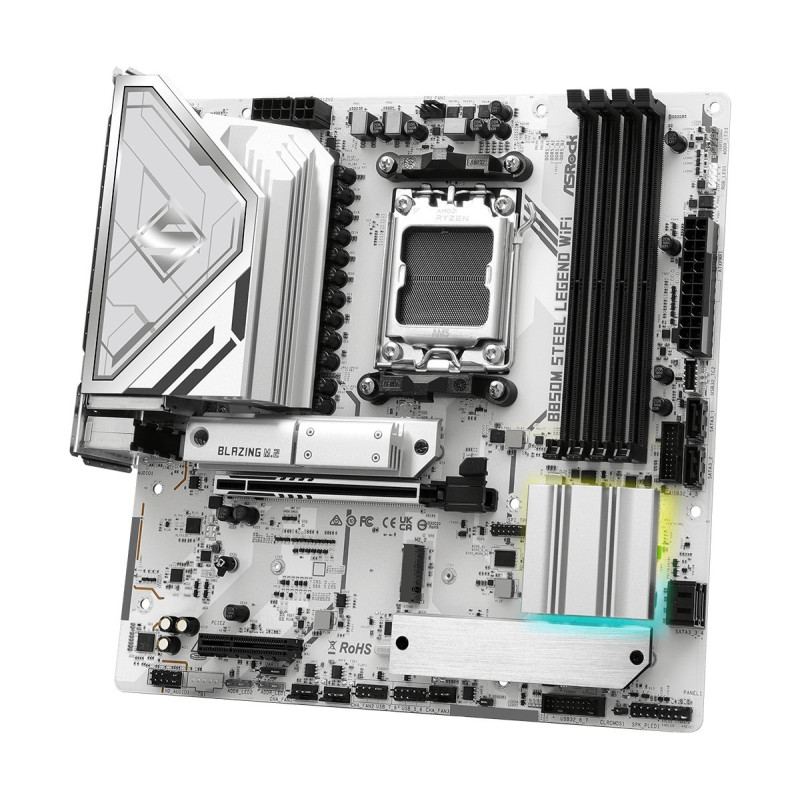

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
Product reference:
3-4711581490499
Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
Product reference:
3-4711581490499
Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Graphics | |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Audio chip | Realtek ALC1220 |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Product colour | White |
| Motherboard chipset | AMD B850 |
| Memory | |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
| ECC compatibility | ECC Non-ECC |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Weight dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standard | Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| USB 2.0 connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 1 |
| 12V power connector | Yes |
| Number of CPU fan connectors | 2 |
| RGB LED pin header | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| M.2 standoff included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Storage controllers | |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 10, 1, 0 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Rear panel I/O port | |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 1 |
| Ethernet LAN (RJ-45) port | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C port quantity | 1 |
| DisplayPort quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 2 |
| HDMI port quantity | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Expansion slot | |
| Number of M.2 (M) slots | 3 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| PCI Express x4 (Gen 4.x) slot | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Safety warning | |
| Warnings | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
