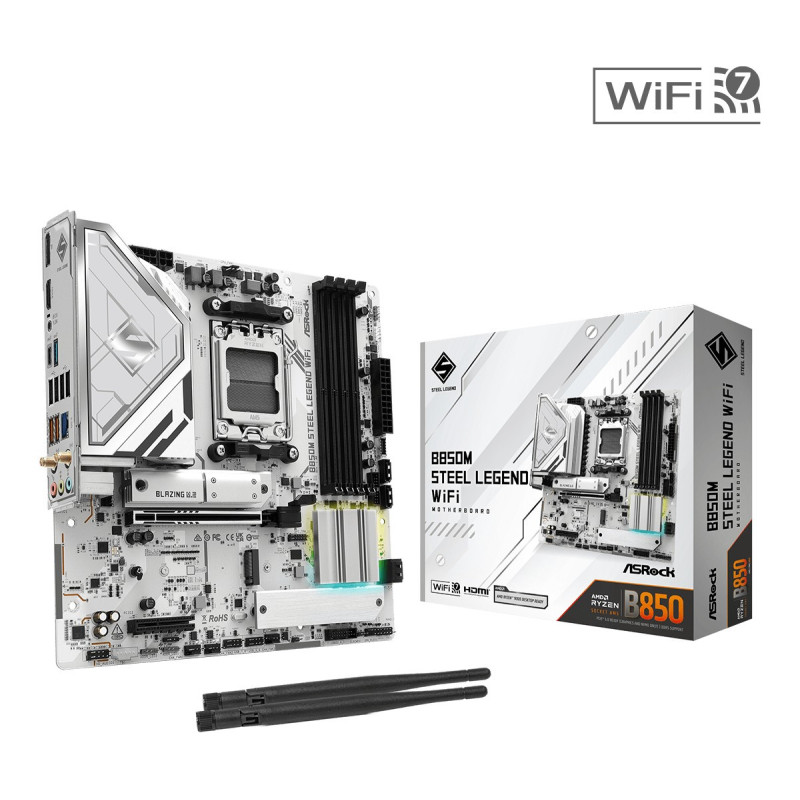

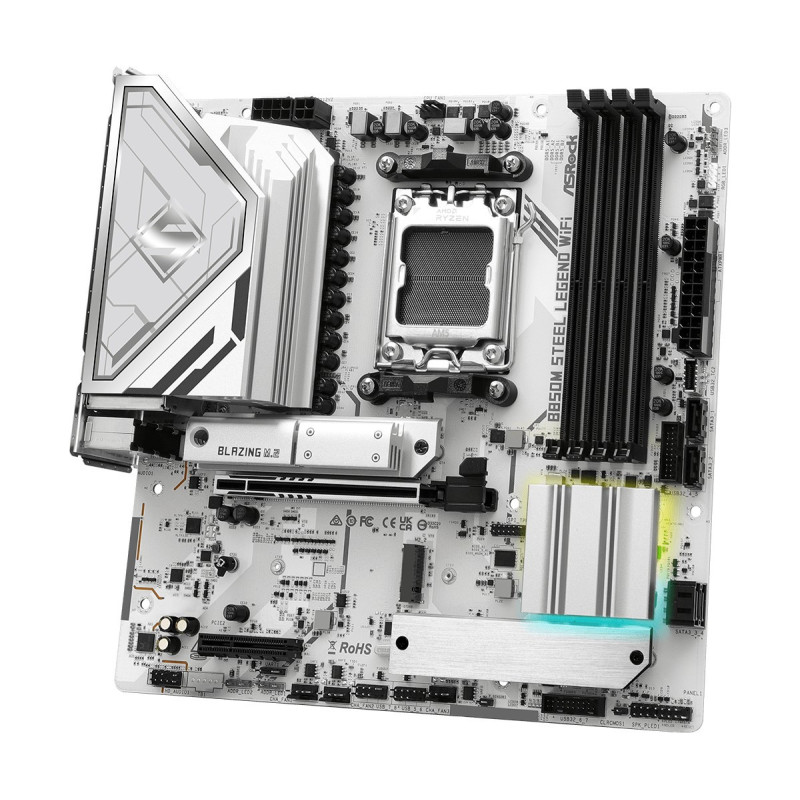

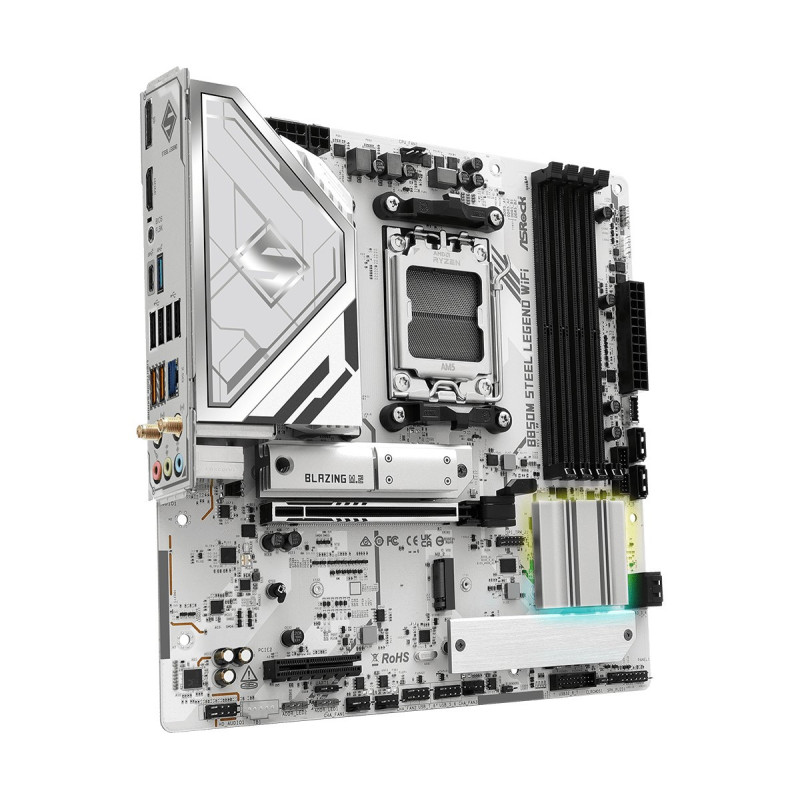

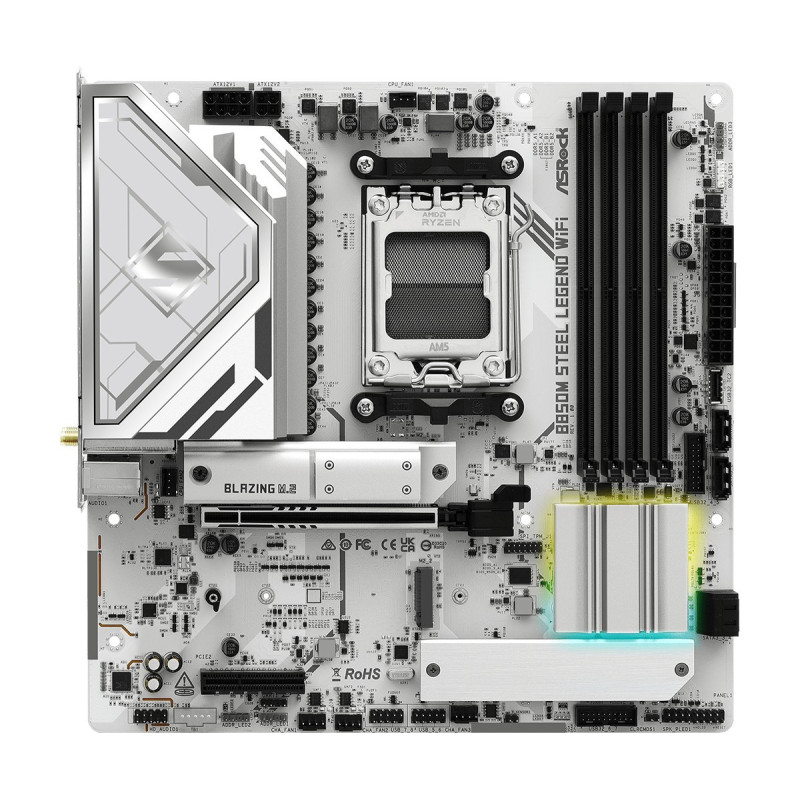

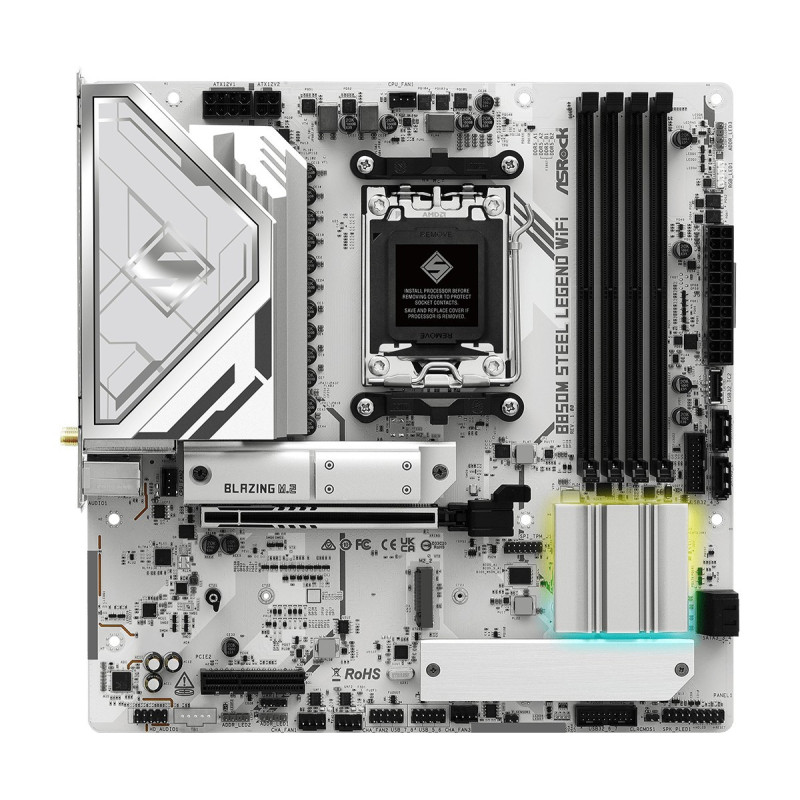

Płyta główna B850M STEEL LEGEND WIFI AM5 4DDR5 HDMI / DP mATX
Prekės kodas:
3-4711581490499
Płyta główna B850M STEEL LEGEND WIFI AM5 4DDR5 HDMI/DP mATX
Płyta główna B850M STEEL LEGEND WIFI AM5 4DDR5 HDMI / DP mATX
Prekės kodas:
3-4711581490499
Płyta główna B850M STEEL LEGEND WIFI AM5 4DDR5 HDMI/DP mATX
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 3 - 8*
d. d.
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Graphics | |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Features | |
| Certification | FCC, CE, ErP/EuP |
| Audio chip | Realtek ALC1220 |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Product colour | White |
| Motherboard chipset | AMD B850 |
| Memory | |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Weight & dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| USB 2.0 connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 1 |
| 12V power connector | Yes |
| Number of CPU fan connectors | 2 |
| RGB LED pin header | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| Packaging content | |
| Cables included | SATA |
| M.2 standoff included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 10, 1, 0 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Safety warning | |
| Warnings | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
