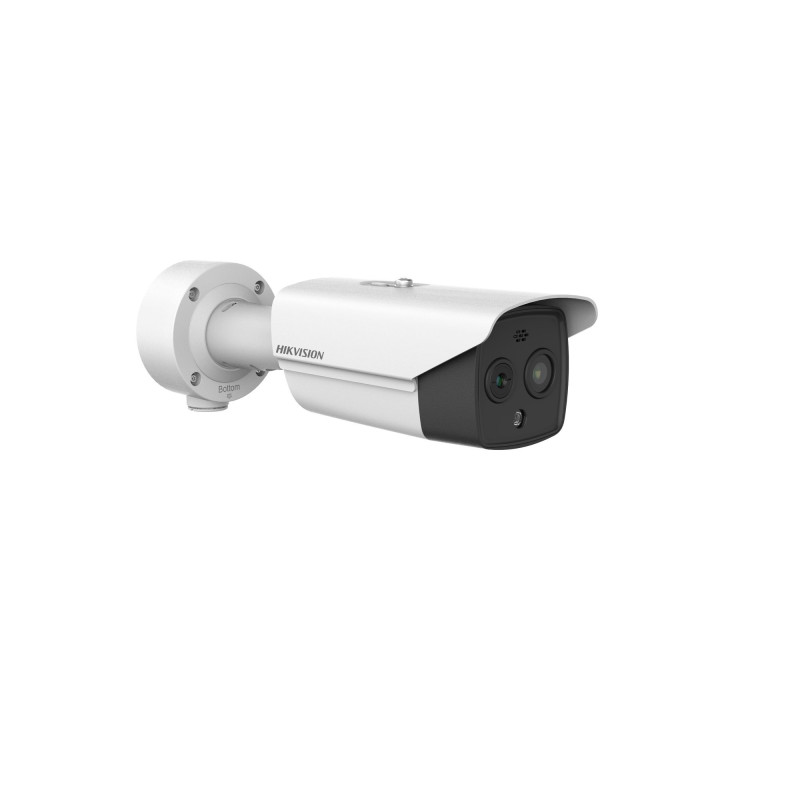

Hikvision HeatPro series thermal imaging bullet DS-2TD2628T-3 / QA

Product reference: 26-6931847157784

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
Video content analysis: vehicle and people classification
Temperature exception alarm for fire prevention: −20 °C to 550 °C (± 2 °C, ± 2%)
Smoke detection algorithm supported
Smoking detection algorithm supported
Supported algorithms for solar glare filter and forklift alarm filter
Image processing technologies: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNA
High-quality detector with a 10-year warranty

Hikvision HeatPro series thermal imaging bullet DS-2TD2628T-3 / QA

Product reference: 26-6931847157784

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
Video content analysis: vehicle and people classification
Temperature exception alarm for fire prevention: −20 °C to 550 °C (± 2 °C, ± 2%)
Smoke detection algorithm supported
Smoking detection algorithm supported
Supported algorithms for solar glare filter and forklift alarm filter
Image processing technologies: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNA
High-quality detector with a 10-year warranty

You have 3 products in compare list, please remove someone and try again

Add to compare

582,31 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Approval
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
Environment CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
Protection IP67: IEC 60529-2013IK10: IEC 62262-2002
Safety CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

Audible and Visual Alarm
Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
White Light Range Up to 30 m

General
Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 W24VDC ± 25%: 0.22A to 0.75 A, max. 18WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5W
Power Supply 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
Weight 1550g (3.41lb)
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Image Effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.

Interface
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Audio Input 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Network
API ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T), OTAP
Client iVMS-4200, Hik-Connect
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTPP, TLS
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User

Optical Module
Aperture F 1.6
Day Night Mode IR Cut Filter with Auto Switch
Field of View 84.0° ×43.1° (H × V)
Focal Length 4.3 mm
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
Resolution 2688 × 1520
Shutter Speed 1 s to 1/100,000 s
WDR 120dB
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Smart Function
General Function Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperature Accuracy Max (±2°C, ±2 %)
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Video and Audio
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Mainstream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920×1080, 1280×720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
