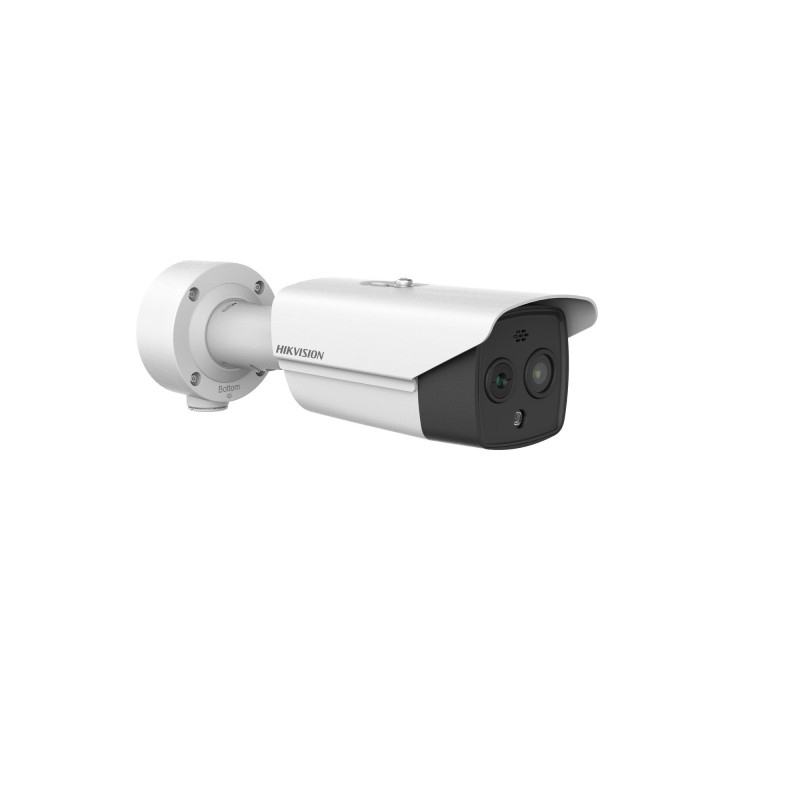

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628T-3 / QA

Prekės kodas: 26-6931847157784

256 × 192 raiška, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
Vaizdo turinio analizė: transporto priemonių ir žmonių klasifikavimas
Temperatūros išimties aliarmas gaisro prevencijai: nuo −20 °C iki 550 °C (± 2 °C, ± 2 %)
Palaikomas dūmų aptikimo algoritmas
Palaikomas rūkymo aptikimo algoritmas
Palaikomi saulės atspindžių filtro ir krautuvo aliarmo filtro algoritmai
Vaizdo apdorojimo technologijos: linijinis, histograminis, savaime prisitaikantis terminis AGC režimas, DDE, 3D DNR
Aukštos kokybės detektorius su 10 metų garantija

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628T-3 / QA

Prekės kodas: 26-6931847157784

256 × 192 raiška, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
Vaizdo turinio analizė: transporto priemonių ir žmonių klasifikavimas
Temperatūros išimties aliarmas gaisro prevencijai: nuo −20 °C iki 550 °C (± 2 °C, ± 2 %)
Palaikomas dūmų aptikimo algoritmas
Palaikomas rūkymo aptikimo algoritmas
Palaikomi saulės atspindžių filtro ir krautuvo aliarmo filtro algoritmai
Vaizdo apdorojimo technologijos: linijinis, histograminis, savaime prisitaikantis terminis AGC režimas, DDE, 3D DNR
Aukštos kokybės detektorius su 10 metų garantija

Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.

582,31 €

Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!

Užpildykite privalomus laukus*

Approval
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)FCC (ANSI C63.4;FCC Part15 sub B)
Environment CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
Protection IP67: IEC 60529-2013IK10: IEC 62262-2002
Safety CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017;UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

Audible and Visual Alarm
Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
White Light Range Up to 30 m

General
Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 W24VDC ± 25%: 0.22A to 0.75 A, max. 18WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Power Supply 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
Weight 1550 g (3.41 lb)
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Image Effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.

Interface
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Audio Input 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Network
API ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Client iVMS-4200, Hik-Connect
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User

Optical Module
Aperture F 1.6
Day & Night Mode IR Cut Filter with Auto Switch
Field of View 84.0° ×43.1° (H × V)
Focal Length 4.3 mm
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Resolution 2688 × 1520
Shutter Speed 1 s to 1/100,000 s
WDR 120 dB
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Smart Function
General Function Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperature Accuracy Max (±2°C, ±2 %)
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Video and Audio
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Main Stream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
