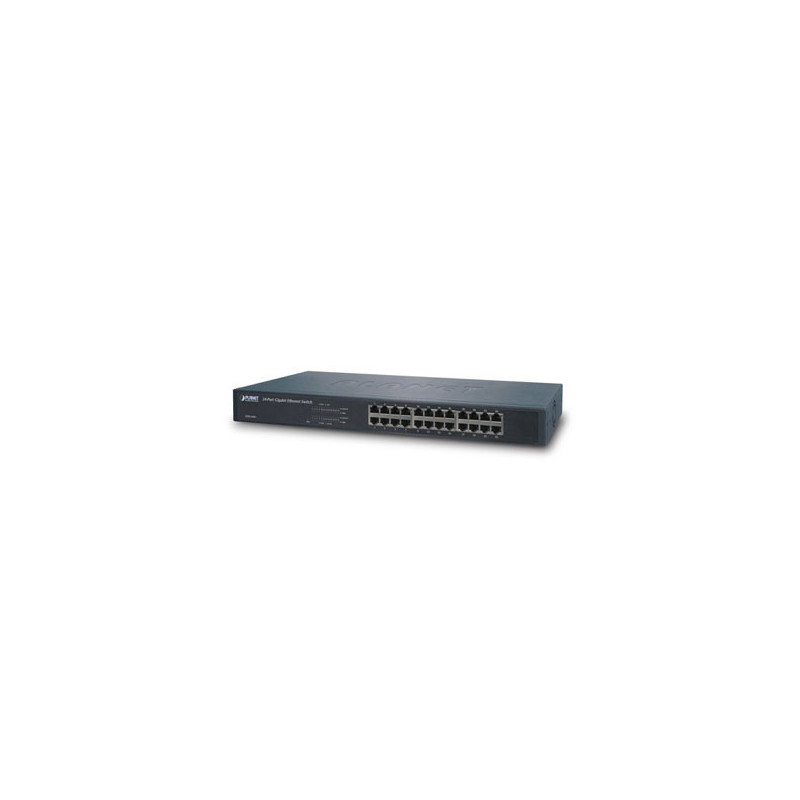

24-port Gigabit Internet Network Hub Planet GSW-2401

Short description:• Gigabit Internet network hub 24-ports; • 24 x 10/100/1000Mbps, metal housing; • Auto-MDI/MDIX for all ports; • Supports CSMA / CD protocols; • Complies with Internet standards: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T; • MAC address memory: 8k Bits; • Power supply 100-240V AC, 0.6A, 50/60Hz • Dimensions: 440 x 180 x 44 mm, 1UTechnical characteristics:• Hardware Version Version 5 • 10/100/1000Base-T MDI/MDIX Ports 24 • Throughput (packet per second) 35.7Mpps • Switch fabric 48Gbps / non-blocking • Power Consumption / Dissipation 18 watts / 61 BTU • Power Requirements 100-240V AC, 0.6A, 50/60Hz • Switch Processing Scheme Store-and-Forward • Address Table 8K entries • Jumbo packet size 9K • Flow Control Back pressure for half duplex, IEEE 802.3x pause of frame for full duplex • Dimensions (W x D x H) 440 x 180 x 44 mm, 1U height • Weight 2kg • Standards Conformance • Regulation Compliance FCC Part 15 Class A, CE • Standards Compliance IEEE 802.3 (Ethernet) • IEEE 802.3u (Fast Ethernet) • IEEE 802.3ab (Gigabit Ethernet) • IEEE 802.3x (Full-Duplex Flow Control) • Temperature Operating: 0~50 degrees C • Storage: -10~70 degrees C • Humidity Operating: 5~95% • Storage: 5~95% (Non-condensing)
