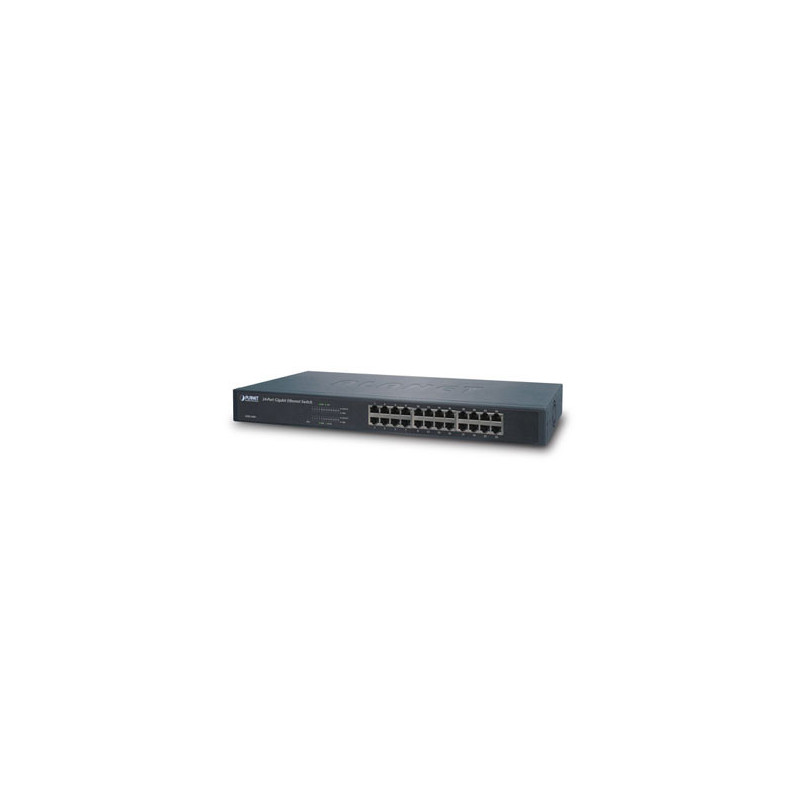

24-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSW-2401

Trumpas aprašymas:



• Gigabitinis interneto tinklo šakotuvas 24-prievadų;

• 24 x 10/100/1000Mbps, metalinis korpusas;

• Auto-MDI/MDIX visiems portams;

• Palaiko CSMA / CD protokolus;

• Atitinka interneto standartus: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T;

• MAC adresų atmintis: 8k Bitų;

• Maitinimas 100-240V AC, 0.6A, 50/60Hz

• Išmatavimai: 440 x 180 x 44 mm, 1U



Techninė charakteristika:



• Hardware Version Version 5

• 10/100/1000Base-T MDI/MDIX Ports 24

• Throughput (packet per second) 35.7Mpps

• Switch fabric 48Gbps / non-blocking

• Power Consumption / Dissipation 18 watts / 61 BTU

• Power Requirements 100-240V AC, 0.6A, 50/60Hz

• Switch Processing Scheme Store-and-Forward

• Address Table 8K entries

• Jumbo packet size 9K

• Flow Control Back pressure for half duplex, IEEE 802.3x pause of frame for full duplex

• Dimensions (W x D x H) 440 x 180 x 44 mm, 1U height

• Weight 2kg

• Standards Conformance

• Regulation Compliance FCC Part 15 Class A, CE

• Standards Compliance IEEE 802.3 (Ethernet)

• IEEE 802.3u (Fast Ethernet)

• IEEE 802.3ab (Gigabit Ethernet)

• IEEE 802.3x (Full-Duplex Flow Control)

• Temperature Operating: 0~50 degrees C

• Storage: -10~70 degrees C

• Humidity Operating: 5~95%

• Storage: 5~95% (Non-condensing)
