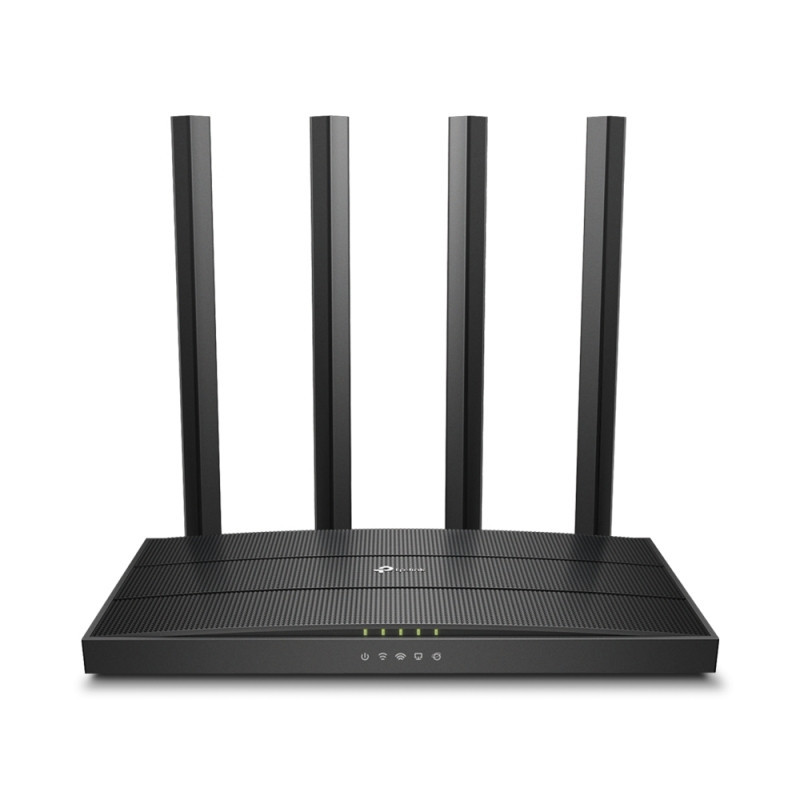

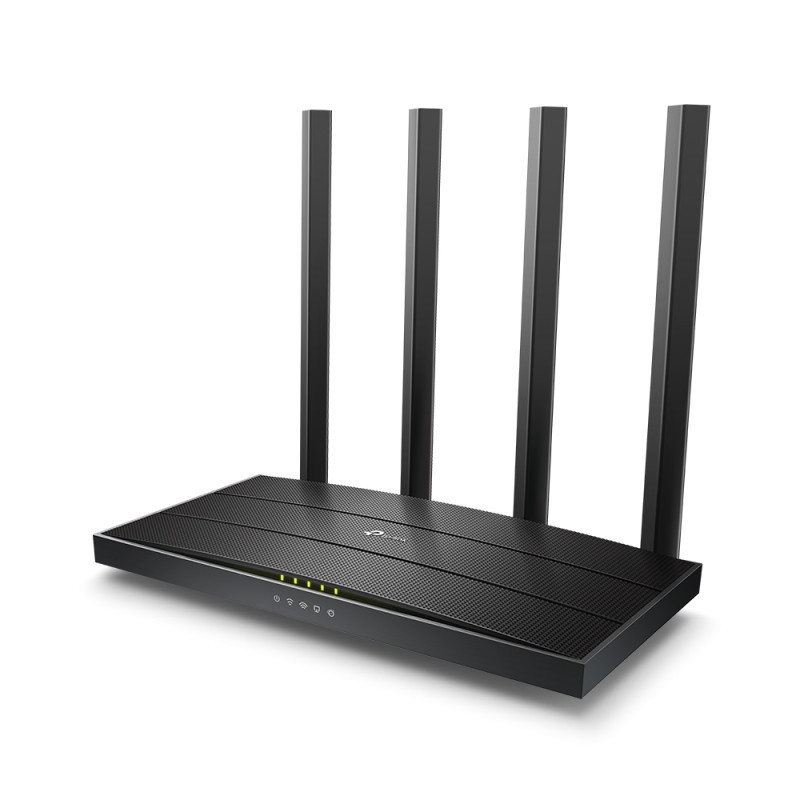

TP-LINK AC1200 Wireless MU-MIMO Gigabit Router

• Supports 802.11ac standard


• Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth


• 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage


• Easy network management at your fingertips with TP-Link Tether


• MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once

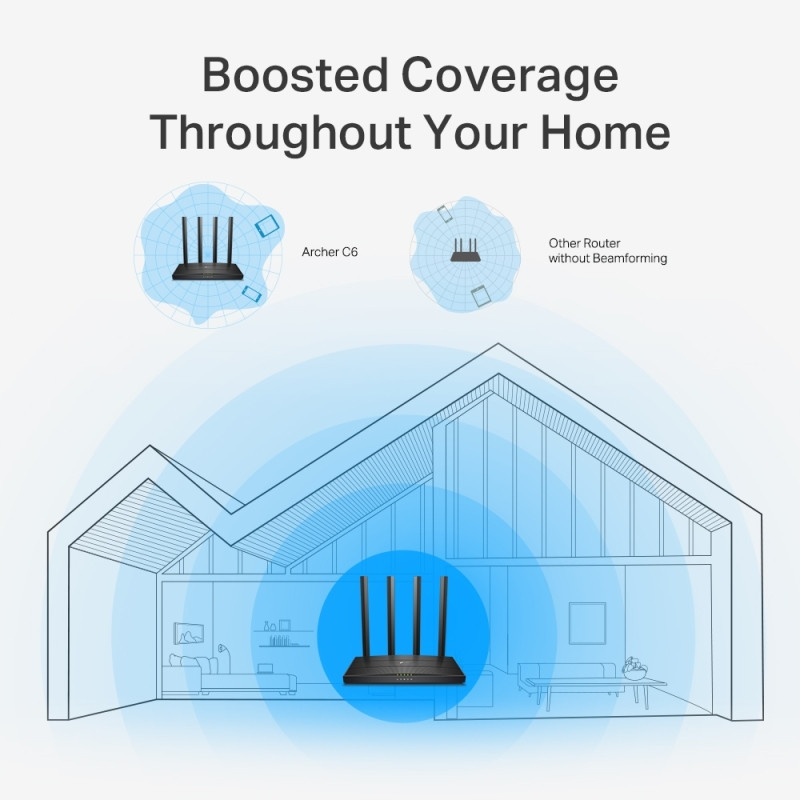

• Beamforming technology delivers wider wireless coverage


• Supports Access Point mode to create a new Wi-Fi access point

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz Frequency: 2.4GHz and 5GHz

Signal Rate: 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps

Reception Sensitivity: 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps: -78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm；

Transmit Power: CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)

Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES

WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond Management: Access Control, Local Management, Remote Management DHCP: Server, DHCP Client List, Address Reservation Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS: DynDns, NO-IP Access Control: Parental Controls, Local Management Control, Host List, White List, Black List Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding Protocols: IPv4, IPv6 Guest Network: 2.4GHz guest network, 5GHz guest network VPN Server: OpenVPN，PPTP VPN

SYSTEM

System Requirements: Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access)

ENVIRONMENT

Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

PACKAGE CONTENTS

Wireless Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide

HARDWARE FEATURES

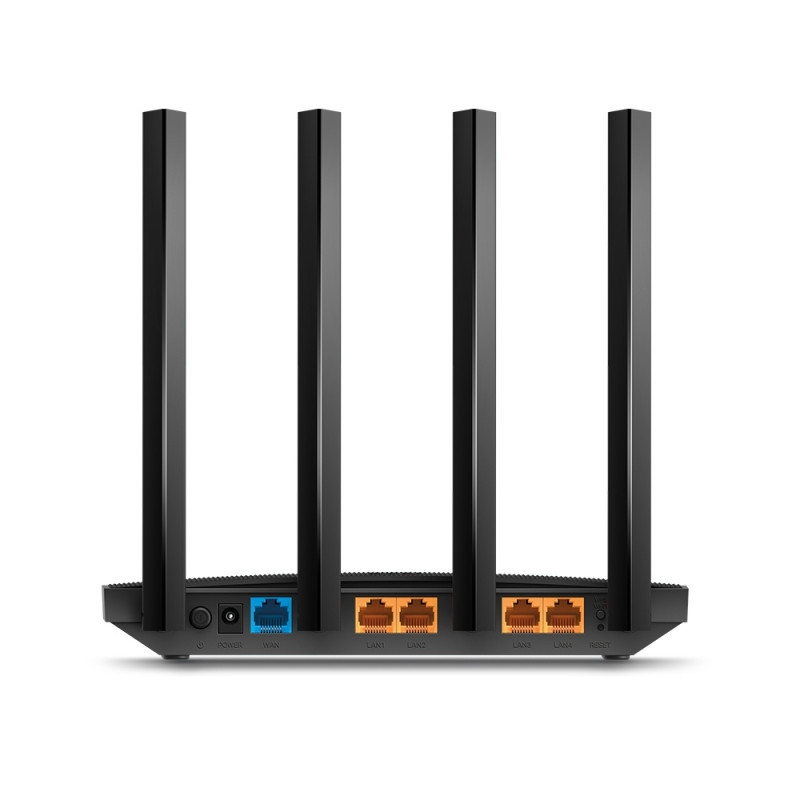

Ports: 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port Button: Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button Power Supply: 12V/1A Dimensions ( W x D x H ): 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) Antennas: 4 Fixed External Antennas and 1 Internal Antenna
