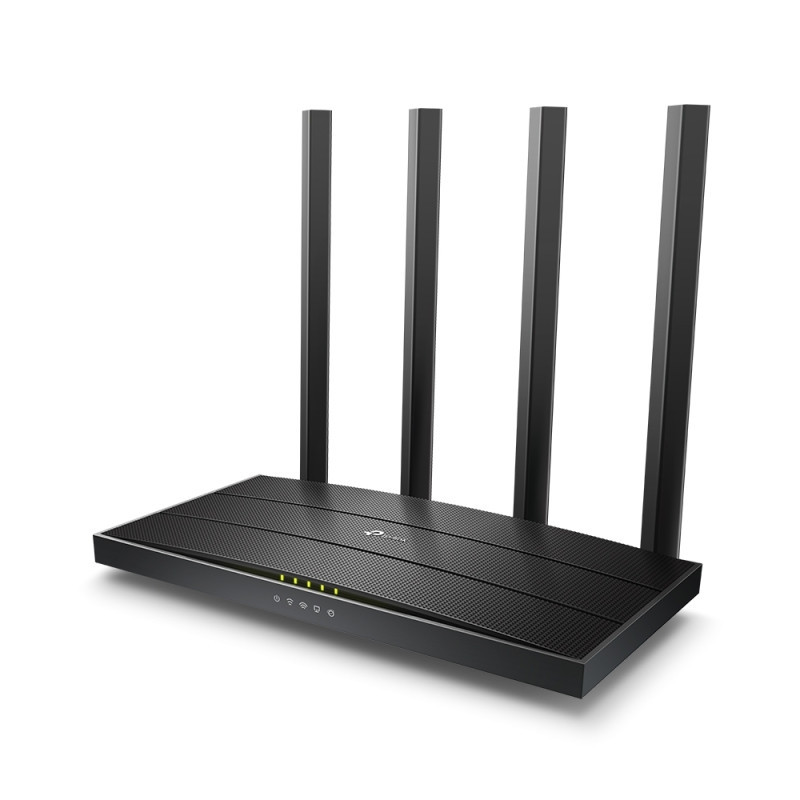

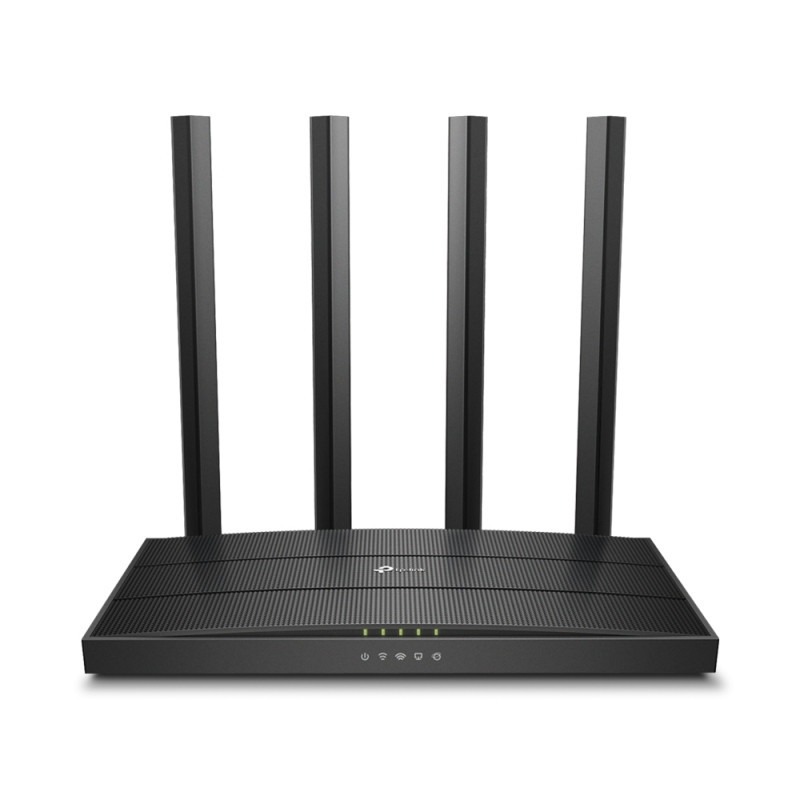

TP-LINK AC1200 belaidis MU-MIMO gigabito maršrutizatorius

• Supports 802.11ac standard


• Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth


• 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage


• Easy network management at your fingertips with TP-Link Tether


• MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once

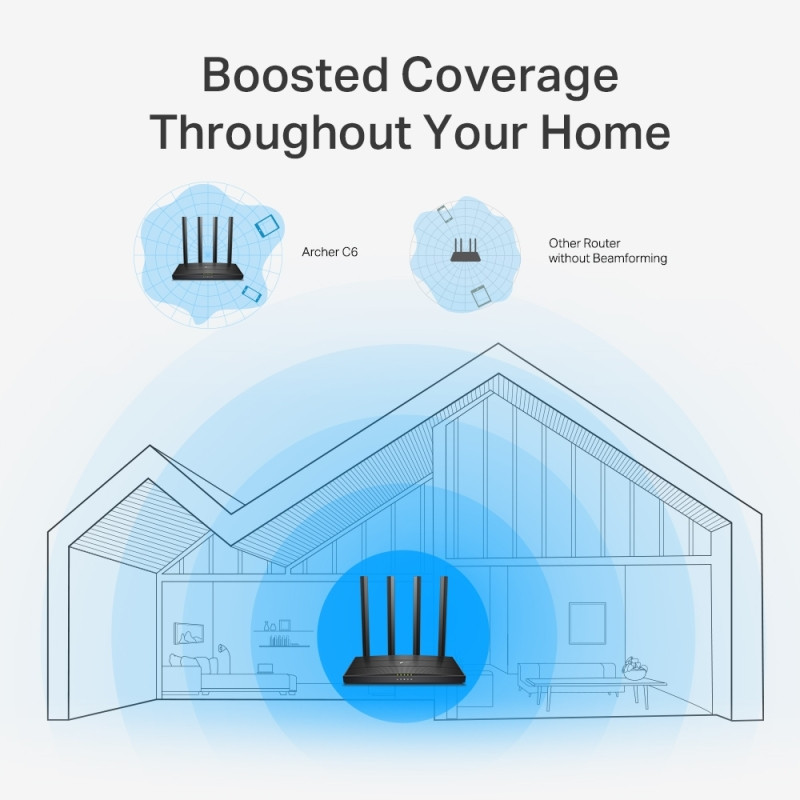

• Beamforming technology delivers wider wireless coverage


• Supports Access Point mode to create a new Wi-Fi access point

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency: 2.4GHz and 5GHz

Signal Rate:

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Reception Sensitivity:

5GHz:

11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm；

Transmit Power: CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)

Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES

WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond

Management: Access Control, Local Management, Remote Management

DHCP: Server, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP

Access Control: Parental Controls, Local Management Control, Host List, White List, Black List

Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

Protocols: IPv4, IPv6

Guest Network: 2.4GHz guest network, 5GHz guest network

VPN Server: OpenVPN，PPTP VPN

SYSTEM

System Requirements:

Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

ENVIRONMENT

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

PACKAGE CONTENTS

Wireless Router Archer C6

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

HARDWARE FEATURES

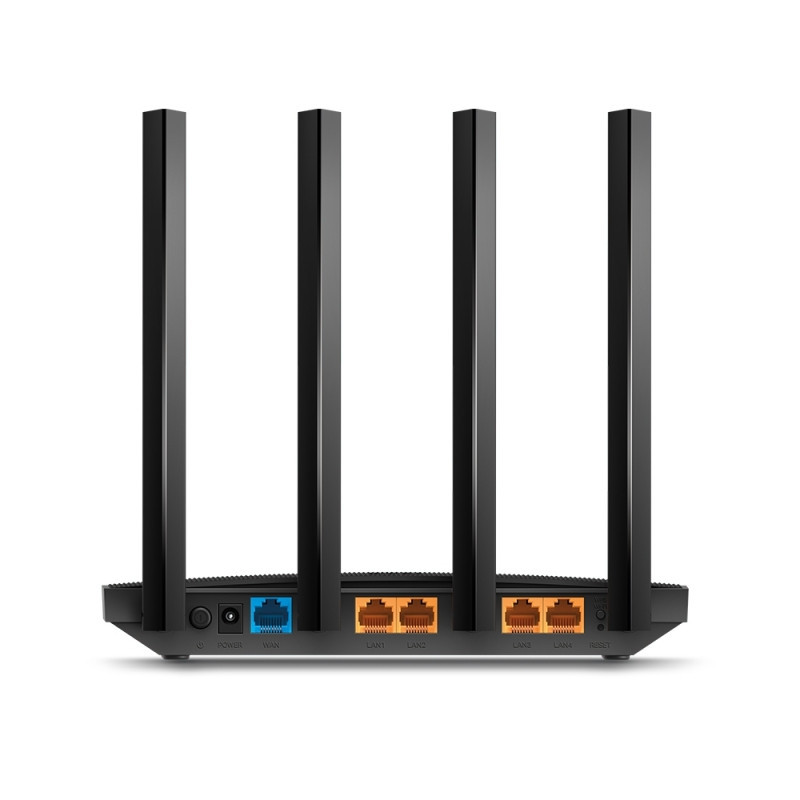

Ports: 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port

Button: Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button

Power Supply: 12V/1A

Dimensions ( W x D x H ): 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)

Antennas: 4 Fixed External Antennas and 1 Internal Antenna
