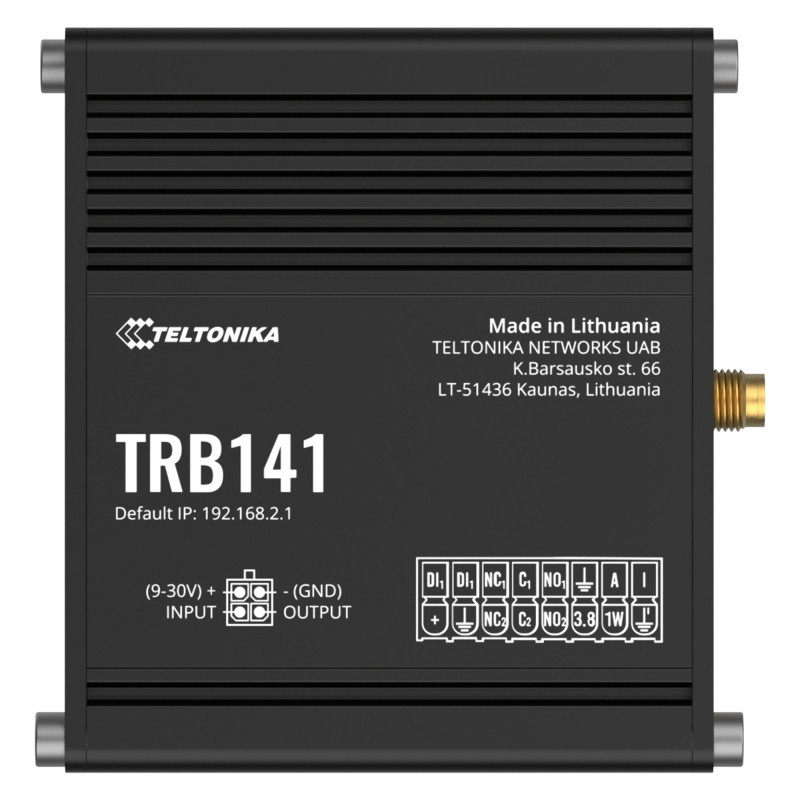

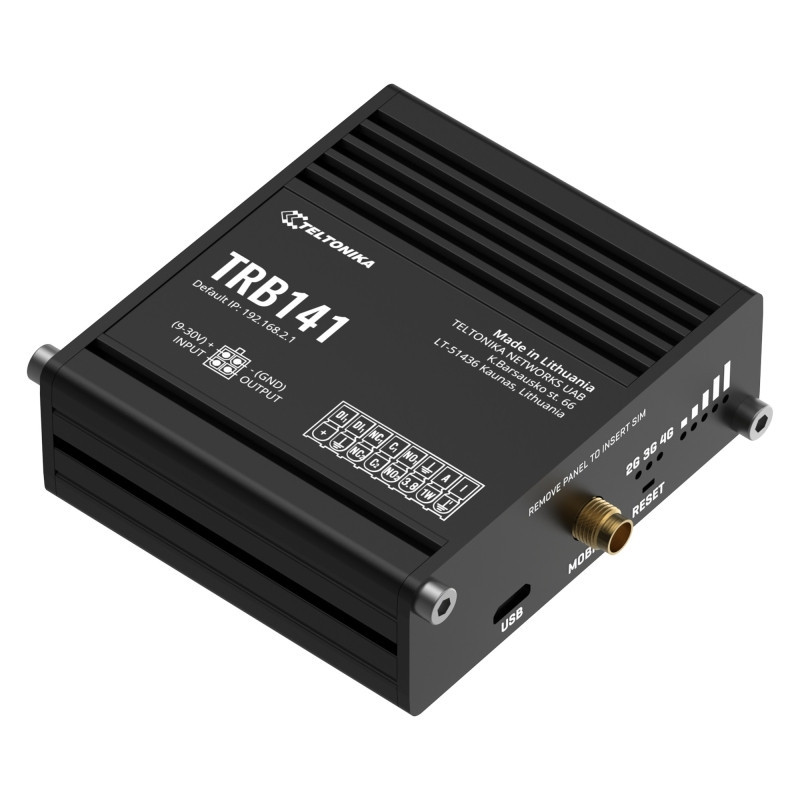

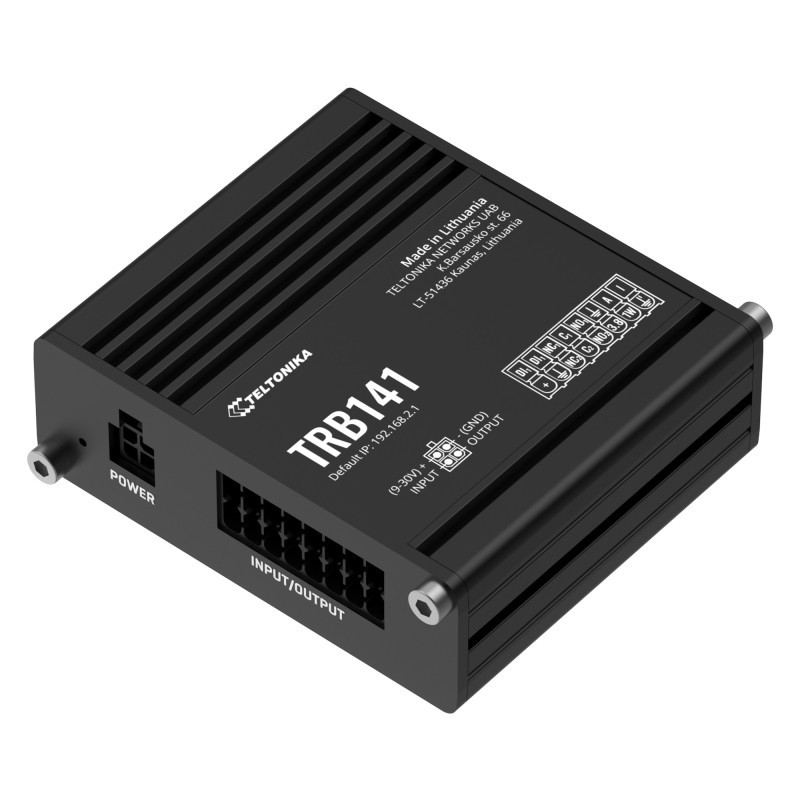

TELTONIKA Small Industrial LTE Cat 1 Gateway

Product reference: 18-TRB141

TELTONIKA Small Industrial LTE Cat 1 Gateway

Product reference: 18-TRB141

TELTONIKA Small Industrial LTE Cat 1 Gateway

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

137,20 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

This Industrial LTE Cat 1 Gateway is equipped with several Input Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.

Key features

Multiple Inputs/Outputs for remote monitoring and control

LTE Cat 1 for M2M/IoT communications

Compact size, easy integration

Wide range of power supply voltages

Teltonika Remote Management System compatible

Easy to use, secure and feature rich OpenWrt based Operating System

Standard package contains

TRB141 Gateway

Euro PSU

1 x LTE antenna (magnetic mount, SMA male, 3 m cable)

Micro USB cable (0.8 m)

1 x hex key

I/O connector

QSG (Quick Start Guide)

Packaging box

MOBILE
Mobile module	4G (LTE) - Cat 1 up to 10 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps
Status	Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
SMS/Call	SMS status, SMS configuration, Call utilities

NETWORK
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT
Bruges	Direct connection (bridge) between mobile ISP and device on LAN
Connection monitoring	Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
Firewall	Port forwards, traffic rules, custom rules
DHCP	Static and dynamic IP allocation
DDNS	Supported > 25 service providers, others can be configured manually

SECURITY
Authentication	Pre-shared key, digital certificates, X.509 certificates
Firewall	Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Access control	Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN	Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec	IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE	GRE tunnel
PPTP, L2TP	Client/Server services can run simultaneously

MONITORING MANAGEMENT
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
PHOTO	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration
MQTT	MQTT Broker, MQTT publisher
JSON-RPC	Management API over HTTP/HTTPS
Modbus	Modbus TCP status/control
RMS	Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS
CPU	ARM Cortex-A7 1.2 GHz CPU
RAM	128 MB (50 MB available for user space)
FLASH memory	512 MB (70 MB available for user space)

FIRMWARE / CONFIGURATION
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
PHOTO	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing current configuration

FIRMWARE CUSTOMIZATION
Operating system	RutOS (OpenLinux based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
Development tools	SDK package with build environment provided

INPUT/OUTPUT
Input	2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input (4-20 mA),
Output	2 x Relay outputs (latching and non-latching)
Configurable I/O	2 x Configurable Digital Inputs/Outputs on 4 pin power connector
1-Wire	1
Events	SMS status

POWER
Connector	4 pin industrial DC power socket
Input voltage range	9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection > 33 VDC 10μ max
Power consumption	< 5W

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
USB	Virtual network interface via USB

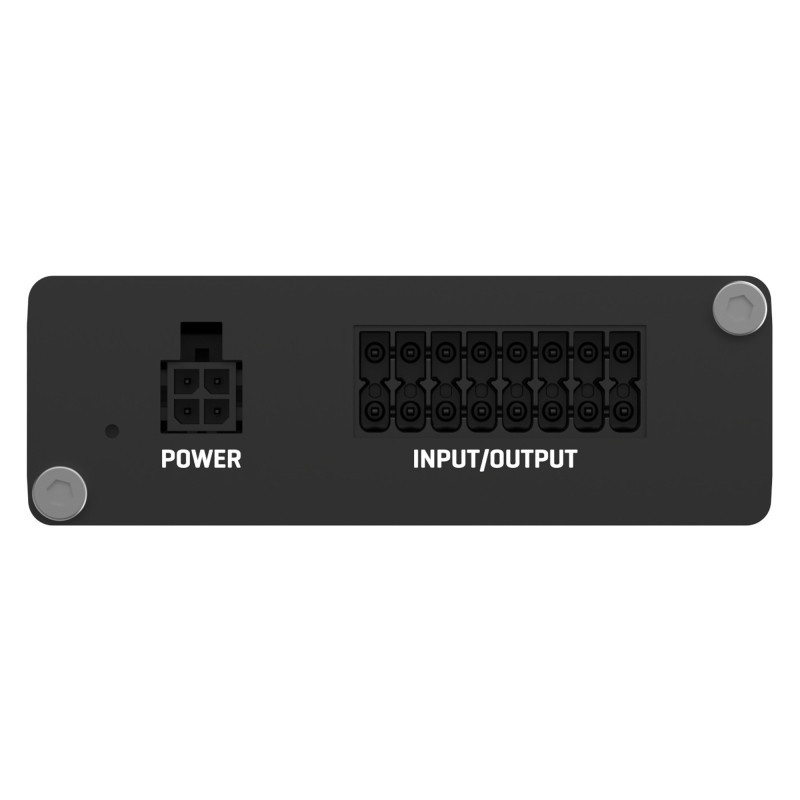

I/Os	16 Inputs/Outputs pin connector, 2 Inputs/Outputs pin on 4 pin power connector

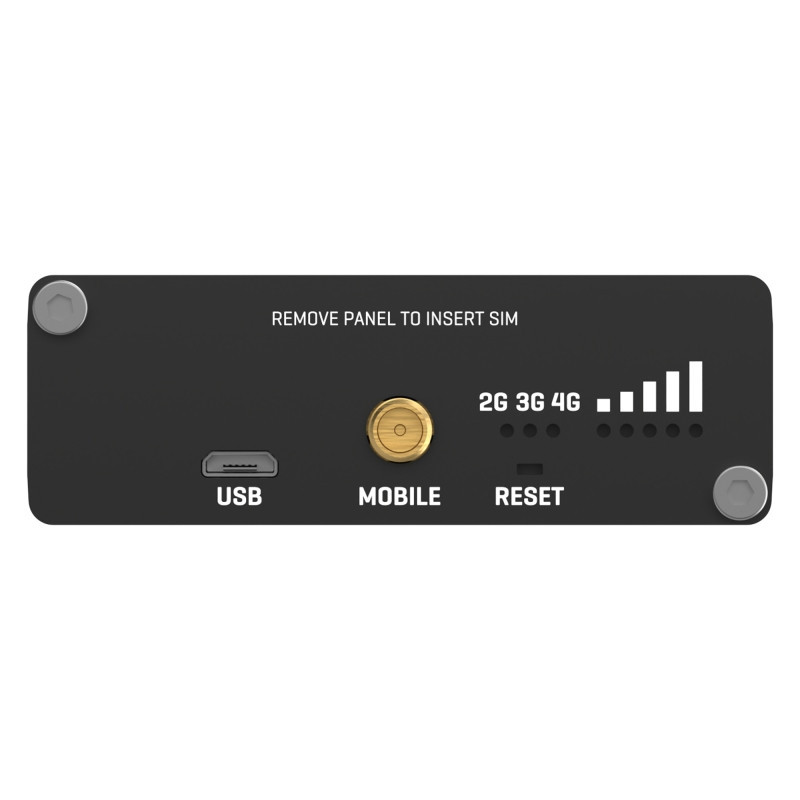

Status LEDs	3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
SIM	1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V
Power	4 pin power connector with 2 x configurable Digital Inputs/Outputs
Annten	1 x SMA for LTE
Reset	Restore factory settings button

PHYSICAL SPECIFICATIONS
Casing material	Aluminum housing
Dimensions	60mm x 70mm x 18mm (H x W x D)
Weight	136 g
Mounting options	Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options

OPERATING ENVIRONMENT
Operating temperature	-40°C to 75°C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

REGULATORY TYPE APPROVALS

Regulatory

CE/RED, EAC, RoHS, WEEE

EMI
Standards	Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
ESD	EN 61000-4-2:2009
RS	EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge protection	EN 61000-4-5:2014
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004

RF
Standards	EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

SAFETY
Standards	IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
	EN 50385:2017
	EN 62232:2017
