TELTONIKA Mažas pramoninis LTE Cat 1 šliuzas
Prekės kodas:
18-TRB141
TELTONIKA Mažas pramoninis LTE Cat 1 šliuzas
TELTONIKA Mažas pramoninis LTE Cat 1 šliuzas
Prekės kodas:
18-TRB141
TELTONIKA Mažas pramoninis LTE Cat 1 šliuzas
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
12 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.

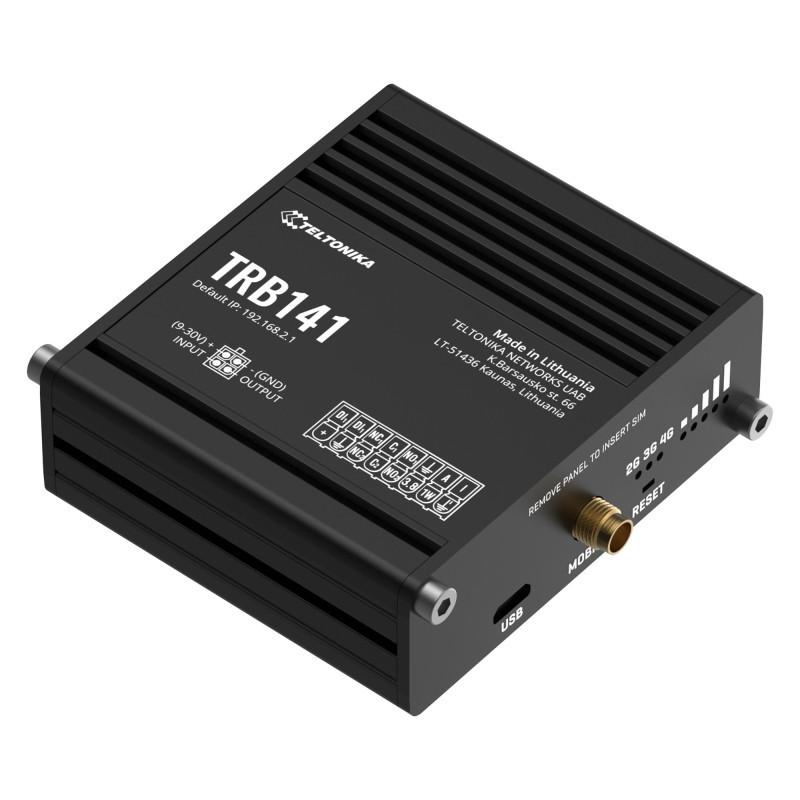

This Industrial LTE Cat 1 Gateway is equipped with several Input Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.
Key features
- Multiple Inputs/Outputs for remote monitoring and control
- LTE Cat 1 for M2M/IoT communications
- Compact size, easy integration
- Wide range of power supply voltages
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Standart package contains
- TRB141 Gateway
- Euro PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- I/O connector
- QSG (Quick Start Guide)
- Packaging box
| MOBILE | |
| Mobile module | 4G (LTE) - Cat 1 up to 10 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| SMS/Call | SMS status, SMS configuration, Call utilities |
| NETWORK | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
| Brige | Direct connection (bridge) between mobile ISP and device on LAN |
| Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| DDNS | Supported > 25 service providers, others can be configured manually |
| SECURITY | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server services can run simultaneously |
| MONITORING MANAGEMENT | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
| FOTA | Firmware update from sever, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration |
| MQTT | MQTT Broker, MQTT publisher |
| JSON-RPC | Management API over HTTP/HTTPS |
| Modbus | Modbus TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| SYSTEM CHARACTERISTICS | |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MB (50 MB available for userspace) |
| FLASH memory | 512 MB (70 MB available for userspace) |
| FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices |
| Keep settings | Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenLinux based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| INPUT/OUTPUT | |
| Input | 2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input (4-20 mA), |
| Output | 2 x Relay outputs (latching and non latching) |
| Configurable I/O | 2 x Configurable Digital Inputs/Outputs on 4 pin power connector |
| 1-Wire | 1 |
| Events | SMS status |
| POWER | |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection > 33 VDC 10μ max |
| Power consumption | < 5 W |

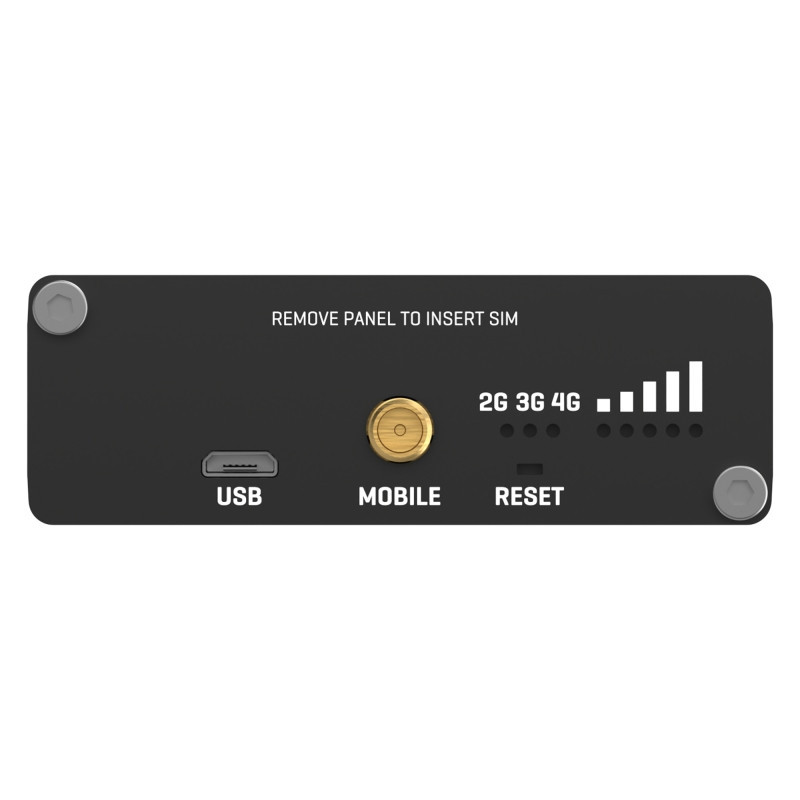

| PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) | |
| USB | Virtual network interface via USB |

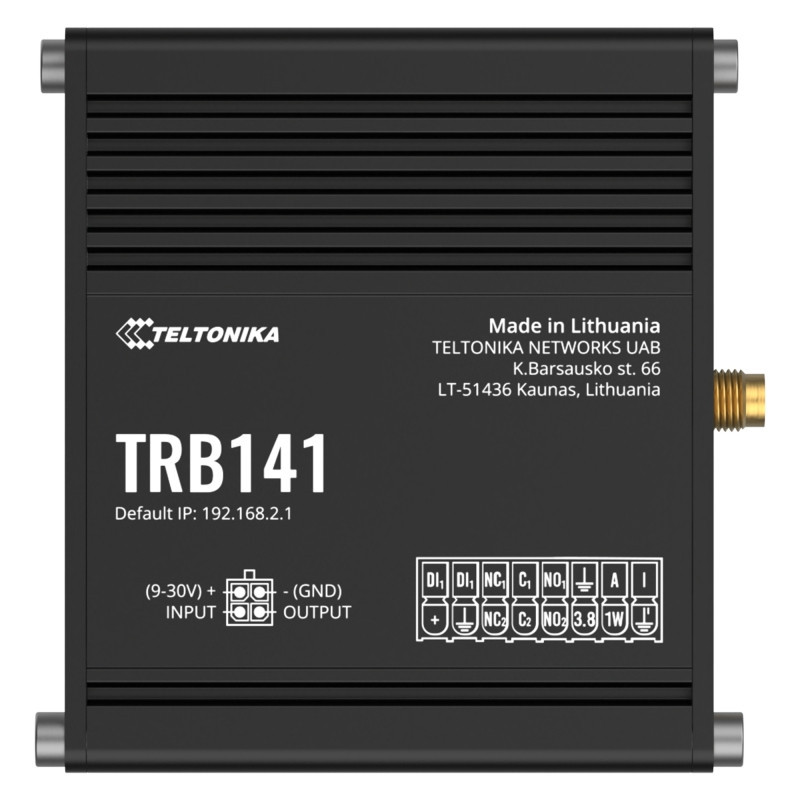

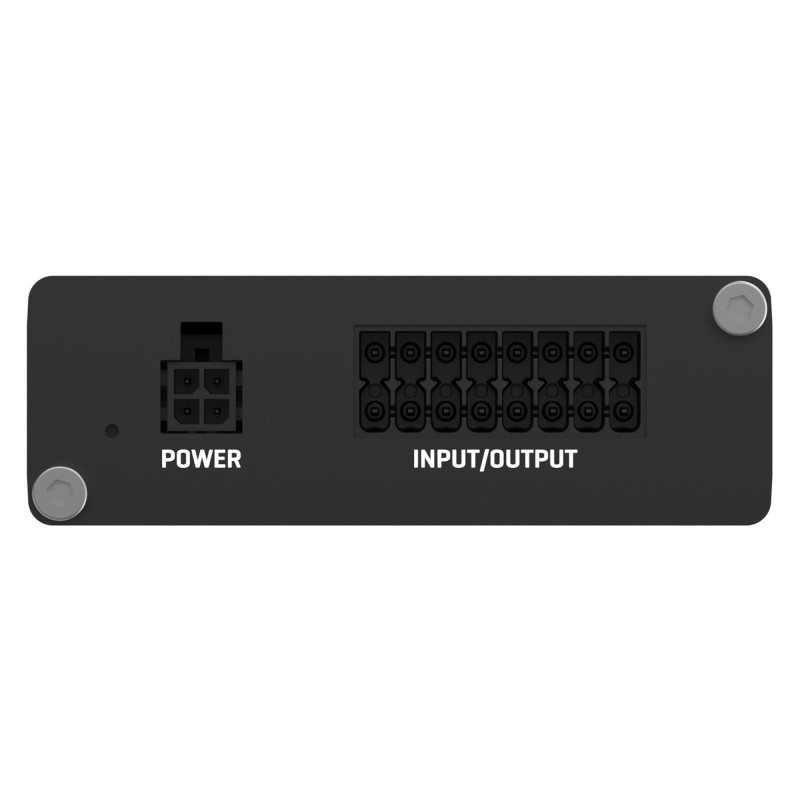

| I/Os | 16 Inputs/Outputs pin connector, 2 Inputs/Outputs pin on 4 pin power connector |
| Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V |
| Power | 4 pin power connector with 2 x configurable Digital Inputs/Outputs |
| Anntenas | 1 x SMA for LTE |
| Reset | Restore factory settings button |
| PHYSICAL SPECIFICATIONS | |
| Casing material | Aluminum housing |
| Dimensions | 60 mm x 70 mm x 18 mm (H x W x D) |
| Weight | 136 g |
| Mounting options | Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
REGULATORY TYPE APPROVALS
| Regulatory | CE/RED, EAC, RoHS, WEEE |
| EMI | |
| Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Surge protection | EN 61000-4-5:2014 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| RF | |
| Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
| SAFETY | |
| Standards | IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 |
| EN 50385:2017 | |
| EN 62232:2017 |
