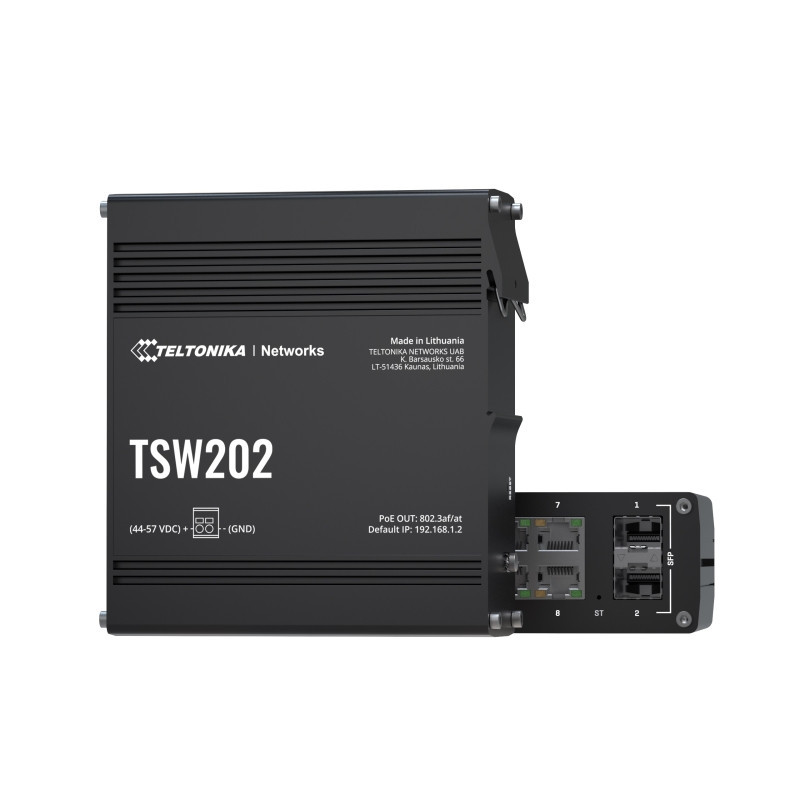

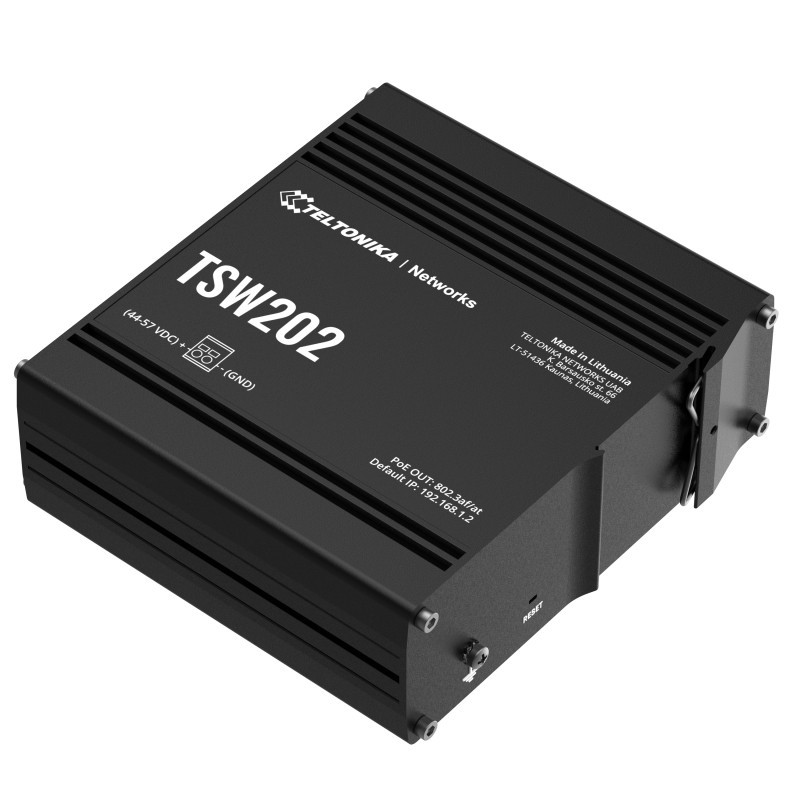

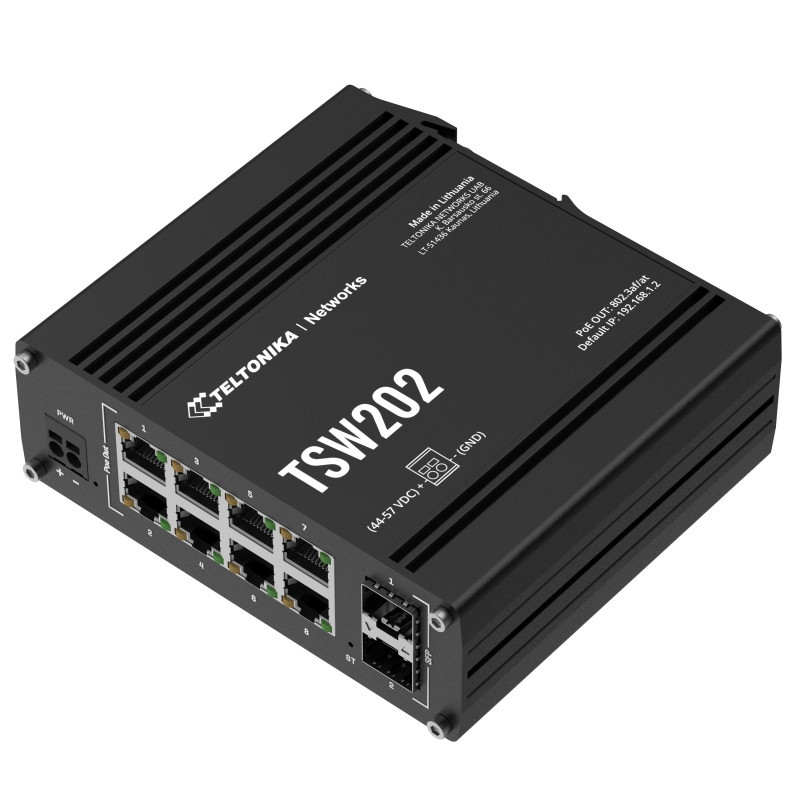

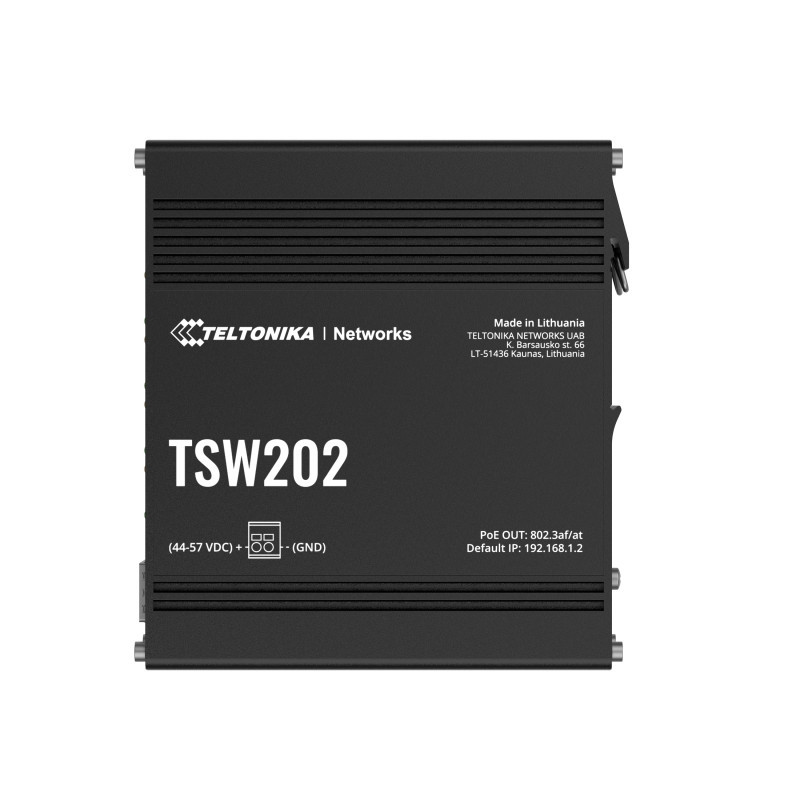

TELTONIKA Industrial Managed PoE+ Switch

TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.

MANAGED SWITCHL2 with additional L3 features for enhanced management and control

PoE+ SFP8 x port PoE+ switch with 2 x SFP ports for fiber optic communication

PROFINET MORESupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP

TSWOSeltonika Networks OS for switches, intuitively designed for infinite configurations

EthernetETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover Fibre: 2 x SFP ports IEEE 802.3 series standards: IEEE 802.1p, IEEE 802.1Q, 802.3az

PoE OutPoE ports: Port 1 - 8 PoE standards: 802.3af and 802.3at PoE Max Power per Port (at PSE): 30 W Total PoE Power Budget (at PSE): 240 W Maximum Ethernet cable length: 100 m

ServicesEtherNet/IP: Yes Profinet (class B): Yes SNMP V2, V3: Yes LLDP: Yes

NetworkMRP: MRP client role, MRP manager role L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP DHCP: DHCP server, DHCP client Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoSQOS: Port priority, DSCP priority, 802.1p priority, TOS Scheduling method: SP/WFQ/WRR Bandwidth control: Rate limiting, storm control Traffic Shaper: Port-based shaping

DiagnosticsTools: Cable diagnostic, ping, traceroute, nslookup

System CharacteristicsRAM: 128MB, DDR3 FLASH storage: 16 MB serial flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration

Firmware customizationOperating system: TSWOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps Packet buffer: 512 KB MAC address table size: 8K entries Jumbo frame support: 10000 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 7 - 57 VDC PoE-out input voltage range: 44 - 57 VDC Power consumption: Idle: < 3 W / Max: 8 W / PoE Max: 248 W

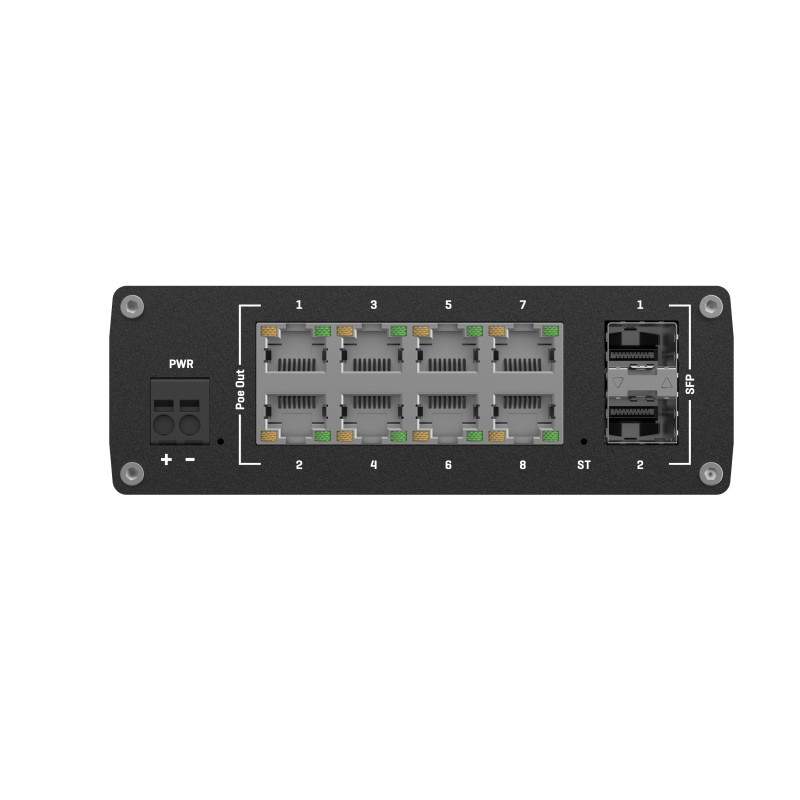

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100/1000 Mbps Fibre: 2 x SFP ports Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs Power: 1 x 2-pin industrial DC power socket Reset: Software reset button Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 132 x 44.2 x 122.2 mm Weight: 610 g Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions ImmunityStandards: EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2: 2019 + A1:2021 EN 61000-3-3: 2013 + A1:2019 + A2:2021 ESD: EN 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2020

SafetyStandards: CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018
