TELTONIKA pramoninis valdomas PoE+ komutatorius

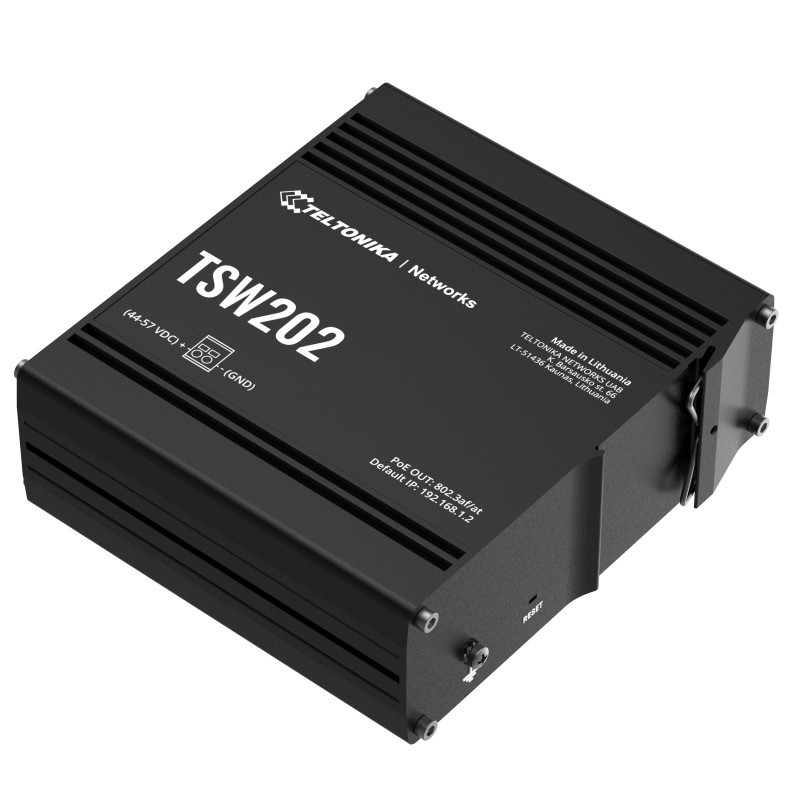

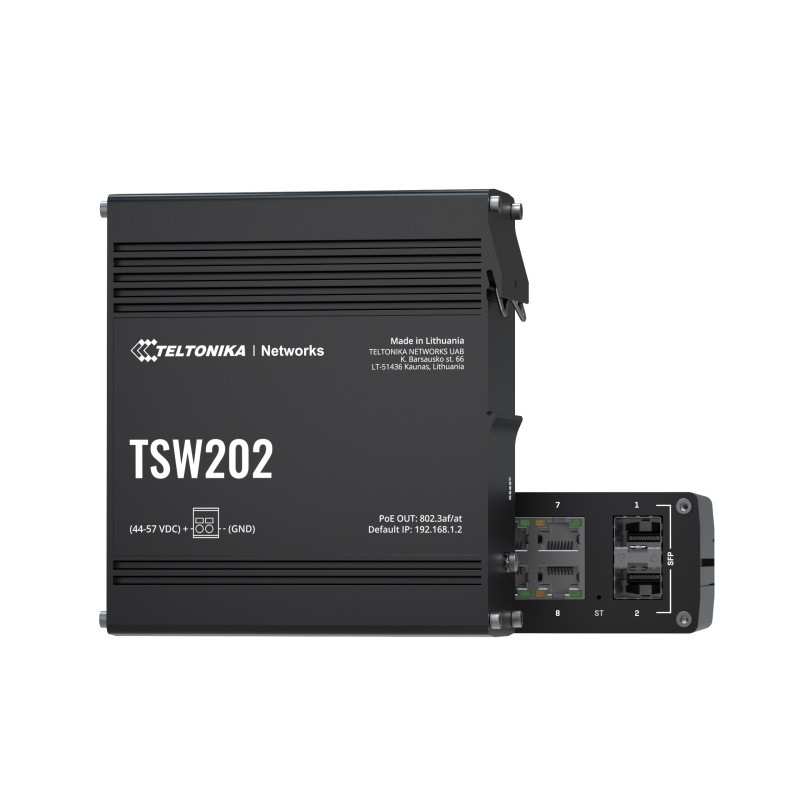

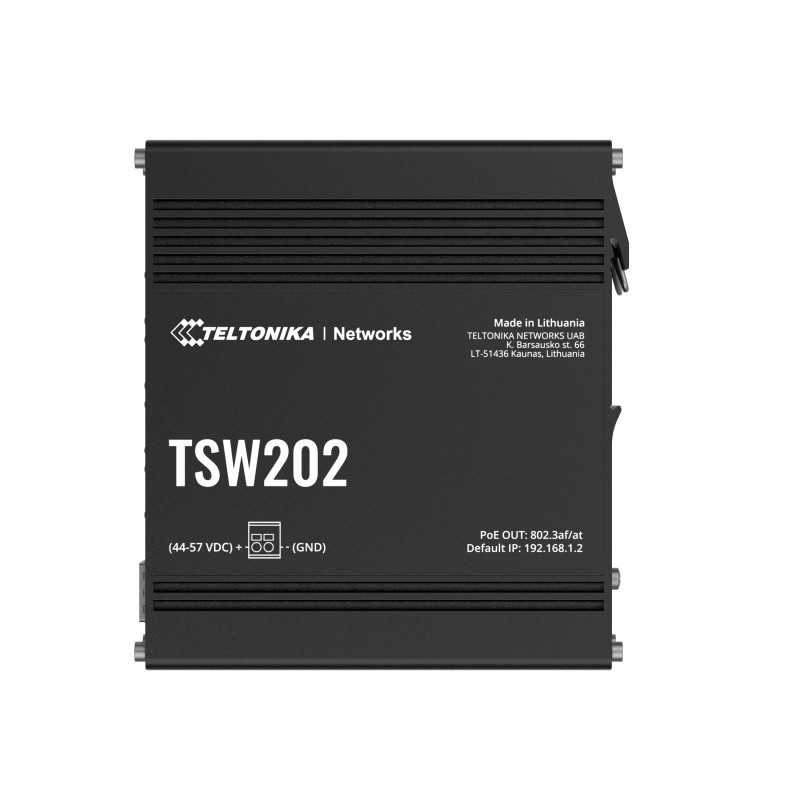

TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.

MANAGED SWITCHL2 with additional L3 features for enhanced management and control

PoE+ SFP8 x port PoE+ switch with 2 x SFP ports for fibre optic communication

PROFINET MORESupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP

TSWOSeltonika Networks OS for switches, intuitively designed for infinite configurations

EthernetETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

Fibre: 2 x SFP ports

IEEE 802.3 series standards: IEEE 802.1p, IEEE 802.1Q, 802.3az

PoE OutPoE ports: Port 1 - 8

PoE standards: 802.3af and 802.3at

PoE Max Power per Port (at PSE): 30 W

Total PoE Power Budget (at PSE): 240 W

Maximum Ethernet cable length: 100 m

ServicesEtherNet/IP: Yes

Profinet (class B): Yes

SNMP V2, V3: Yes

LLDP: Yes

NetworkMRP: MRP client role, MRP manager role

L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP: DHCP server, DHCP client

Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoSQOS: Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method: SP/WFQ/WRR

Bandwidth control: Rate limiting, storm control

Traffic Shaper: Port-based shaping

DiagnosticsTools: Cable diagnostic, ping, traceroute, nslookup

System CharacteristicsRAM: 128MB, DDR3

FLASH storage: 16 MB serial flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA: Update FW

RMS: Update FW/configuration for multiple devices at once

Keep settings: Update FW without losing current configuration

Firmware customisationOperating system: TSWOS (OpenWrt based Linux OS)

Supported languages: Busybox shell, Lua, C, C++

Development tools: SDK package with build environment provided

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps

Packet buffer: 512 KB

MAC address table size: 8K entries

Jumbo frame support: 10000 bytes

PowerConnector: 2-pin industrial DC power socket

Input voltage range: 7 - 57 VDC

PoE-out input voltage range: 44 - 57 VDC

Power consumption: Idle: < 3 W / Max: 8 W / PoE Max: 248 W

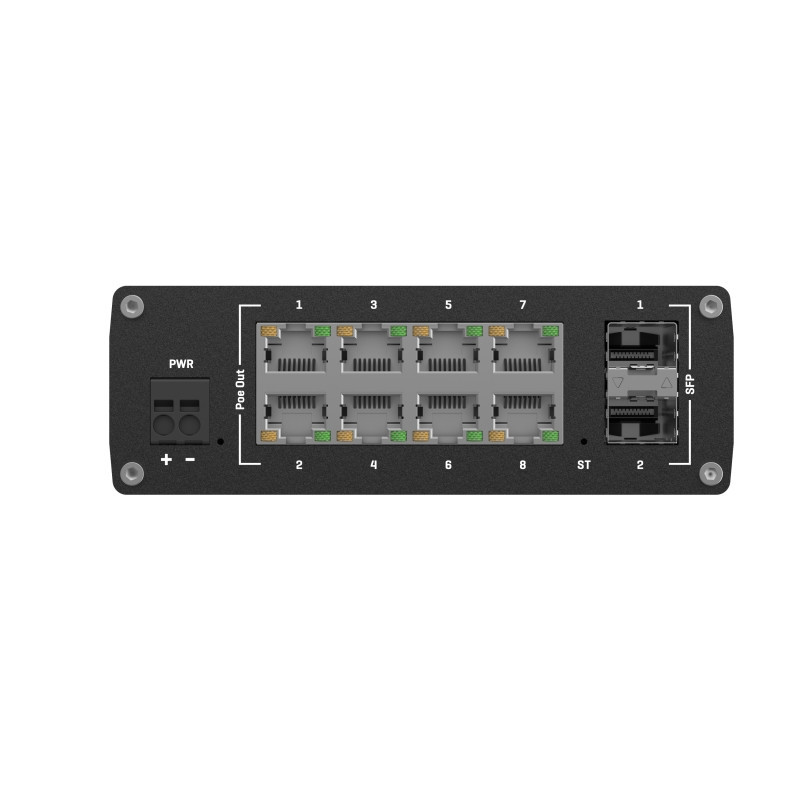

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100/1000 Mbps

Fibre: 2 x SFP ports

Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Power: 1 x 2-pin industrial DC power socket

Reset: Software reset button

Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 132 x 44.2 x 122.2 mm

Weight: 610 g

Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions ImmunityStandards:

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2: 2019 + A1:2021

EN 61000-3-3: 2013 + A1:2019 + A2:2021

ESD: EN 61000-4-2:2009

Radiated Immunity: EN IEC 61000-4-3:2020

EFT: EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

CS: EN 61000-4-6:2014

DIP: EN 61000-4-11:2020

SafetyStandards:

CE: EN IEC 62368-1:2020 + A11:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
