TELTONIKA Industrial L2 Managed Switch

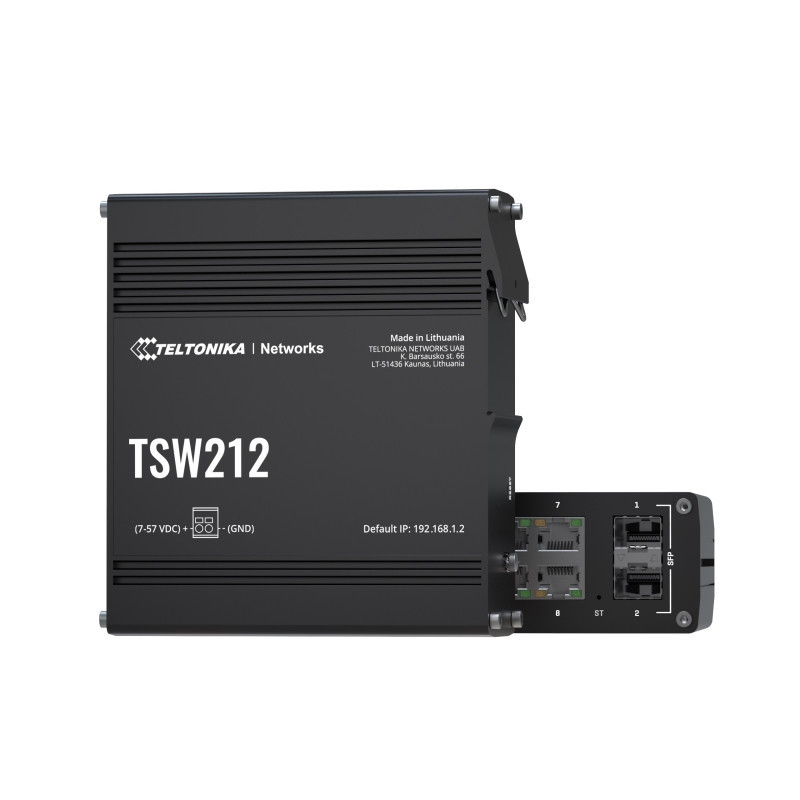

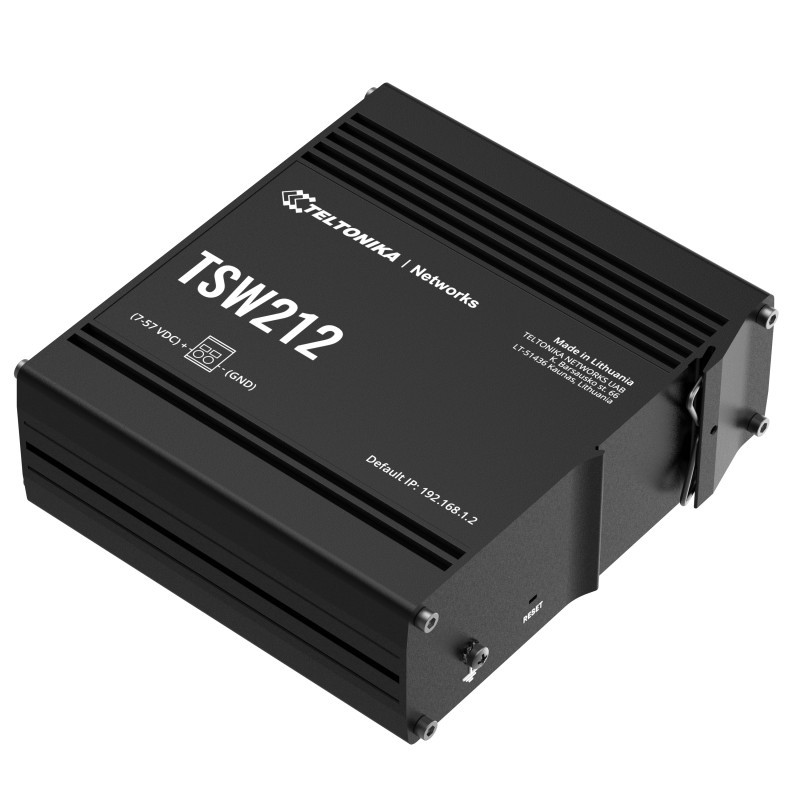

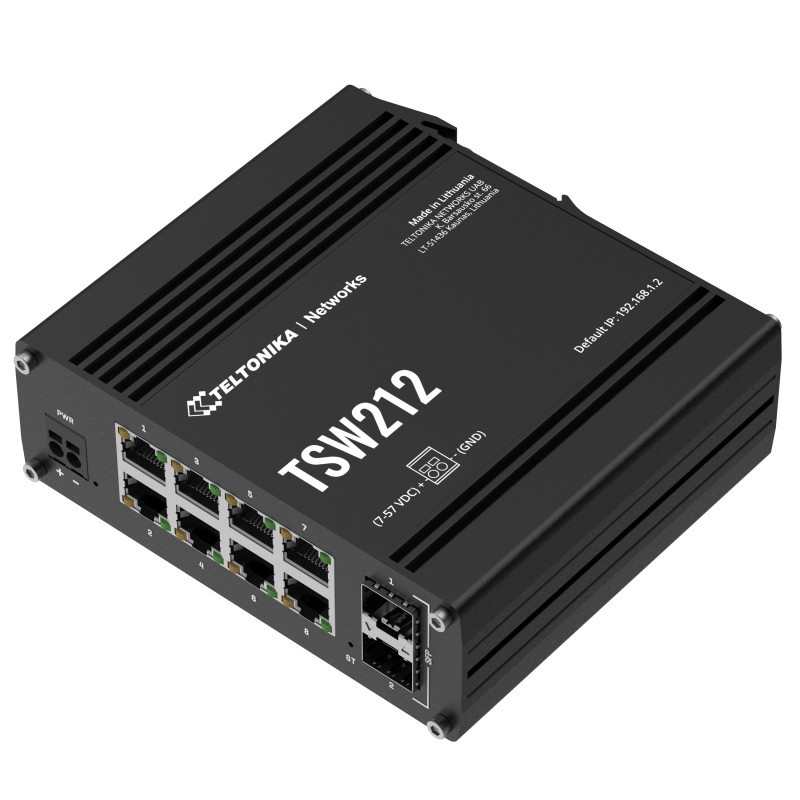

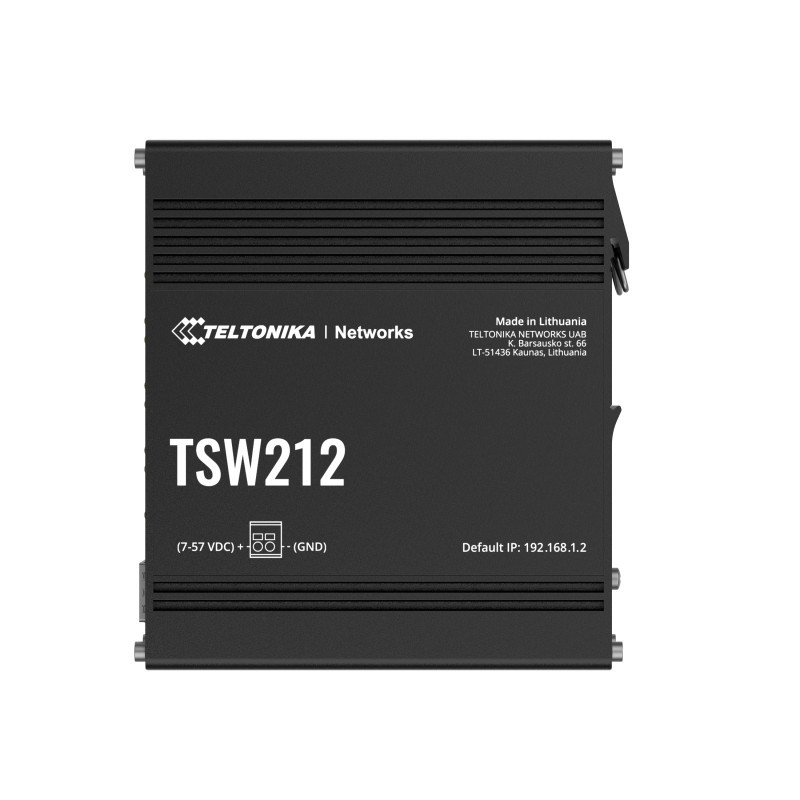

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fiber optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations - all with effortless installation thanks to an integrated DIN rail mount.

MANAGED SWITCHL2 with additional L3 features for advanced management capabilities

PROFINET MORESupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP

ETHERNET SFP8 x Gigabit Ethernet ports and 2 x SFP ports for fiber optic communication

TSWOSTeltonika Networks OS for switches, intuitively designed for infinite configurations

EthernetETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover Fibre: 2 x SFP ports IEEE 802.3 series standards: IEEE 802.1p, IEEE 802.1Q, 802.3az

ServicesEtherNet/IP: Yes Profinet (class B): Yes SNMP V2, V3: Yes LLDP: Yes

NetworkMRP: MRP client role, MRP manager role L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP DHCP: DHCP server, DHCP client Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoSQOS: Port priority, DSCP priority, 802.1p priority, TOS Scheduling method: SP/WFQ/WRR Bandwidth control: Rate limiting, storm control Traffic Shaper: Port-based shaping

DiagnosticsTools: Cable diagnostic, ping, traceroute, nslookup

System CharacteristicsRAM: 128MB, DDR3 FLASH storage: 16 MB serial flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration

Firmware customizationOperating system: TSWOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps Packet buffer: 512 KB MAC address table size: 8K entries Jumbo frame support: 10000 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 7 - 57 VDC Power consumption: Idle: < 2.5 W / Max: 6 W

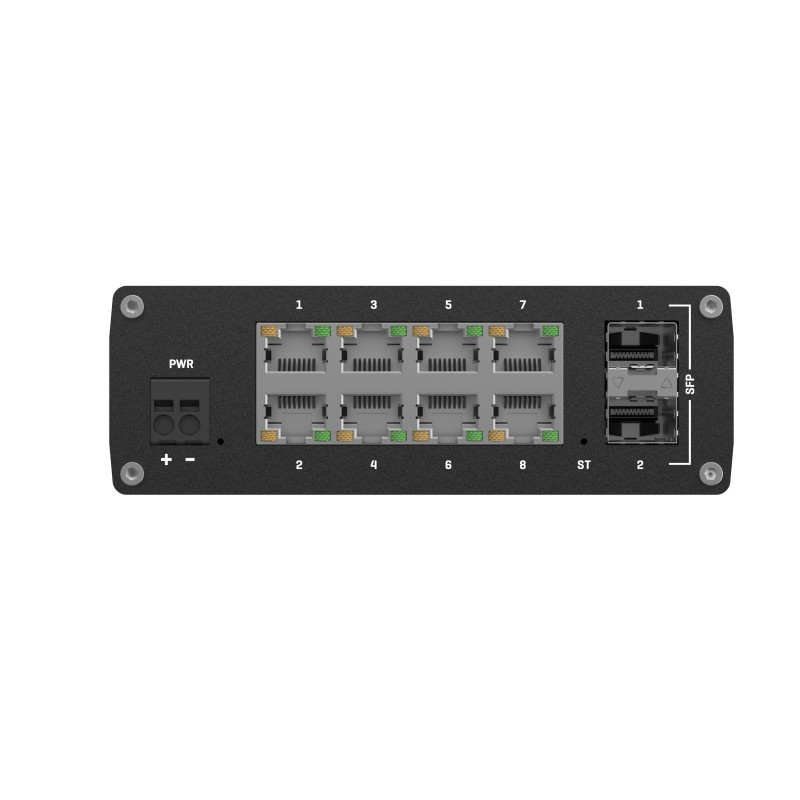

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100/1000 Mbps Fibre: 2 x SFP ports Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs Power: 1 x 2-pin industrial DC power socket Reset: Software reset button Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 132 x 44.2 x 122.2 mm Weight: 615 g Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions ImmunityStandards: EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2: 2019 + A1:2021 EN 61000-3-3: 2013 + A1:2019 + A2:2021 ESD: EN 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2020

SafetyStandards: CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018
