TELTONIKA pramoninis L2 valdomas komutatorius

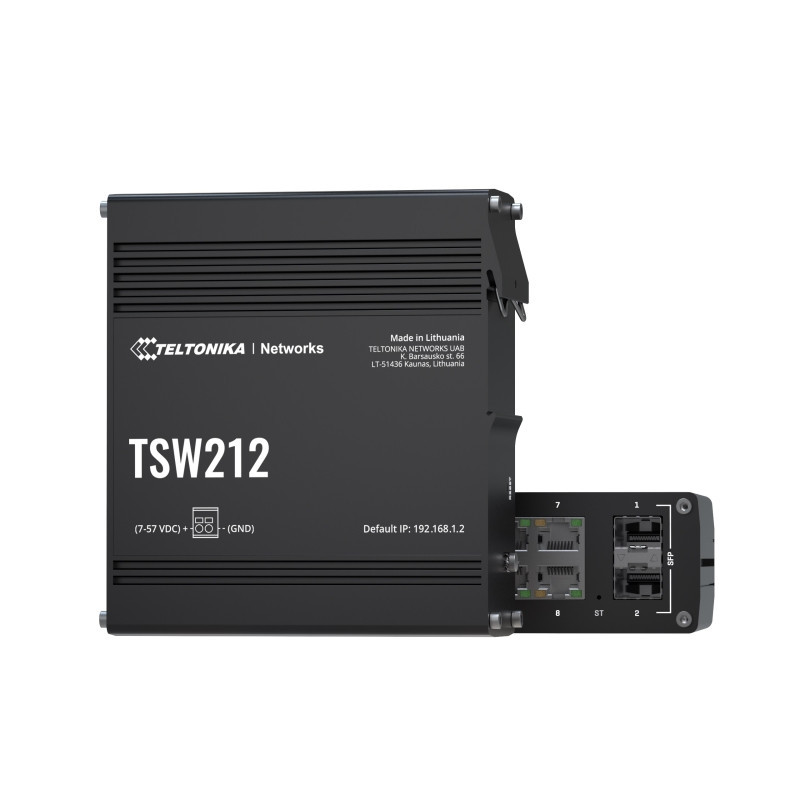

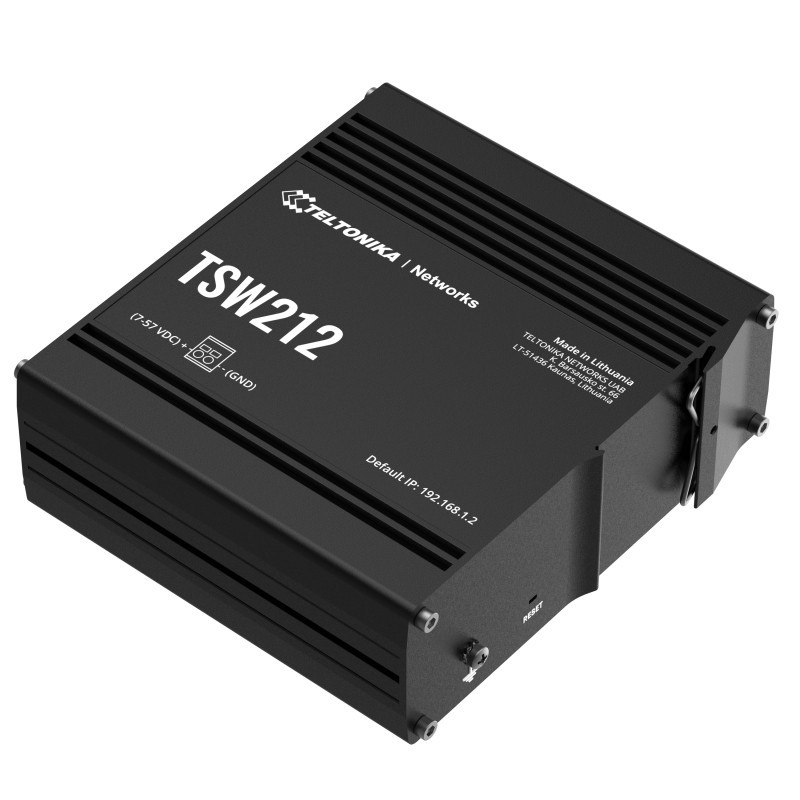

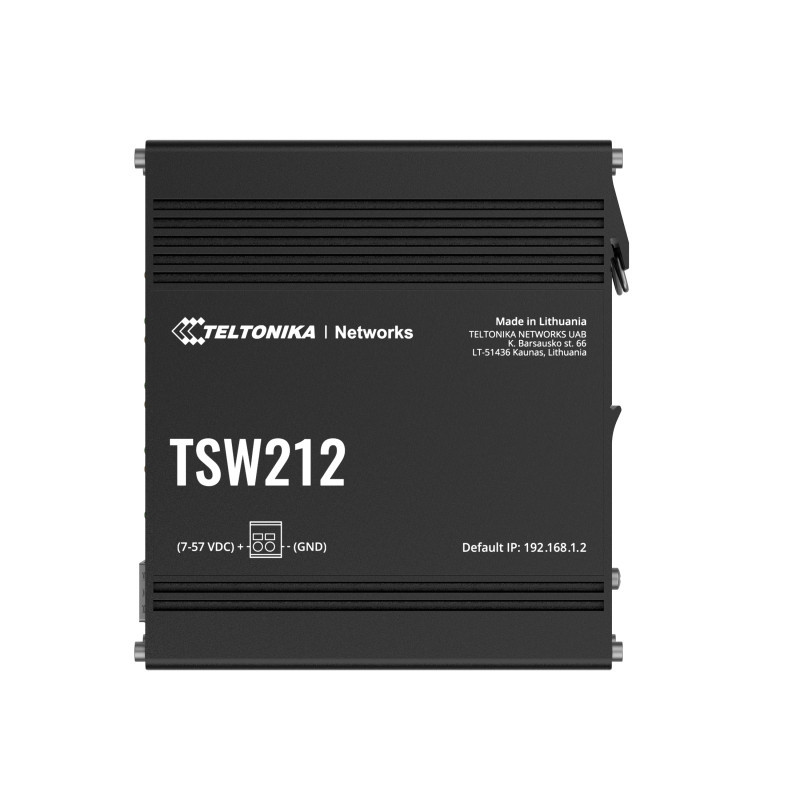

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations - all with effortless installation thanks to an integrated DIN rail mount.

MANAGED SWITCHL2 with additional L3 features for advanced management capabilities

PROFINET MORESupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP

ETHERNET SFP8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication

TSWOSTeltonika Networks OS for switches, intuitively designed for infinite configurations

EthernetETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

Fibre: 2 x SFP ports

IEEE 802.3 series standards: IEEE 802.1p, IEEE 802.1Q, 802.3az

ServicesEtherNet/IP: Yes

Profinet (class B): Yes

SNMP V2, V3: Yes

LLDP: Yes

NetworkMRP: MRP client role, MRP manager role

L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP: DHCP server, DHCP client

Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoSQOS: Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method: SP/WFQ/WRR

Bandwidth control: Rate limiting, storm control

Traffic Shaper: Port-based shaping

DiagnosticsTools: Cable diagnostic, ping, traceroute, nslookup

System CharacteristicsRAM: 128MB, DDR3

FLASH storage: 16 MB serial flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA: Update FW

RMS: Update FW/configuration for multiple devices at once

Keep settings: Update FW without losing current configuration

Firmware customisationOperating system: TSWOS (OpenWrt based Linux OS)

Supported languages: Busybox shell, Lua, C, C++

Development tools: SDK package with build environment provided

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps

Packet buffer: 512 KB

MAC address table size: 8K entries

Jumbo frame support: 10000 bytes

PowerConnector: 2-pin industrial DC power socket

Input voltage range: 7 - 57 VDC

Power consumption: Idle: < 2.5 W / Max: 6 W

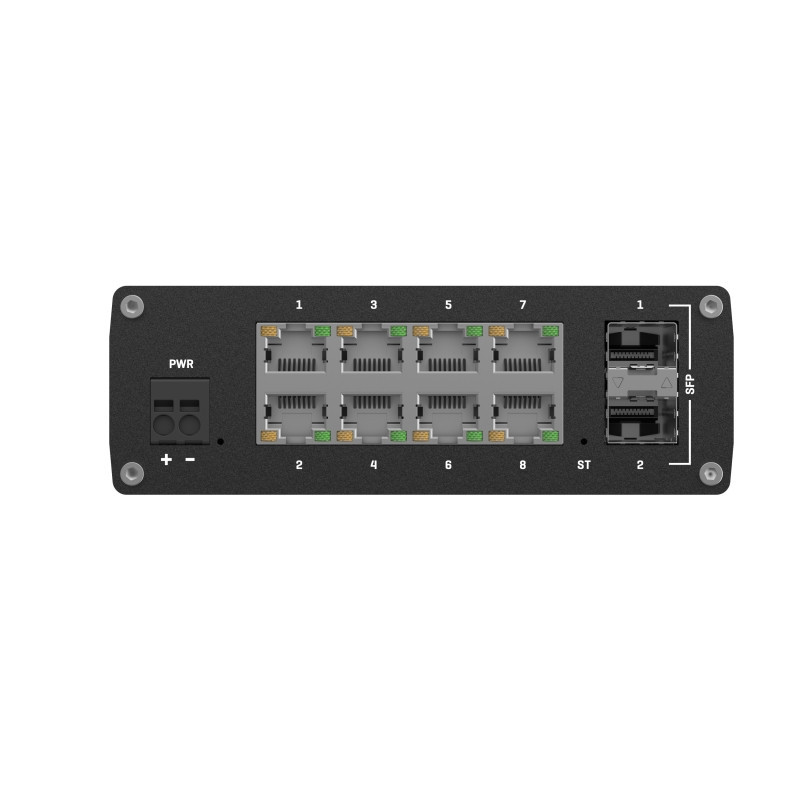

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100/1000 Mbps

Fibre: 2 x SFP ports

Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Power: 1 x 2-pin industrial DC power socket

Reset: Software reset button

Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 132 x 44.2 x 122.2 mm

Weight: 615 g

Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions ImmunityStandards:

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2: 2019 + A1:2021

EN 61000-3-3: 2013 + A1:2019 + A2:2021

ESD: EN 61000-4-2:2009

Radiated Immunity: EN IEC 61000-4-3:2020

EFT: EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

CS: EN 61000-4-6:2014

DIP: EN 61000-4-11:2020

SafetyStandards:

CE: EN IEC 62368-1:2020 + A11:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
