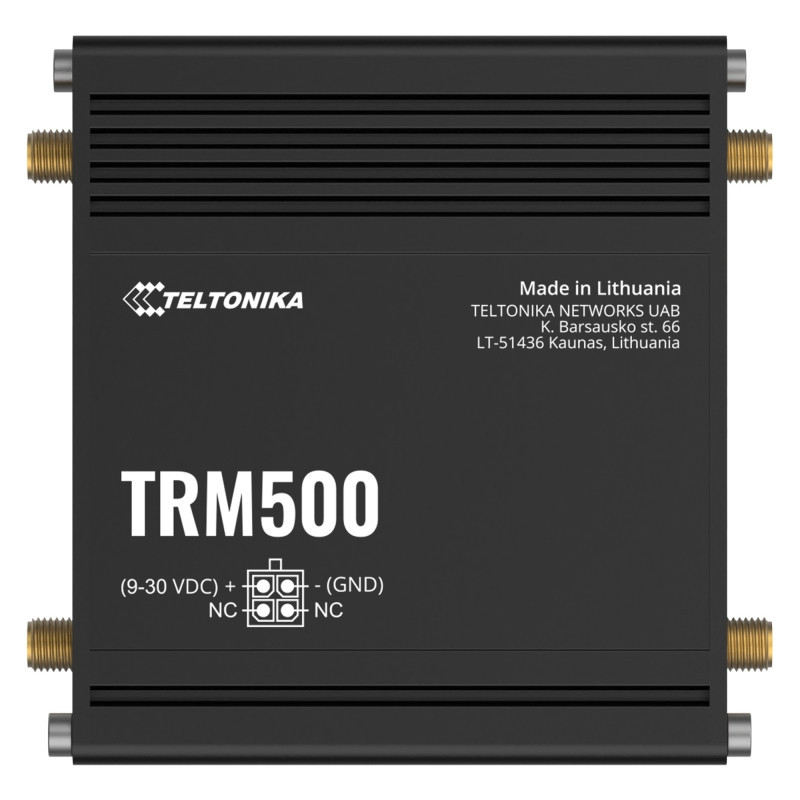

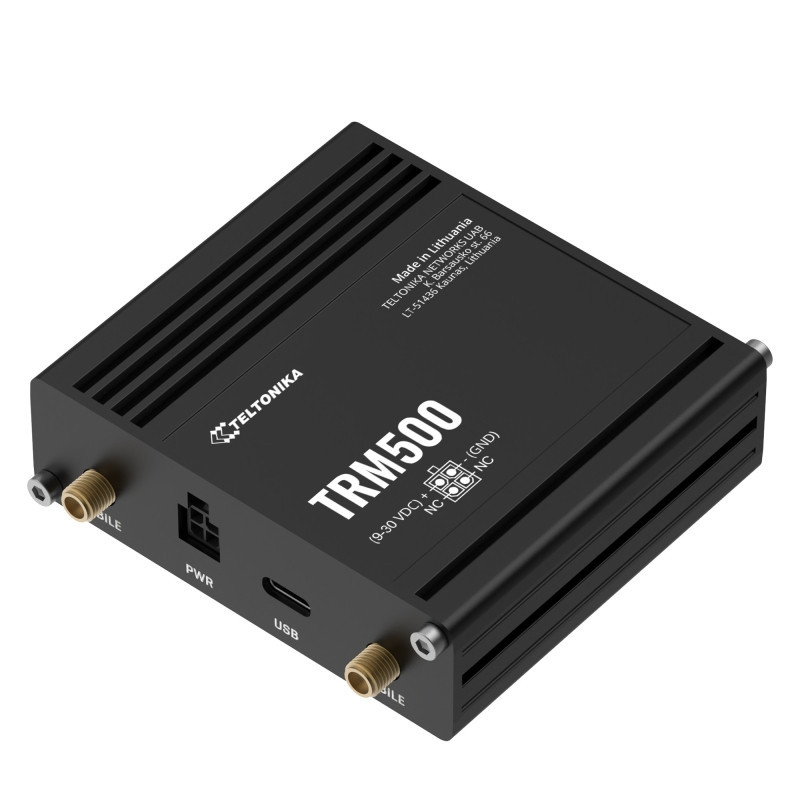

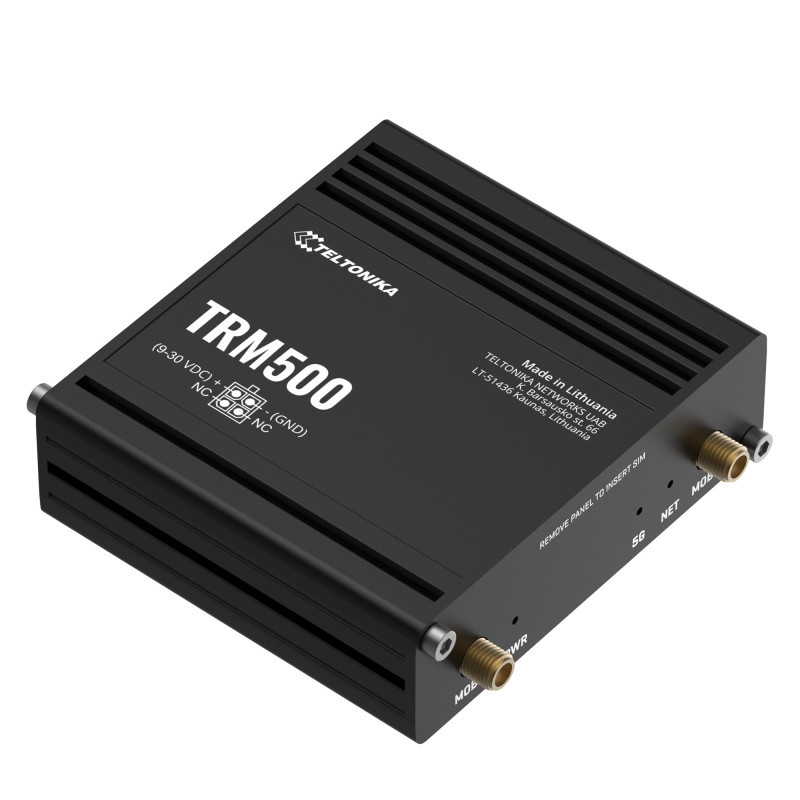

TELTONIKA Industrial 5G Modem with Type-C Interface

The TRM500 is a compact and lightweight 5G modem with ultra-fast mobile data rates of up to 3.4 Gbps. This industrial 5G modem supports 4G (Cat 19) and 3G networks and has four SMA antennas for greater coverage. The TRM500 can be mounted on a DIN rail and has a USB Type-C interface that can simultaneously transmit network data and supply power.

MobileMobile module: 5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL) 3GPP Release: Release 16

PowerConnector: 1 x 4-pin industrial DC power socket 1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port) Input voltage range: 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection > 35 VDC 10us max USB Type-C: 5 VDC Power consumption: Idle: < 5 W, Max: < 12 W

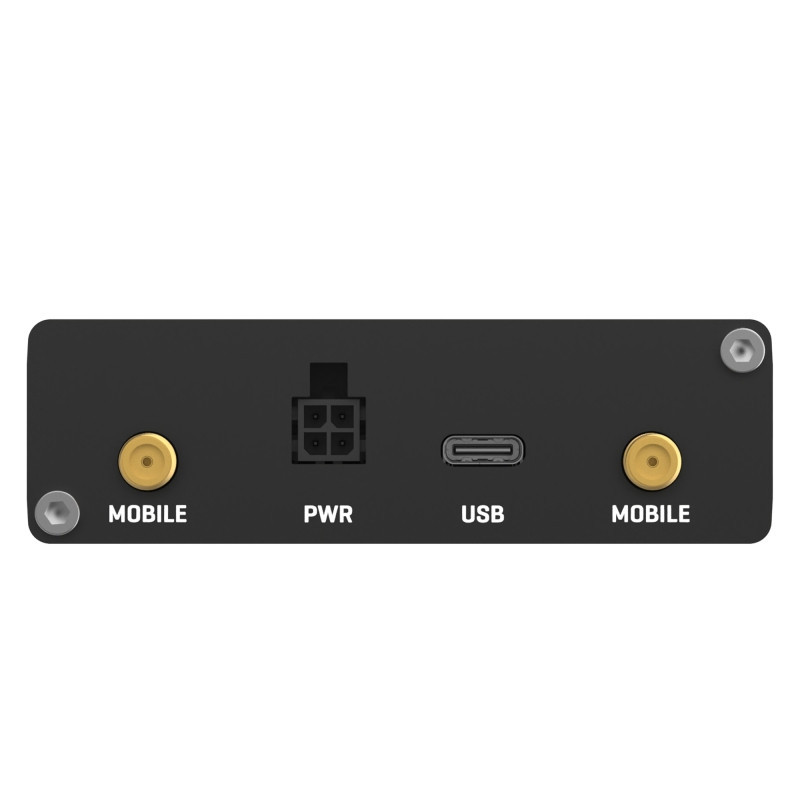

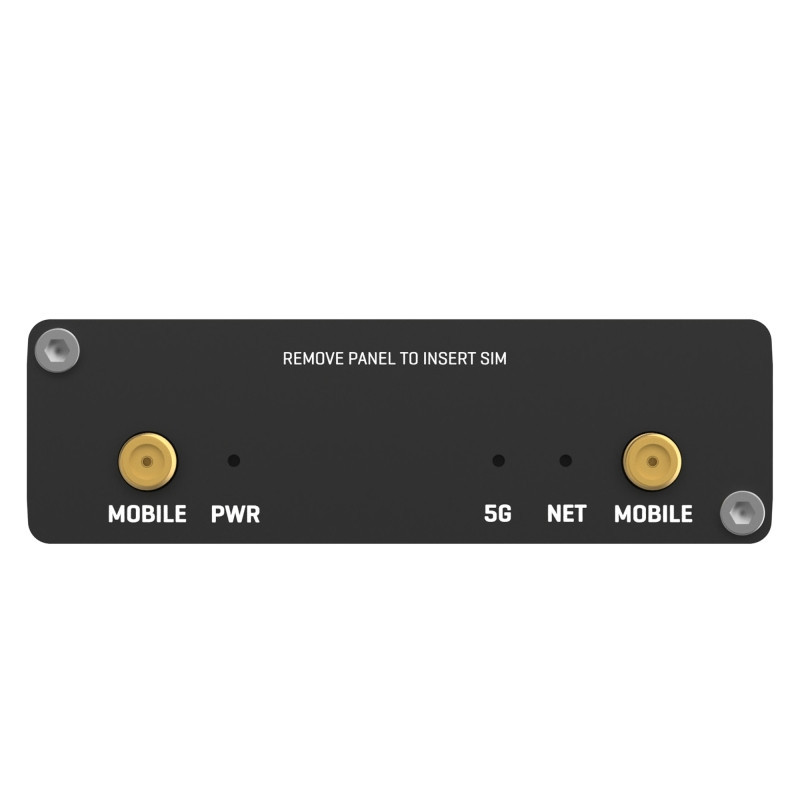

Physical InterfacesStatus LEDs: 1 x Power LED, 1 x 5G LED, 1 x Network LED SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V Power: 1 x 4-pin power connector 1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port) Antennas: 4 x SMA for Mobile Other: 1 x Virtual network interface via USB Type-C (For power and network data)

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 83 x 25 x 85.4 mm Weight: 94.5 g Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

TRM SoftwareManagement Software: Windows Connection Manager, Modem Manager (Linux) USB Serial Driver: Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13 GNSS Driver: Android 4.x ~ 13 RIL Driver: Android 4.x ~ 13 NDIS Driver: Windows 7/8/8.1/10/11 MBIM Driver: Windows 8/8.1/10/11, Linux 3.18~6.3 Gobinet Driver: Linux 2.6/3.x/4.1~4.14 QMI_WWAN Driver: Linux 3.4~6.3

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, CB, WEEE

EMC Emissions ImmunityStandards: EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 301 489-1 V2.2.3 EN 301 489-52 V1.2.1 AS/NZS CISPR 32:2015+A1:2020 ESD: EN 61000-4-2: 2009 Radiated Immunity: EN IEC 61000-4-3: 2020 EFT: EN 61000-4-4: 2012 Surge Immunity (AC Mains Power Port) EN 61000-4-5: 2014+A1: 2017 CS: EN 61000-4-6: 2014 DIP: EN IEC 61000-4-11:2020

RFStandards: EN 301 908-1 V15.2.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.2.1 EN 301 908-25 V15.1.1 AS/CA S042.1:2022 AS/CA S042.4:2022 AS/CA S042.5:2022+A1:2022 FCC Part 22 Draft EN 301 908-25 V15.1.1_0.0.21

SafetyStandards: CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020 RCM: AS/NZS CISPR 32: 2015+A1:2020 CB: EN IEC 62368-1:2020+A11:2020

Standard package:

• TRM500


• 9W PSU


• 4x 5G Mobile antenna (swivel, SMA male)


• 1x hex key


• SIM Adapter kit


• QSG (Quick Start Guide)


• USB Type-C cable (0.8 m)


• Packaging box
