TELTONIKA pramoninis 5G modemas su C tipo sąsaja

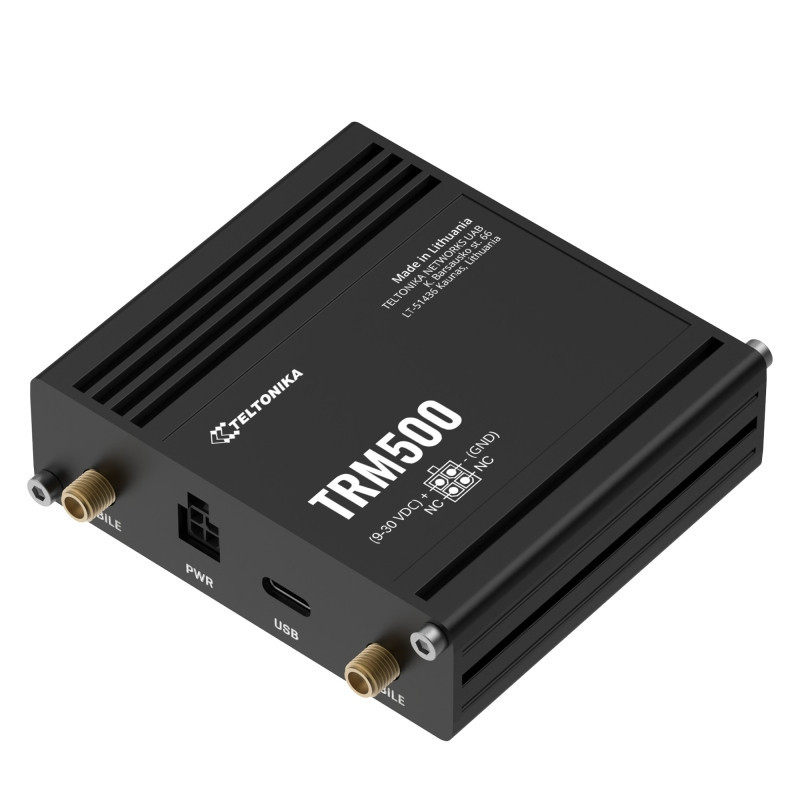

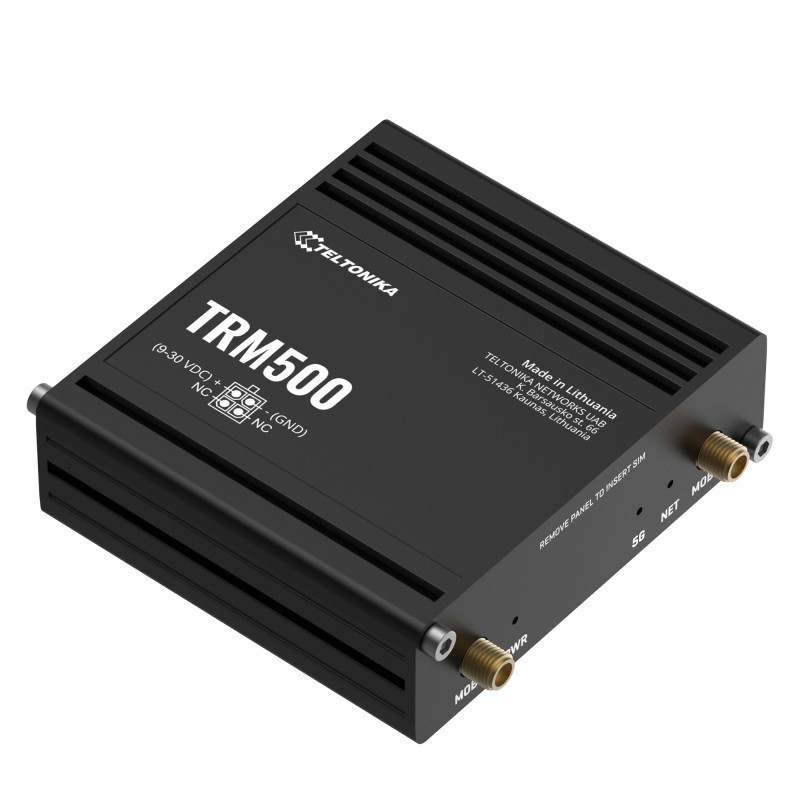

TRM500 yra kompaktiškas ir lengvas 5G modemas, pasižymintis itin didele, iki 3,4 Gbps, mobiliojo ryšio sparta. Šis pramoninis 5G modemas palaiko 4G (Cat 19) ir 3G tinklų ryšį bei turi keturias SMA antenas didesnei padengčiai užtikrinti. TRM500 gali būti montuojamas ant DIN bėgelio ir turi USB Type-C sąsają, per kurią vienu metu galima perduoti tinklo duomenis ir tiekti maitinimą.

MobileMobile module: 5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL)

3GPP Release: Release 16

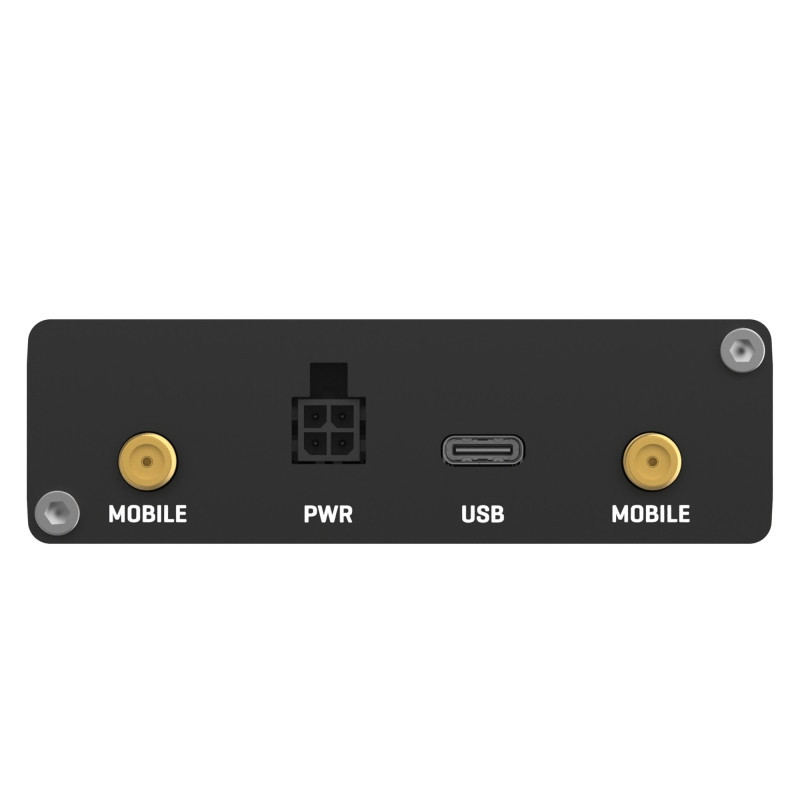

PowerConnector:

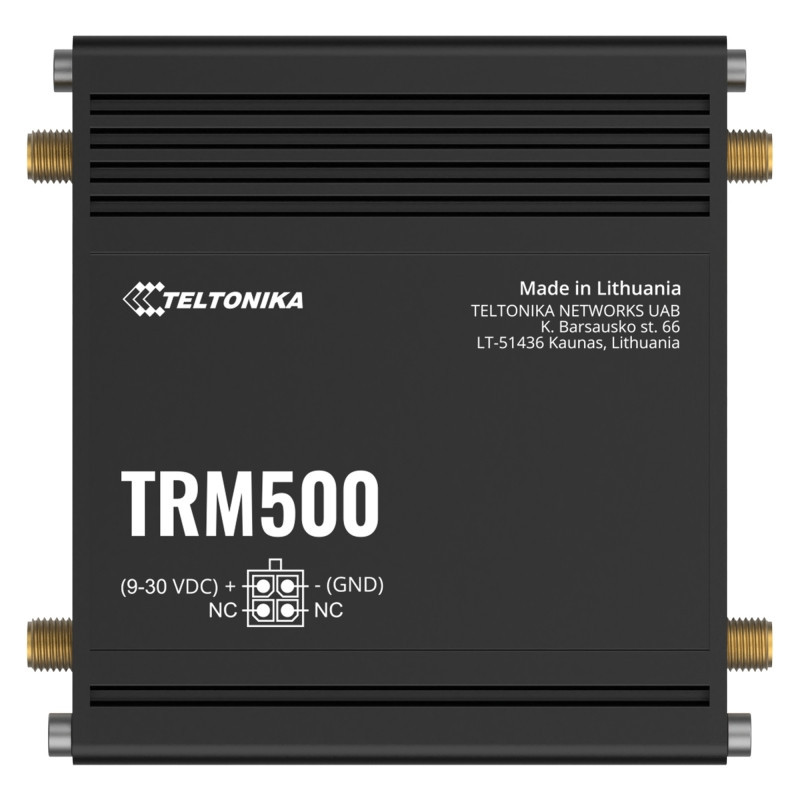

1 x 4-pin industrial DC power socket

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Input voltage range:

4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection > 35 VDC 10us max

USB Type-C: 5 VDC

Power consumption: Idle: < 5 W, Max: < 12 W

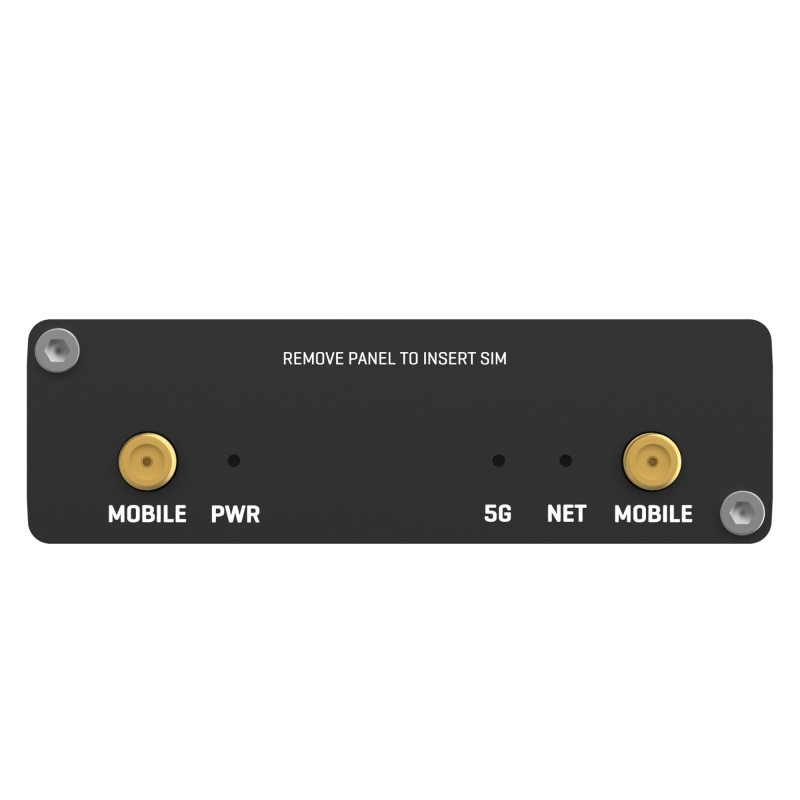

Physical InterfacesStatus LEDs: 1 x Power LED, 1 x 5G LED, 1 x Network LED

SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

Power:

1 x 4-pin power connector

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Antennas: 4 x SMA for Mobile

Other: 1 x Virtual network interface via USB Type-C (For power and network data)

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 83 x 25 x 85.4 mm

Weight: 94.5 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

TRM SoftwareManagement Software: Windows Connection Manager, Modem Manager (Linux)

USB Serial Driver: Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13

GNSS Driver: Android 4.x ~ 13

RIL Driver: Android 4.x ~ 13

NDIS Driver: Windows 7/8/8.1/10/11

MBIM Driver: Windows 8/8.1/10/11, Linux 3.18~6.3

Gobinet Driver: Linux 2.6/3.x/4.1~4.14

QMI_WWAN Driver: Linux 3.4~6.3

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, CB, WEEE

EMC Emissions ImmunityStandards:

EN 55032:2015+A1:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 301 489-1 V2.2.3

EN 301 489-52 V1.2.1

AS/NZS CISPR 32:2015+A1:2020

ESD: EN 61000-4-2: 2009

Radiated Immunity: EN IEC 61000-4-3: 2020

EFT: EN 61000-4-4: 2012

Surge Immunity (AC Mains Power Port) EN 61000-4-5: 2014+A1: 2017

CS: EN 61000-4-6: 2014

DIP: EN IEC 61000-4-11:2020

RFStandards:

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

EN 301 908-25 V15.1.1

AS/CA S042.1:2022

AS/CA S042.4:2022

AS/CA S042.5:2022+A1:2022

FCC Part 22

Draft EN 301 908-25 V15.1.1_0.0.21

SafetyStandards:

CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020

RCM: AS/NZS CISPR 32: 2015+A1:2020

CB: EN IEC 62368-1:2020+A11:2020

Standard package:

• TRM500


• 9 W PSU


• 4x 5G Mobile antenna (swivel, SMA male)


• 1x hex key


• SIM Adapter kit


• QSG (Quick Start Guide)


• USB Type-C cable (0.8 m)


• Packaging box
