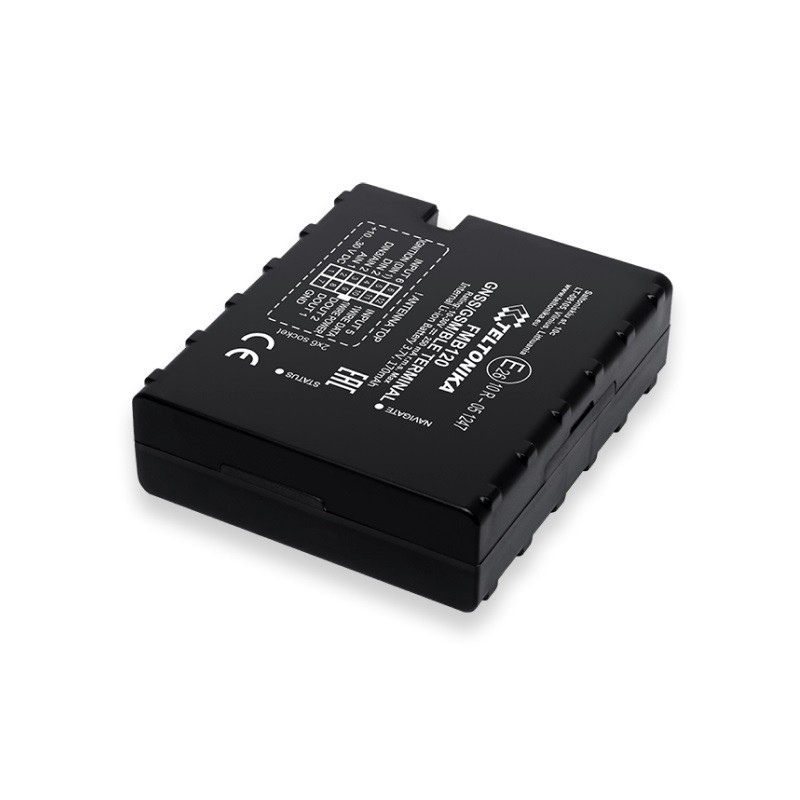

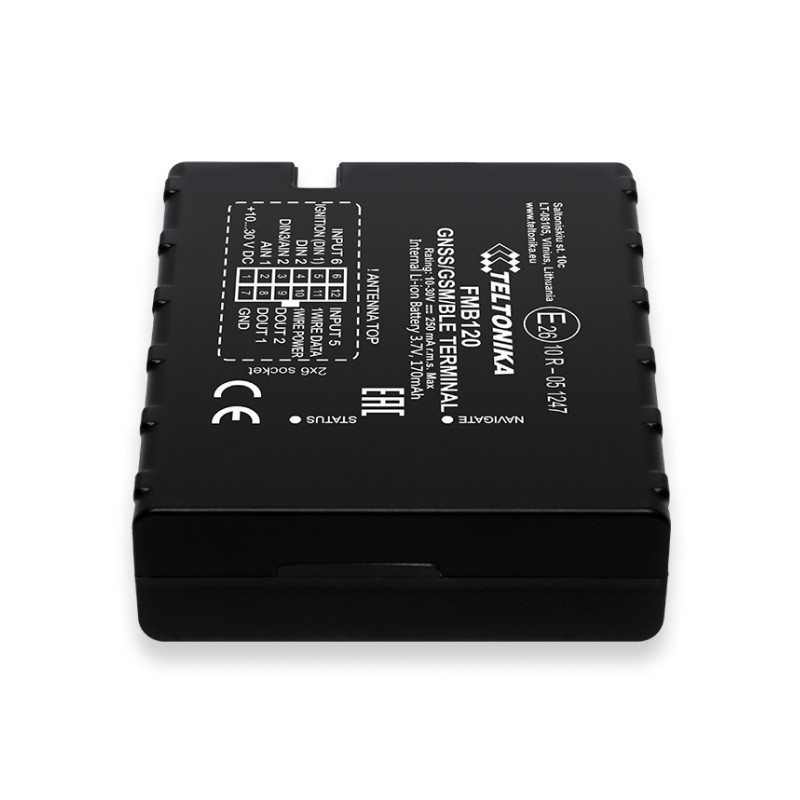

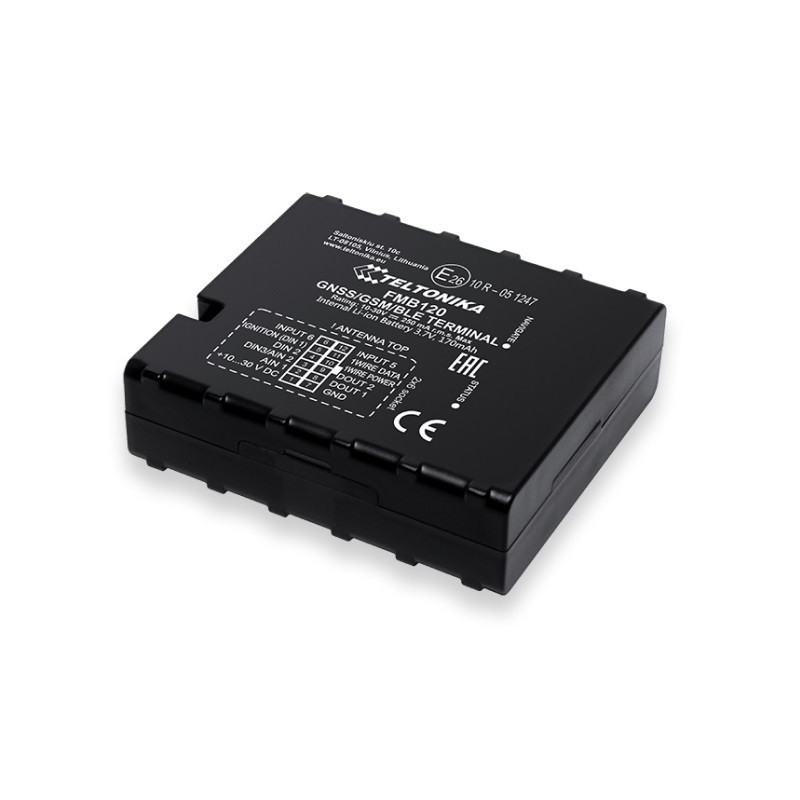

TELTONIKA GNSS / GSM / Bluetooth tracker with internal GNSS / GSM antennas and internal battery

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquisition of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door, etc.

ModuleName: TM2500 Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSSGNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver: 33 channel Tracking sensitivity: -165 dBM Accuracy: < 3 m Hot start: < 1 s Warm start: < 25 s Cold start: < 35 s

CellularTechnology: GSM 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support: SMS (text/data)

PowerInput voltage range: 10 - 30 V DC with overvoltage protection Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption: At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Sleep) At 12V < 20 mA (GPS Sleep) At 12V < 35 mA (nominal)

BluetoothSpecification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

InterfaceDigital Inputs: 3 Digital Outputs: 2 Analog Inputs: 2 CAN Adapter inputs: 1 1-Wire: 1 GNSS antenna: Internal High Gain GSM antenna: Internal High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Micro-SIM + eSIM Memory: 128MB internal flash memory

Physical specificationDimensions: 65 x 56.6 x 18.9 mm (L x W x H) Weight: 55 g

Operating environmentOperating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP41 Battery charge temperature: -0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

FeaturesSensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GPS, NITZ, NTP Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certifications ApprovalsRegulatory: CE/RED, E-Mark, EAC, RoHS, REACH
