TELTONIKA GNSS / GSM / Bluetooth sekiklis su vidinėmis GNSS / GSM antenomis ir vidine baterija

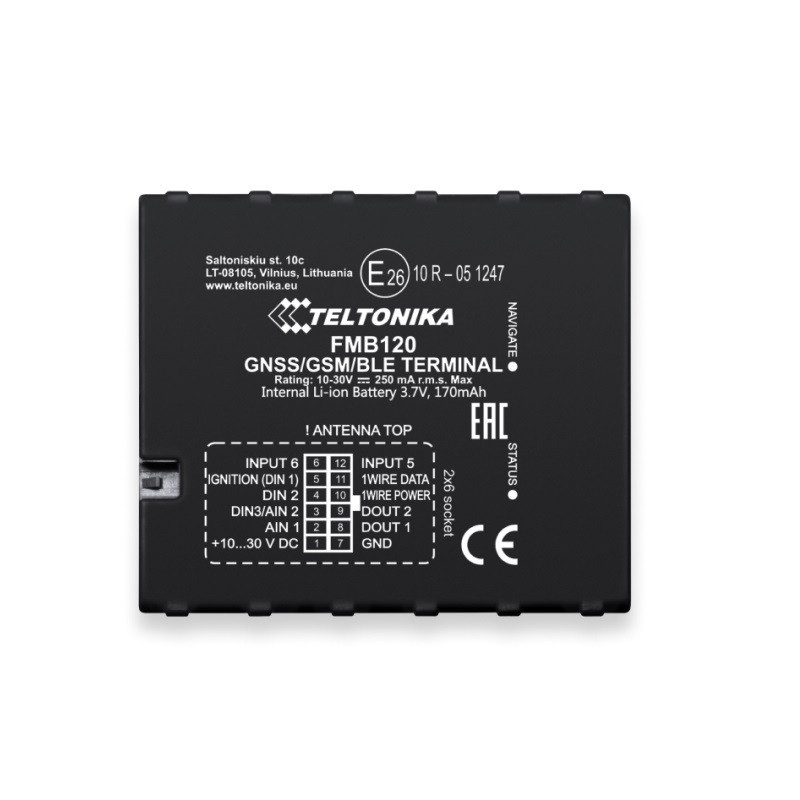

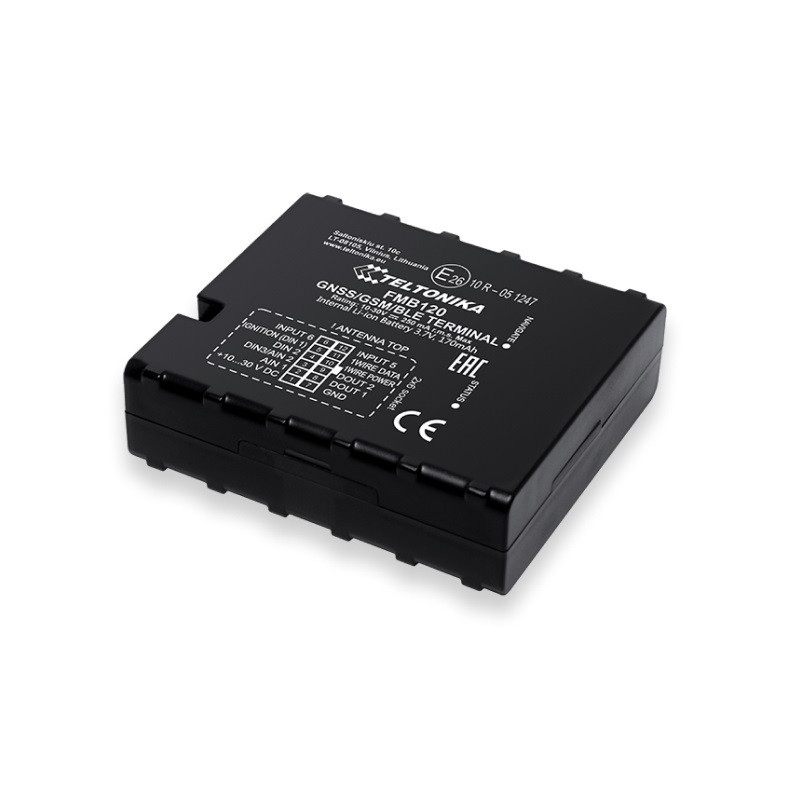

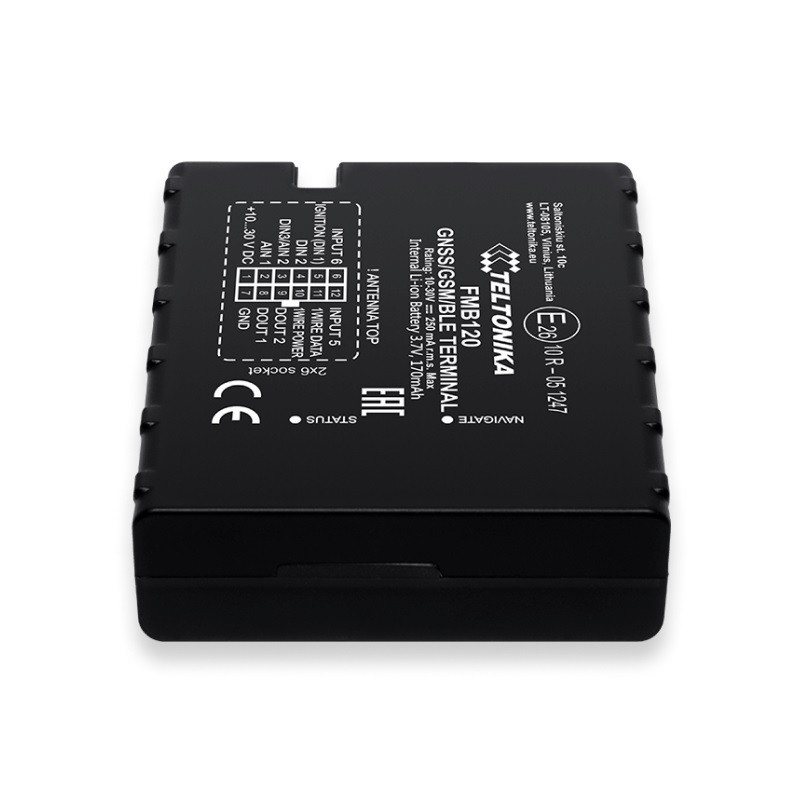

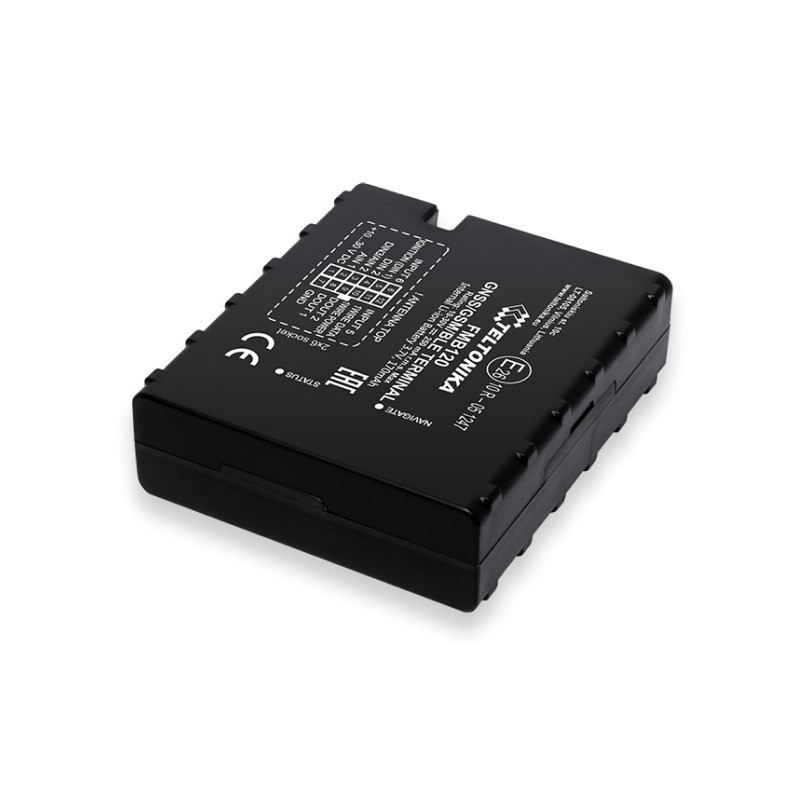

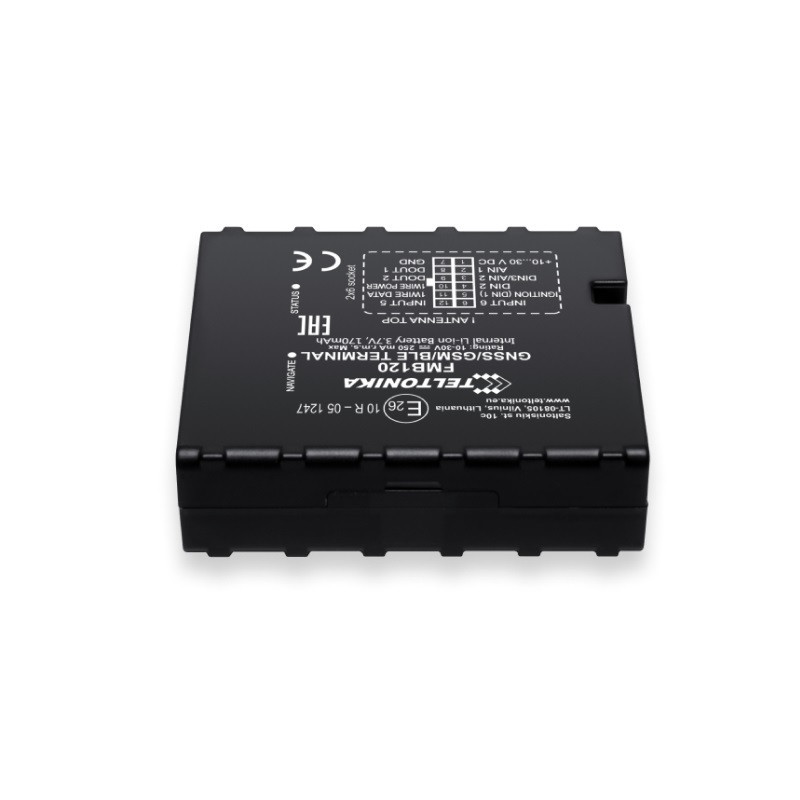

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

ModuleName: TM2500

Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSSGNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver: 33 channel

Tracking sensitivity: -165 dBM

Accuracy: < 3 m

Hot start: < 1 s

Warm start: < 25 s

Cold start: < 35 s

CellularTechnology: GSM

2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support: SMS (text/data)

PowerInput voltage range: 10 - 30 V DC with overvoltage protection

Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption:

At 12V < 6 mA (Ultra Deep Sleep)

At 12V < 8 mA (Deep Sleep)

At 12V < 11 mA (Online Sleep)

At 12V < 20 mA (GPS Sleep)

At 12V < 35 mA (nominal)

BluetoothSpecification: 4.0 + LE

Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

InterfaceDigital Inputs: 3

Digital Outputs: 2

Analog Inputs: 2

CAN Adapter inputs: 1

1-Wire: 1

GNSS antenna: Internal High Gain

GSM antenna: Internal High Gain

USB: 2.0 Micro-USB

LED indication: 2 status LED lights

SIM: Micro-SIM + eSIM

Memory: 128MB internal flash memory

Physical specificationDimensions: 65 x 56,6 x 18,9 mm (L x W x H)

Weight: 55 g

Operating environmentOperating temperature (without battery): -40 °C to +85 °C

Storage temperature (without battery): -40 °C to +85 °C

Operating humidity: 5% to 95% non-condensing

Ingress Protection Rating: IP41

Battery charge temperature: -0 °C to +45 °C

Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

FeaturesSensors: Accelerometer

Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS: Configuration, Events, DOUT control, Debug

GPRS commands: Configuration, DOUT control, Debug

Time Synchronization: GPS, NITZ, NTP

Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle

Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certification ApprovalsRegulatory: CE/RED, E-Mark, EAC, RoHS, REACH
