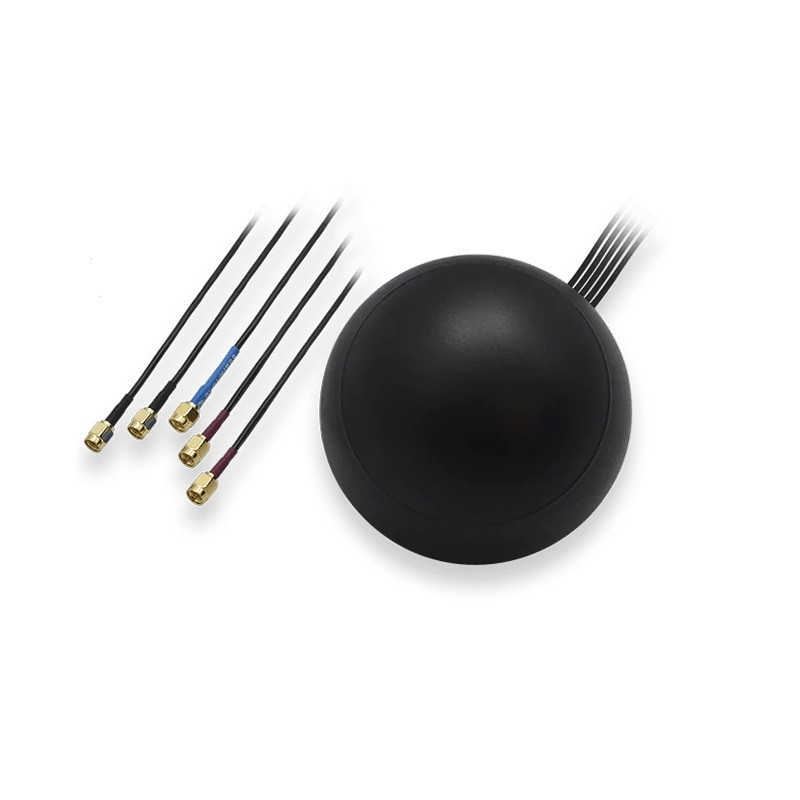

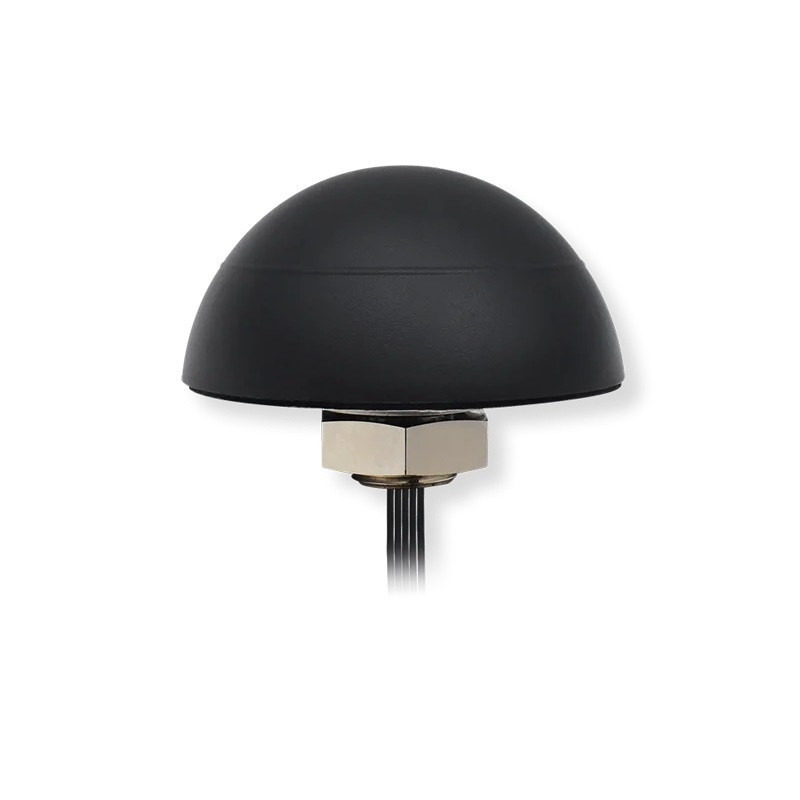

TELTONIKA COMBO MIMO Mobile / GNSS / WIFI ROOF SMA Antenna

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and some other Teltonika products

GNSS Antenna

Frequency Range: 1575.42-1610 MHz Polarization: RHCP Impedance: 50 Ω LNA Gain: 28±2 dB LNA Noise Figure: < 1.5 dB Supply Voltage: 3-5 VDC Current Consumption: < 15 mA LNA VSWR: <2.0 Connector: SMA Male

LTE MIMO Antenna

Frequency Range: 698-960/1710-2690 MHz Polarization: Linear Gain: 3 dBi VSWR: <3.0 Impedance: 50 Ω Connector: 2x SMA Male

WiFi MIMO Antenna

Frequency Range: 2400-2483.5/4900-5825 MHz Polarization: Linear Gain: 2 dBi VSWR: <2.5 Impedance: 50 Ω Connector: 2x RP SMA Male

Mechanical/Environmental

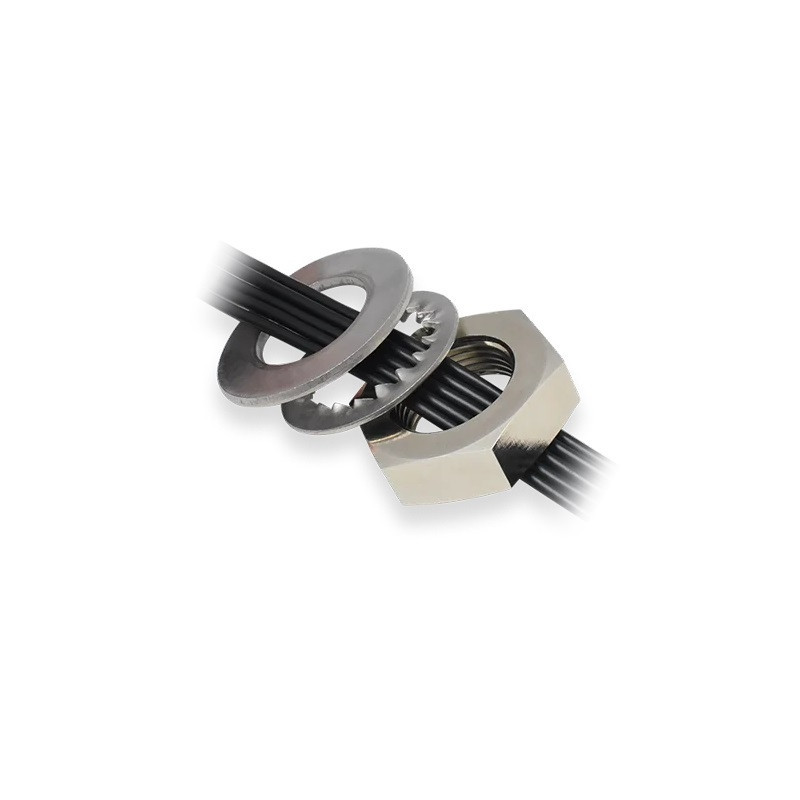

Mounting Method: Screw Radome Ingress Protection rating: IP67 Radome Material: ABS Weight: <550g Housing Dimensions: Ø 110x55 mm Cable: 5x RG174, 3000 mm RoHS Compliant: Yes
