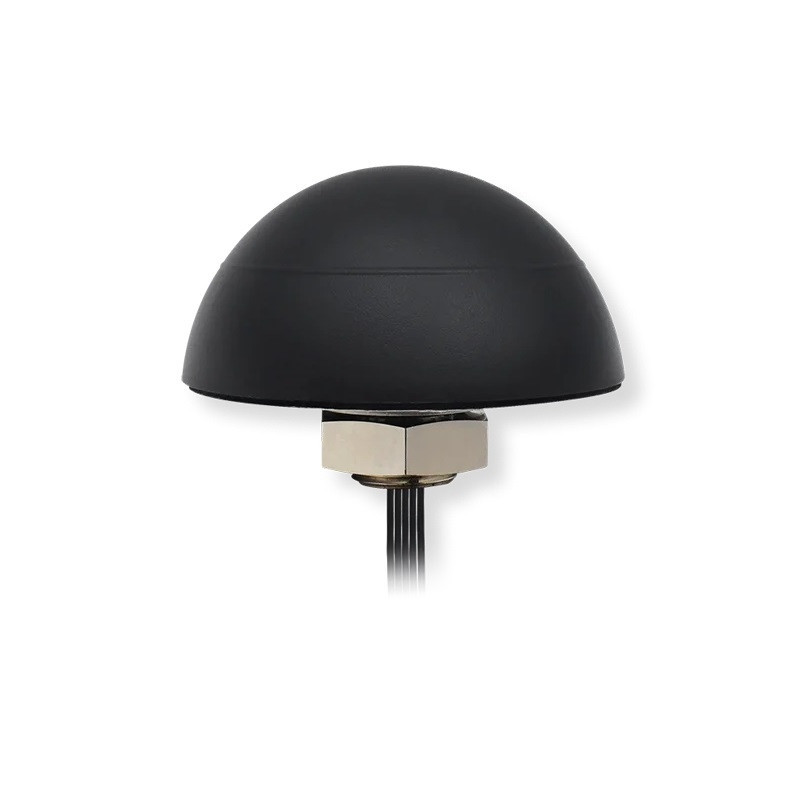

TELTONIKA COMBO MIMO mobili / GNSS / WIFI stogo SMA antena

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and some other Teltonika products

GNSS Antenna

Frequency Range: 1575.42-1610 MHz

Polarization: RHCP

Impedance: 50 Ω

LNA Gain: 28±2 dB

LNA Noise Figure: < 1.5 dB

Supply Voltage: 3-5 VDC

Current Consumption: < 15 mA

LNA V.S.W.R: <2.0

Connector: SMA Male

LTE MIMO Antenna

Frequency Range: 698-960/1710-2690 MHz

Polarization: Linear

Gain: 3 dBi

V.S.W.R.: <3.0

Impedance: 50 Ω

Connector: 2x SMA Male

WiFi MIMO Antenna

Frequency Range: 2400-2483.5/4900-5825 MHz

Polarization: Linear

Gain: 2 dBi

V.S.W.R: <2.5

Impedance: 50 Ω

Connector: 2x RP SMA Male

Mechanical/Environmental

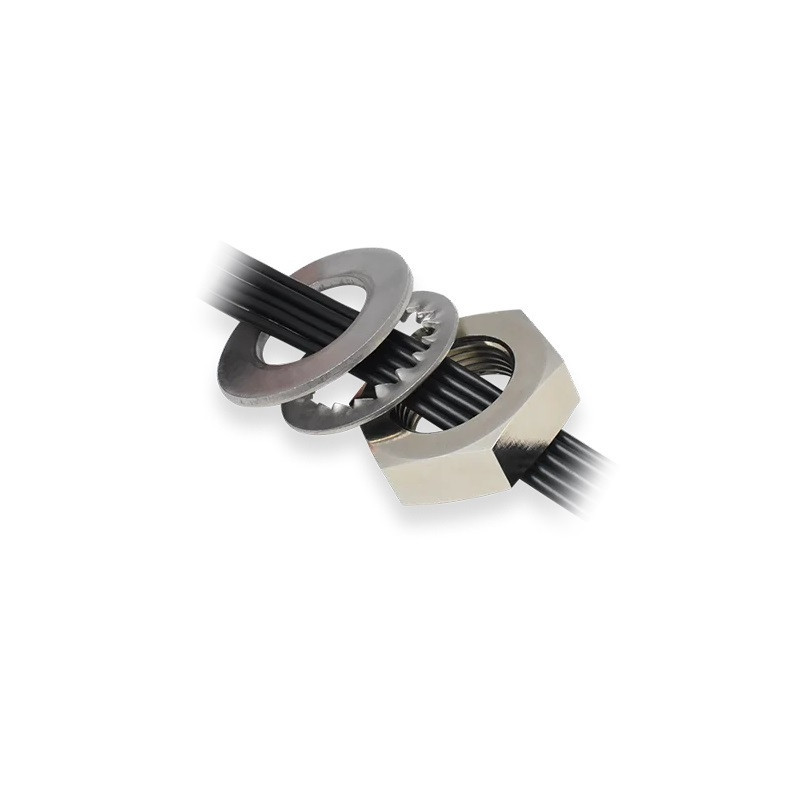

Mounting Method: Screw

Radome Ingress Protection rating: IP67

Radome Material: ABS

Weight: <550g

Housing Dimensions: Ø 110x55 mm

Cable: 5x RG174, 3000 mm

RoHS Compliant: Yes
