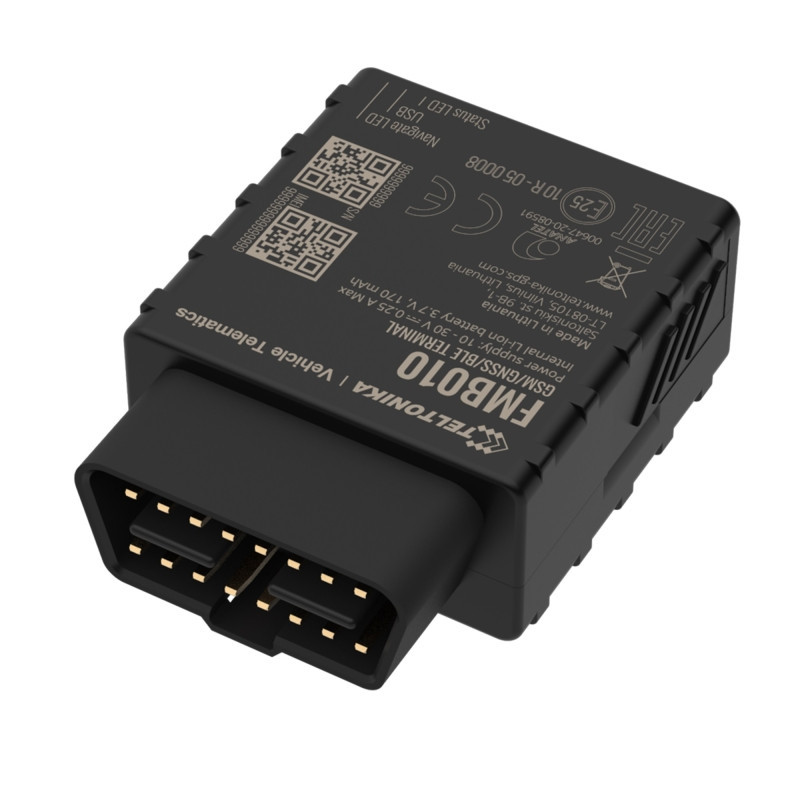

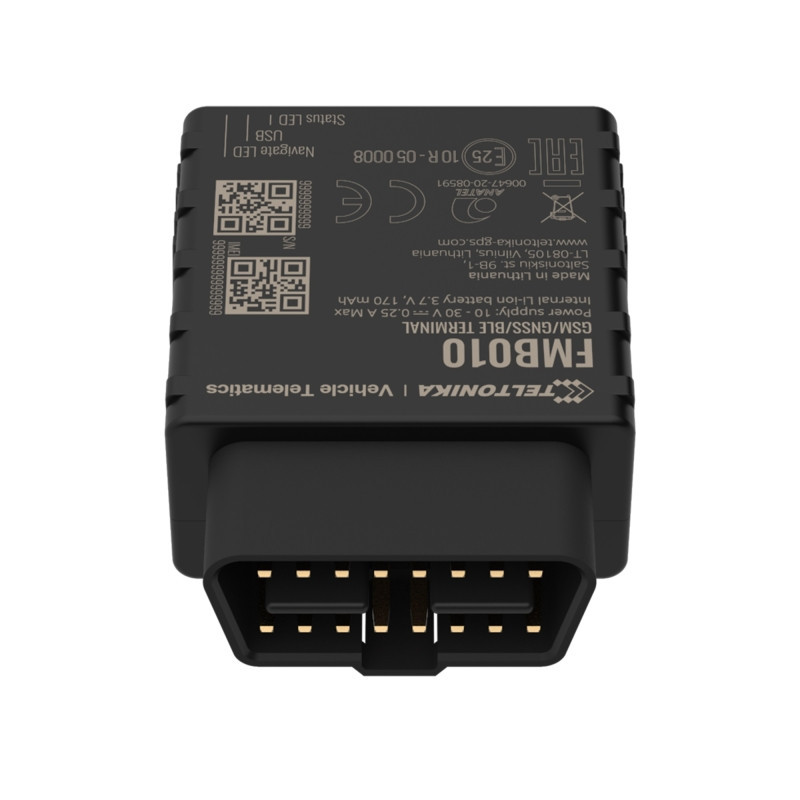

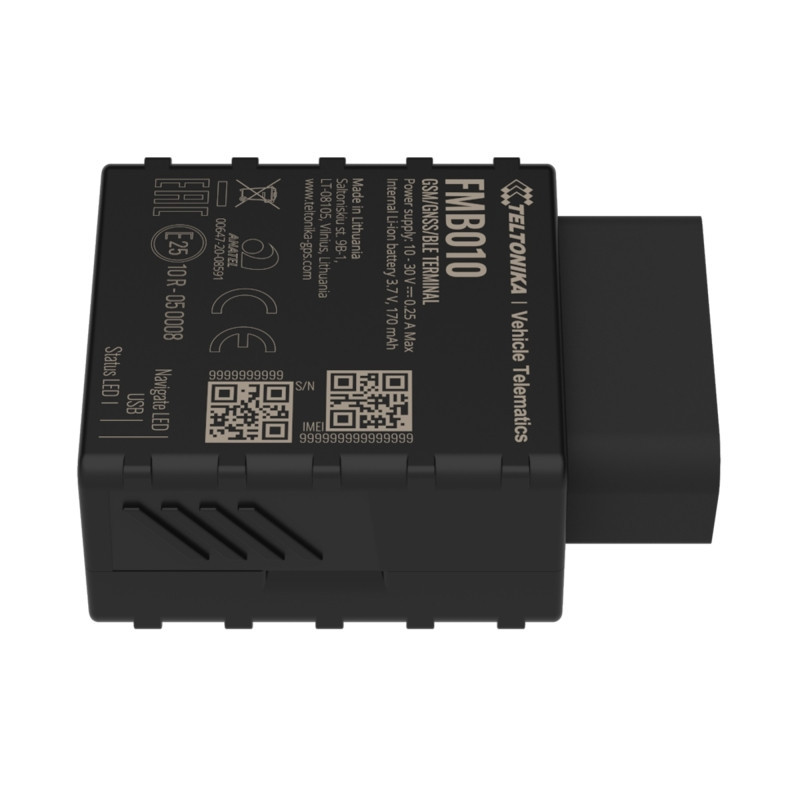

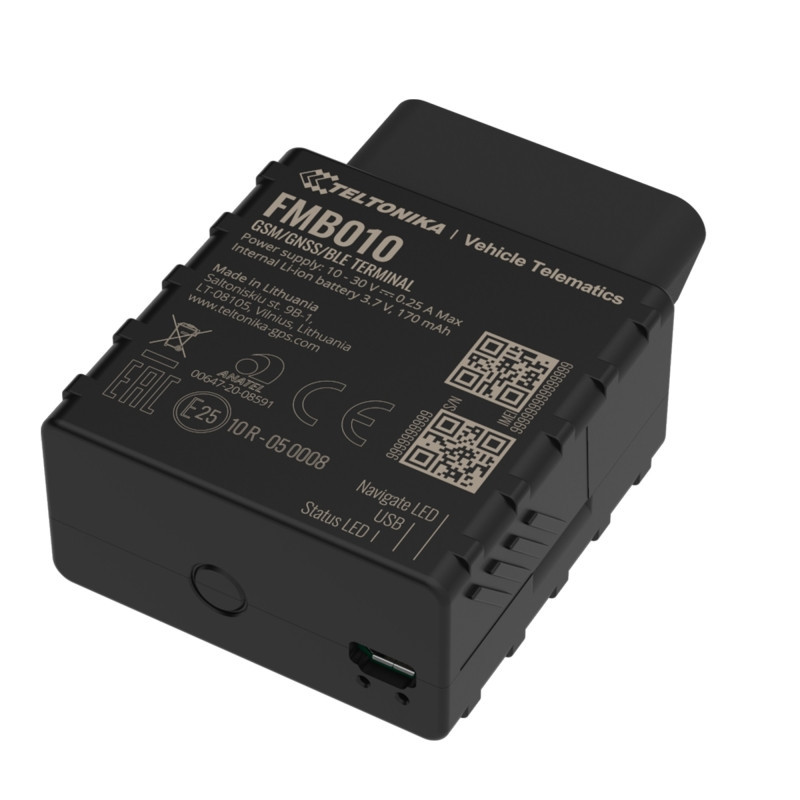

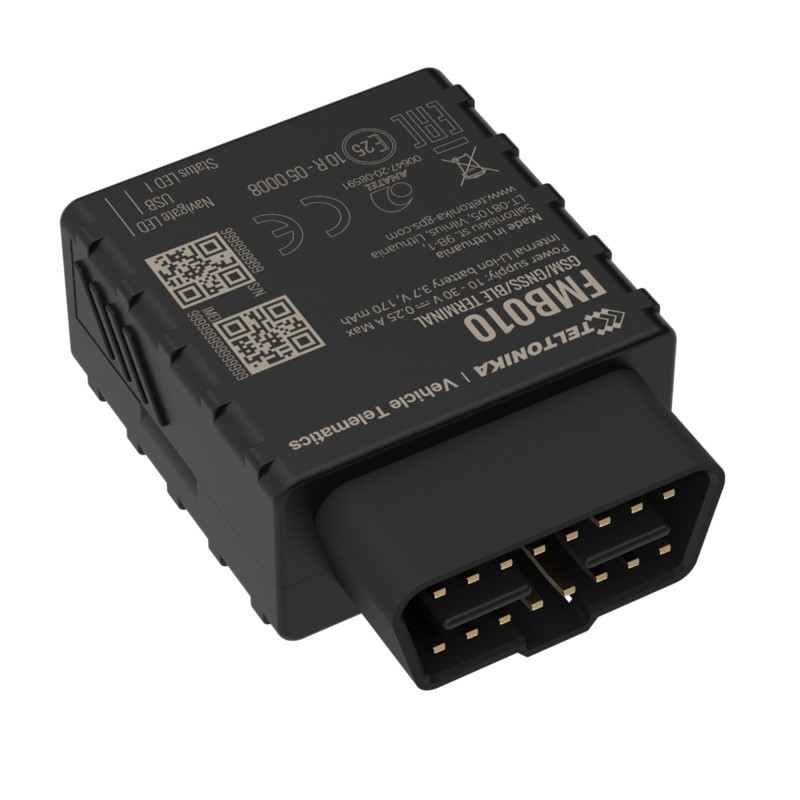

FMB010 is an easy-to-use OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. FMB010 is ideal for light vehicle tracking applications such as courier delivery services, car rental and leasing, insurance telematics and many others where simple integration is required. This device supports temperature/humidity sensors, hands-free, software and configuration updates via Bluetooth.
| MODULE | |
| In the house | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 years |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Backup battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| BLUETOOTH | |
| Specifications | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 1 |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro USB |
| LED indication | 2 status LED lights |
| SIM | Micro SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 50.7 x 49.6 x 25 mm (L x W x H) |
| Weight | 63 grams |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -25°C to +55°C |
| Storage temperature (without battery) | -40°C to +70°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charging temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
| CERTIFICATION APPROVALS | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |
