TELTONIKA – paprastas „Prijunk ir sek“ realaus laiko sekimo terminalas su GNSS, GSM ir „Bluetooth“ ryšiu
Prekės kodas: 18-FMB010

TELTONIKA – paprastas „Prijunk ir sek“ realaus laiko sekimo terminalas su GNSS, GSM ir „Bluetooth“ ryšiu


TELTONIKA – paprastas „Prijunk ir sek“ realaus laiko sekimo terminalas su GNSS, GSM ir „Bluetooth“ ryšiu

Prekės kodas: 18-FMB010

TELTONIKA – paprastas „Prijunk ir sek“ realaus laiko sekimo terminalas su GNSS, GSM ir „Bluetooth“ ryšiu


Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
40,51 €
Prekė sandelyje

Garantija
12 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

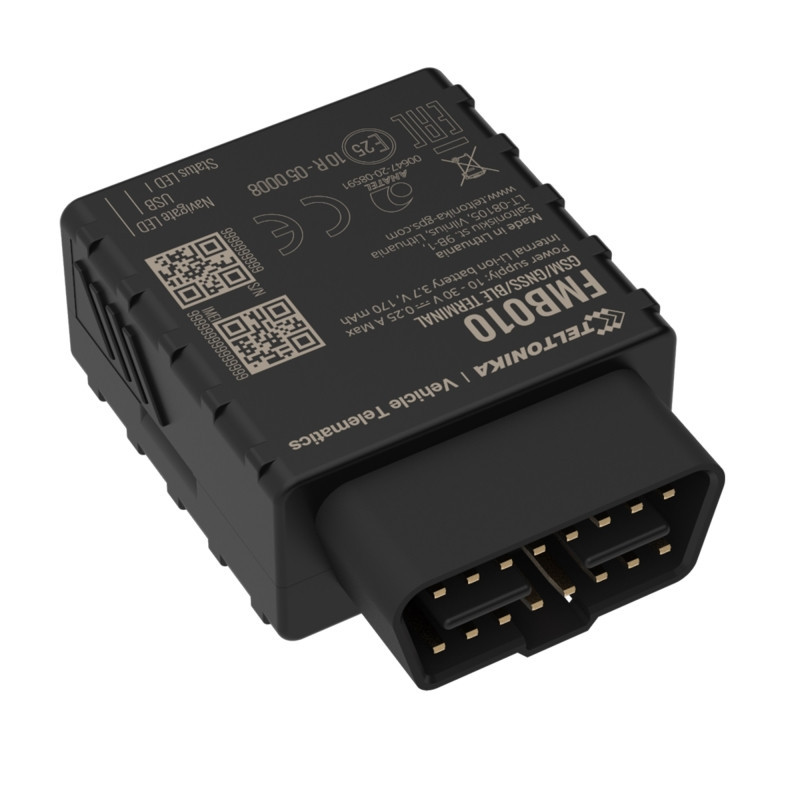

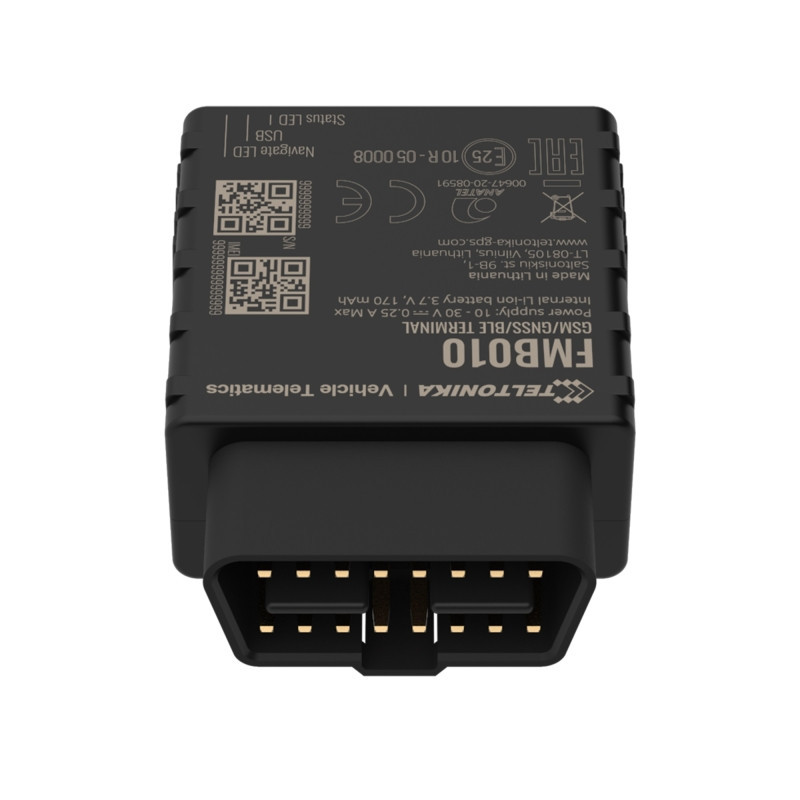

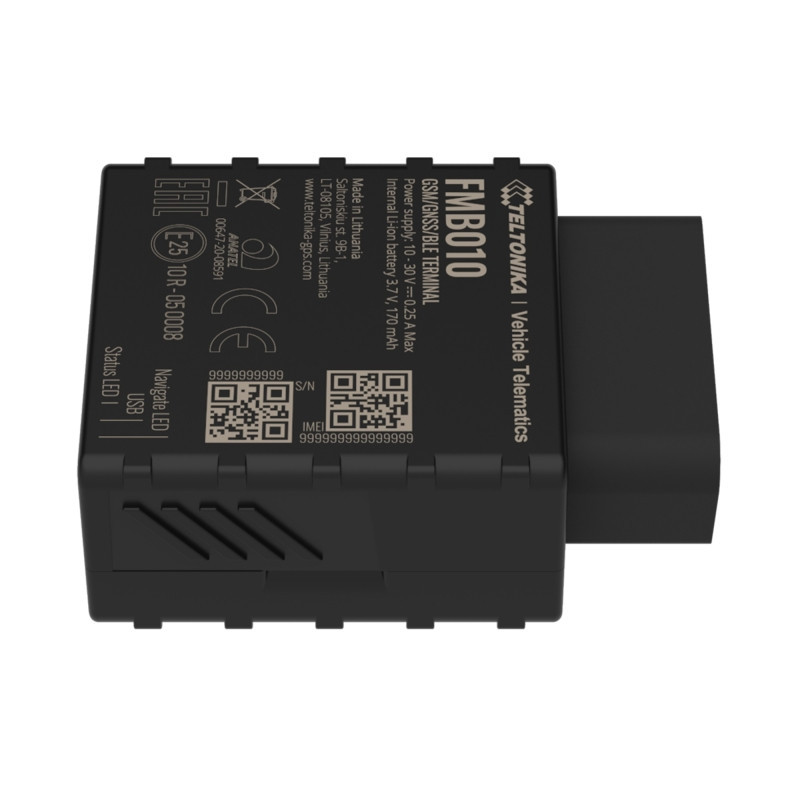

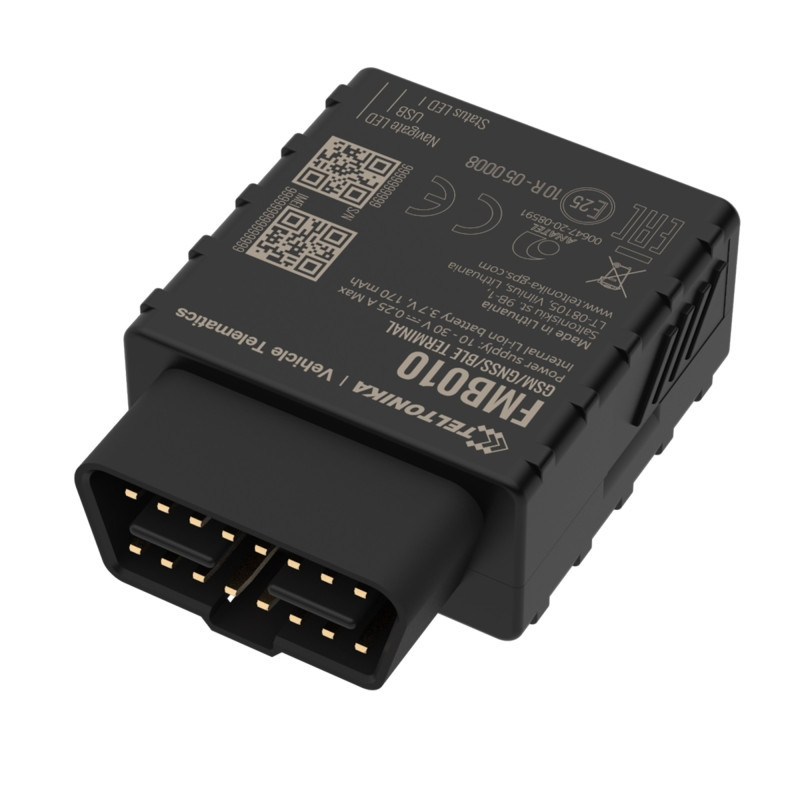

FMB010 yra lengvai naudojamas OBDII 'Plug and Play' sekiklis su GNSS, GSM ir 'Bluetooth' ryšio galimybėmis. FMB010 puikiai tinka lengvųjų transporto priemonių sekimui tokioms programoms kaip kurjerių pristatymo paslaugos, automobilių nuoma ir leasingas, draudimo telematika ir daugelis kitų, kur reikalingas paprastas integravimas. Šis įrenginys palaiko temperatūros/drėgmės jutiklius, laisvų rankų įrangą, programinės įrangos ir konfigūracijos atnaujinimus per 'Bluetooth'.


MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps)
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption At 12V < 5 mA (Ultra Deep Sleep)

At 12V < 7 mA (Deep Sleep)

At 12V < 7 mA (Online Sleep)

At 12V < 8 mA (GPS Sleep)

At 12V < 28 mA (nominal)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Digital Inputs 1
Connection OBDII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 50,7 x 49,6 x 25 mm (L x W x H)
Weight 63 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -25 °C to +55 °C
Storage temperature (without battery) -40 °C to +70 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage
CERTIFICATION APPROVALS
Regulatory CE/RED, E-Mark, EAC, RoHS, REACH
