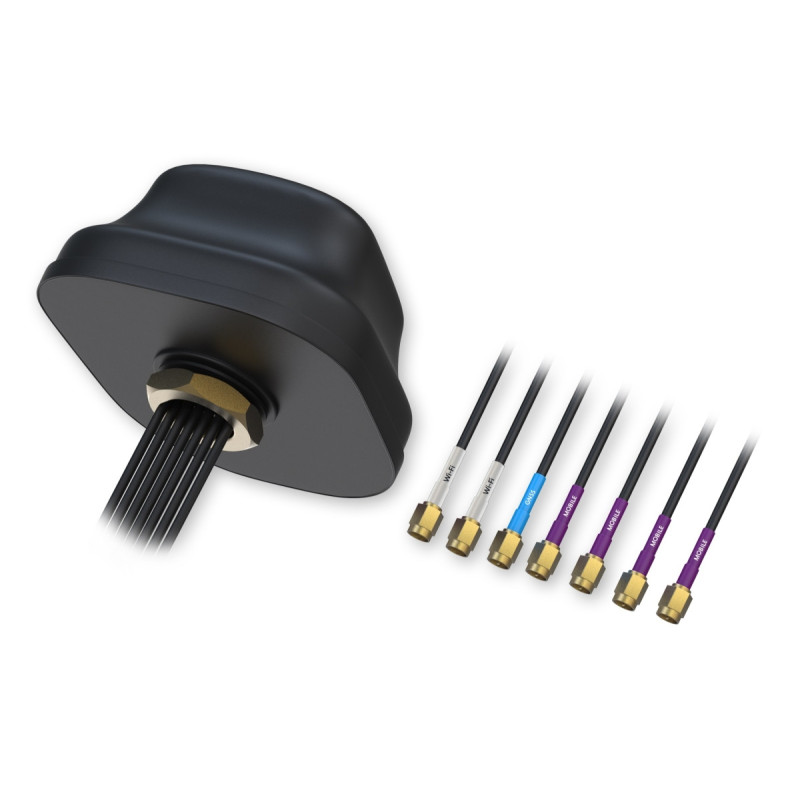

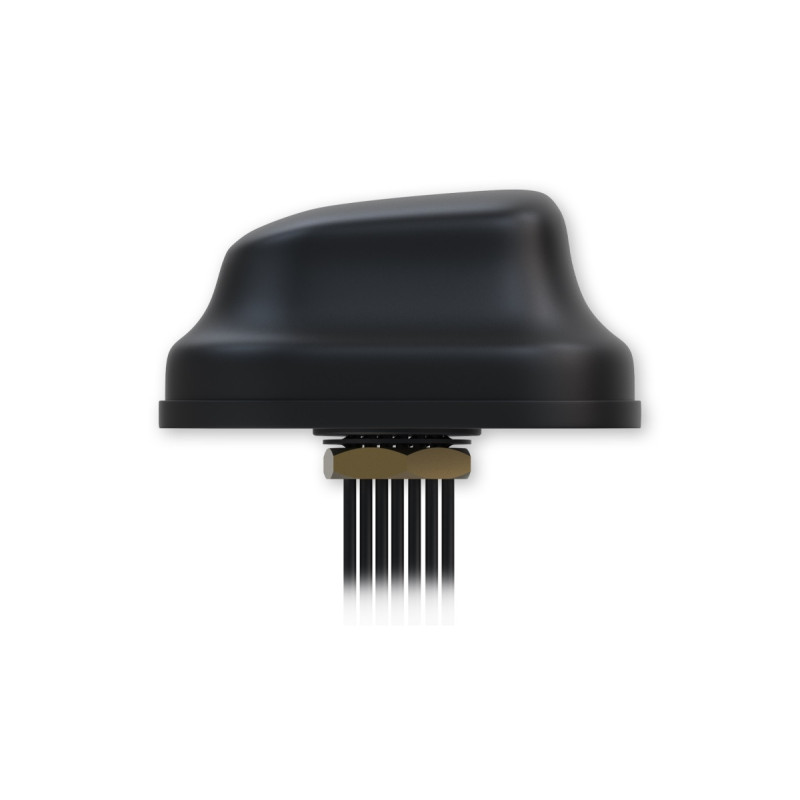

TELTONIKA 5G Combo MIMO Mobile / GNSS / WiFi Roof SMA Antenna

Compatible with RUTX50, TRB500

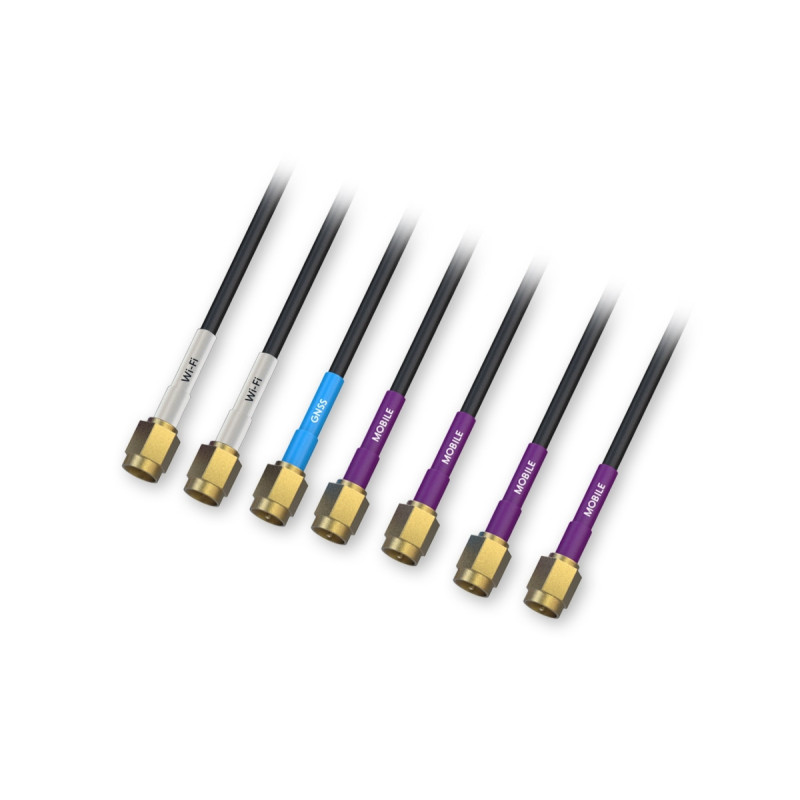

5G MOBILE MIMO ANTENNAFrequency Range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz Polarization: Linear Gain: 4.0 dBi VSWR: ≤3.0 Impedance: 50 Ω Connector type and count: 4x SMA Male

GNSS ANTENNAFrequency range: 1164 - 1300 / 1559 - 1610 MHz Polarization: RHCP Supply voltage: 3 - 12 VDC LNA Gain: 40 ± 2 dB VSWR: ≤2.0 Impedance: 50 Ω Current Consumption: ≤60 mA Connector type and count: SMA Male

WIFI MIMO ANTENNAFrequency range: 2400 - 2483.5 / 4900 - 5925 MHz Polarization: Linear Gain: 4.0 dBi VSWR: ≤2.5 Impedance: 50 Ω Connector type and count: 2x RP SMA Male

MECHANICAL/ENVIRONMENTALMounting method: Screw Radome ingress projection rating: IP67 (exclude cable outlet) Radome material: UV-Resistant ABS/PC Weight: 960 ± 30 g Housing dimensions: 189 x 182 x 85 mm Cable: 7 x LMR100, 3000 mm Recommended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm Operating temperature: -40 °C - +85 °C RoHS Compliant: Yes
