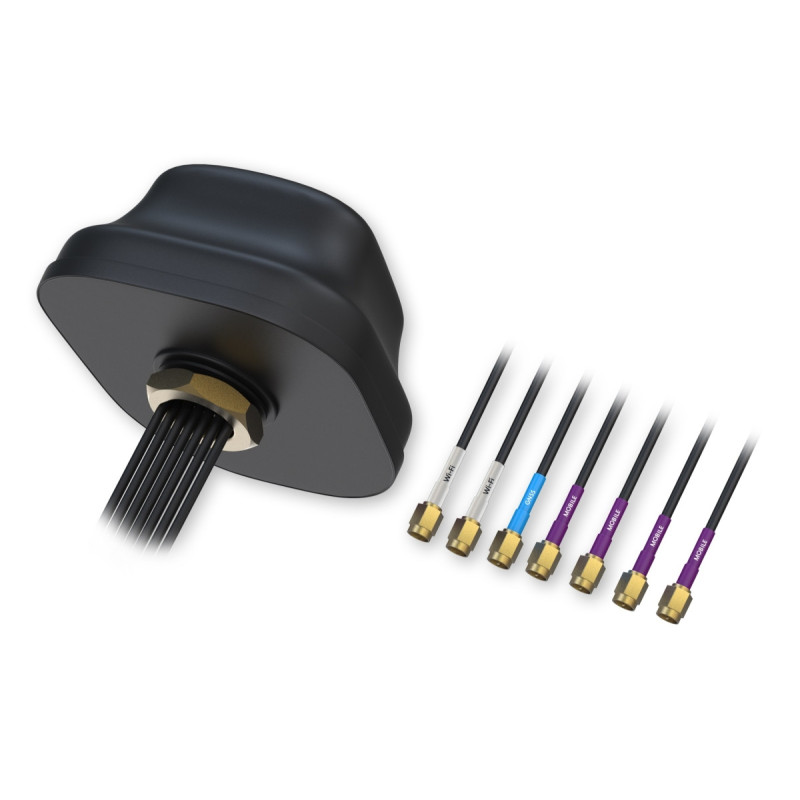

TELTONIKA 5G Combo MIMO mobilioji / GNSS / WiFi stogo SMA antena

Compatible with RUTX50, TRB500

5G MOBILE MIMO ANTENNAFrequency Range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz

Polarization: Linear

Gain: 4.0 dBi

V.S.W.R: ≤3.0

Impedance: 50 Ω

Connector type and count: 4x SMA Male

GNSS ANTENNAFrequency range: 1164 - 1300 / 1559 - 1610 MHz

Polarization: RHCP

Supply voltage: 3 - 12 VDC

LNA Gain: 40 ± 2 dB

V.S.W.R: ≤2.0

Impedance: 50 Ω

Current Consumption: ≤60 mA

Connector type and count: SMA Male

WIFI MIMO ANTENNAFrequency range: 2400 - 2483.5 / 4900 - 5925 MHz

Polarization: Linear

Gain: 4.0 dBi

V.S.W.R: ≤2.5

Impedance: 50 Ω

Connector type and count: 2x RP SMA Male

MECHANICAL/ENVIRONMENTALMounting method: Screw

Radome ingress projection rating: IP67 (exclude cable outlet)

Radome material: UV-Resistant ABS/PC

Weight: 960 ± 30 g

Housing dimensions: 189 x 182 x 85 mm

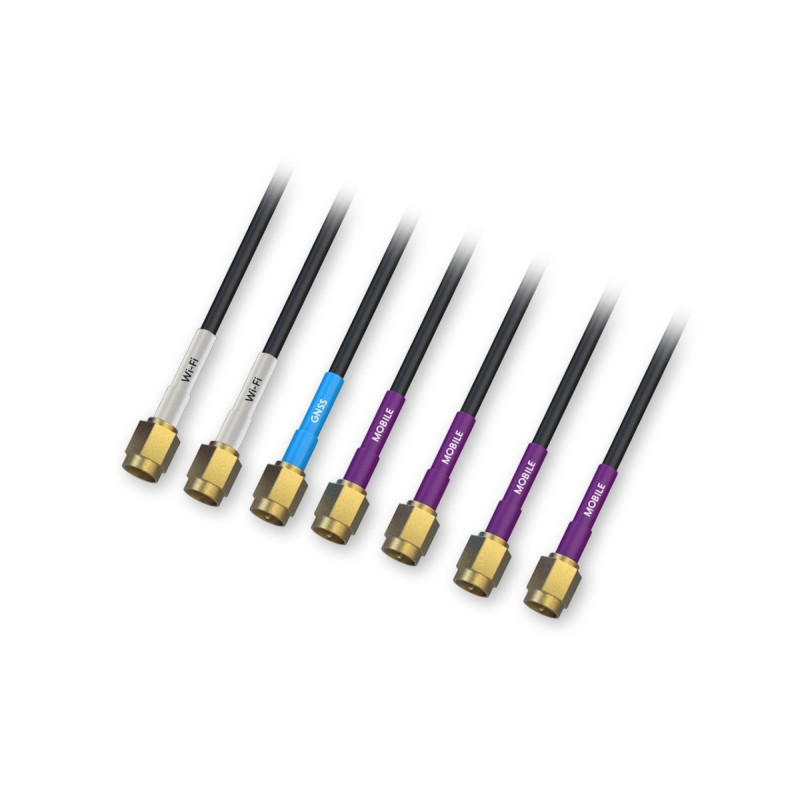

Cable: 7 x LMR100, 3000 mm

Recomended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm

Operating temperature: -40 °C - +85 °C

RoHS Compliant: Yes
