TELTONIKA 5 LAN port 10 / 100 Mbps Industrial DIN rail unmanaged switch

// TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. // Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required. // Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions. // Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.

EthernetLAN: 5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

Performance SpecificationsBandwidth (Non-blocking): 1 Gbps MAC address table size: 2K entries Jumbo frame support: 2048 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 9-30 VDC PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC Power consumption: Idle: 0.3 W / Max: 0.9 W

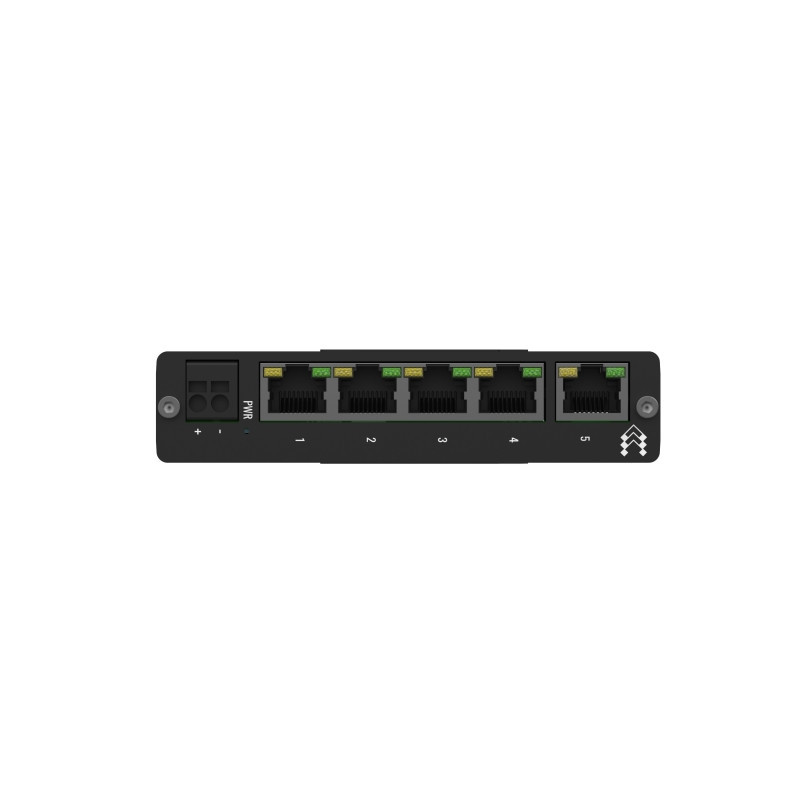

Physical Interfaces (Ports, LEDs, Buttons, SIM)Ethernet: 5 x RJ45 ports, 10/100 Mbps Status LEDs: 1 x Power LED, 10 x LAN status LEDs Power: 1 x 2-pin industrial DC power socket Other: 1 x Grounding screw

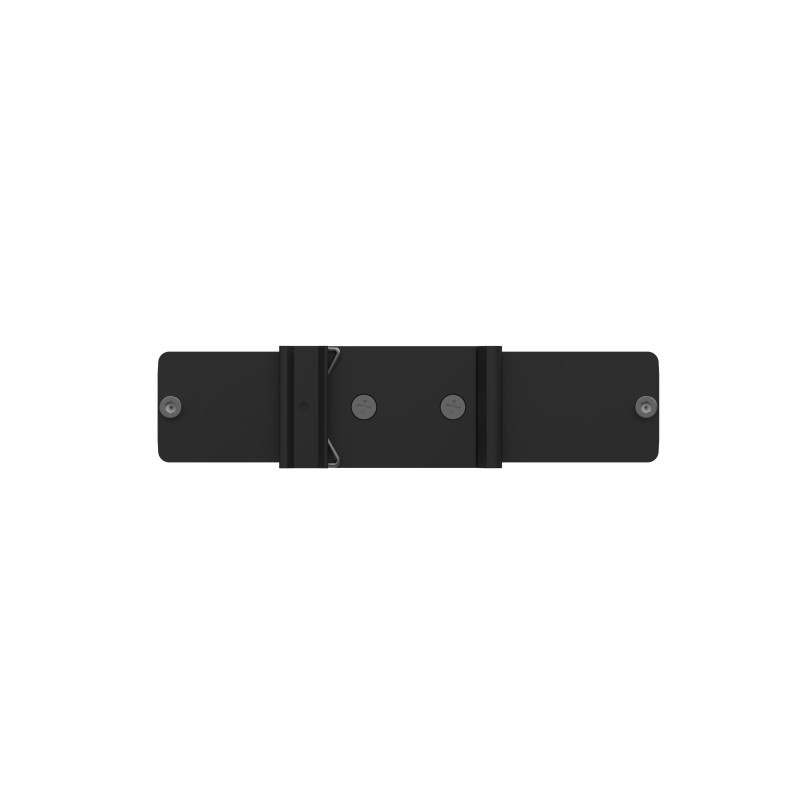

Physical Specification:Casing material: Aluminum housing Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm Weight: 146.5 g Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

SafetyStandards: EN IEC 62368-1:2020+A11:2020
