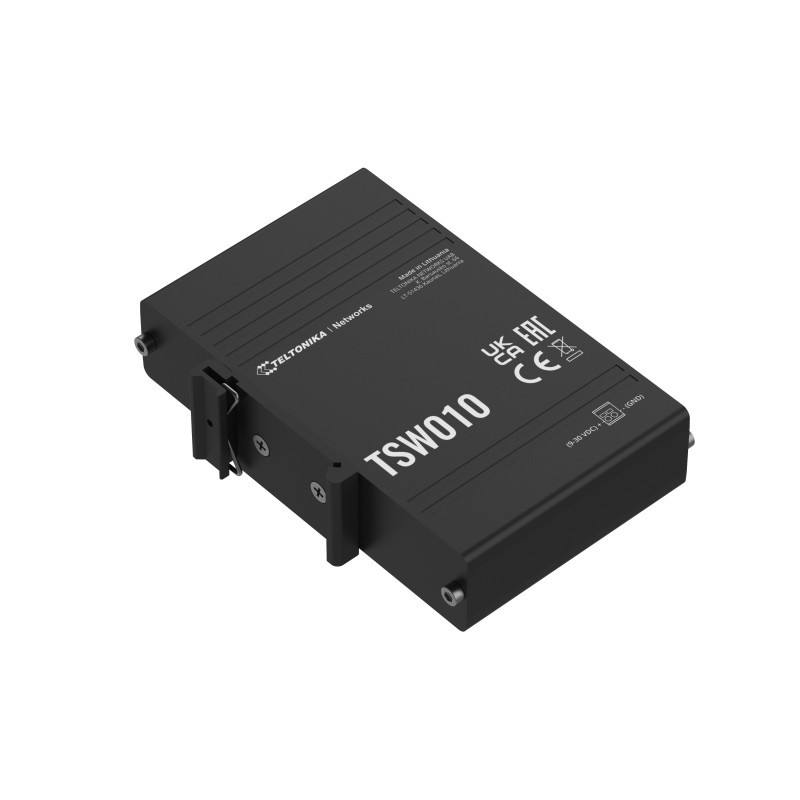

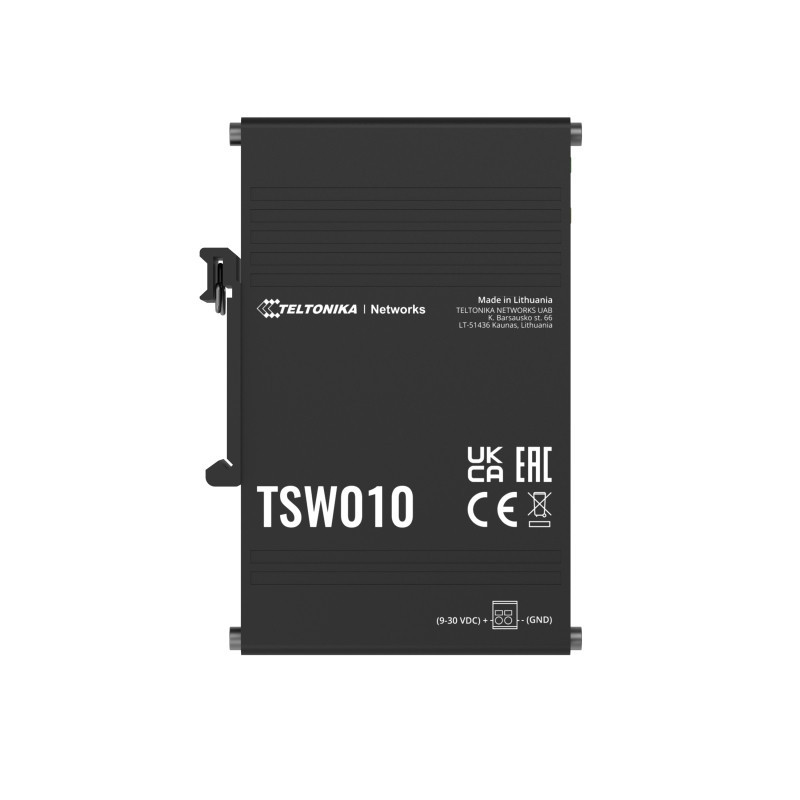

TELTONIKA 5 LAN prievadų 10 / 100 Mbps pramoninis nevaldomas komutatorius, montuojamas ant DIN bėgelio

// TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices.

// Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

// Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions.

// Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.

EthernetLAN: 5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

Performance SpecificationsBandwidth (Non-blocking): 1 Gbps

MAC address table size: 2K entries

Jumbo frame support: 2048 bytes

PowerConnector: 2-pin industrial DC power socket

Input voltage range: 9-30 VDC

PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

Power consumption: Idle: 0.3 W / Max: 0.9 W

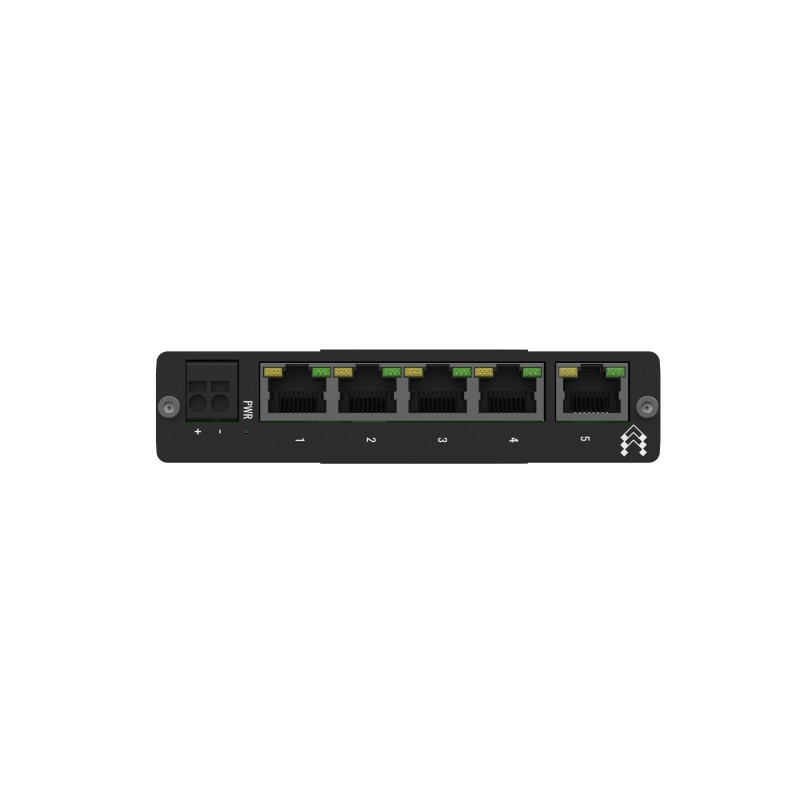

Physical Interfaces (Ports, LEDs, Buttons, SIM)Ethernet: 5 x RJ45 ports, 10/100 Mbps

Status LEDs: 1 x Power LED, 10 x LAN status LEDs

Power: 1 x 2-pin industrial DC power socket

Other: 1 x Grounding screw

Physical Specification:Casing material: Aluminum housing

Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm

Weight: 146.5 g

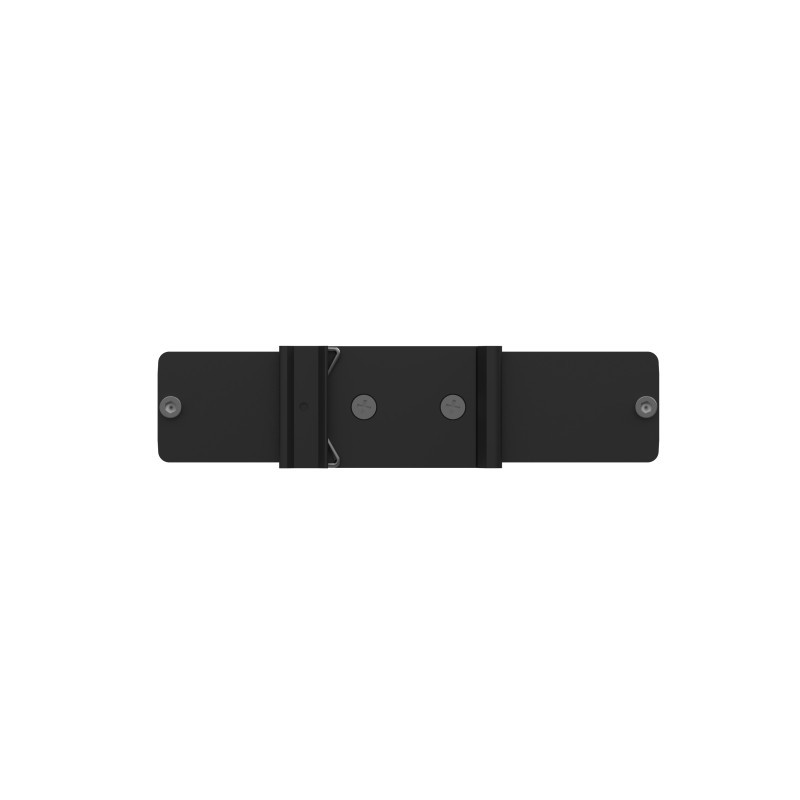

Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

SafetyStandards: EN IEC 62368-1:2020+A11:2020
