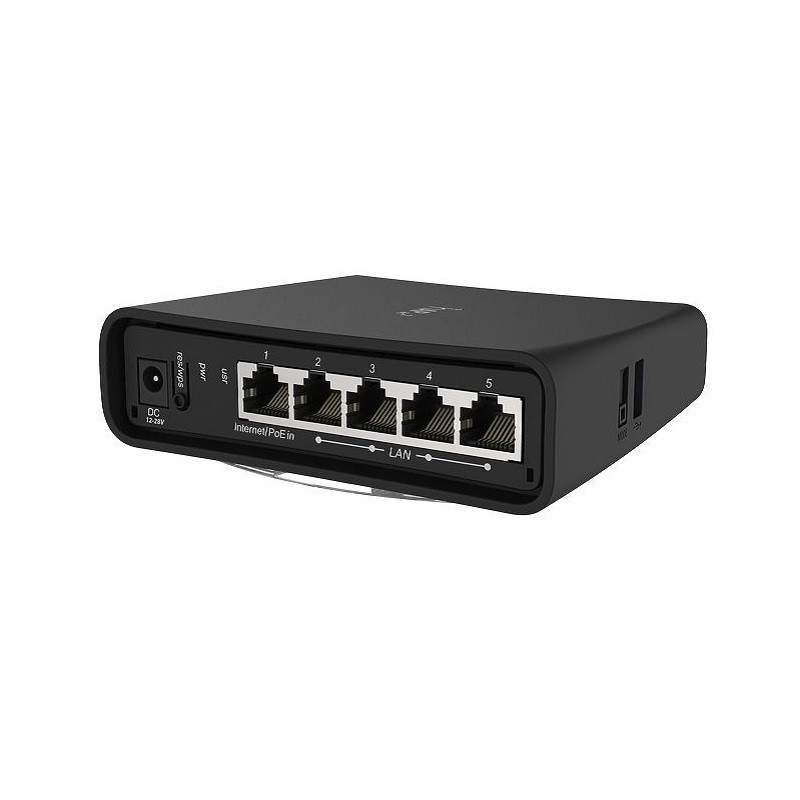

MIKROTIK RouterBOARD hAP ac2 Tower

The hAP ac2 is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

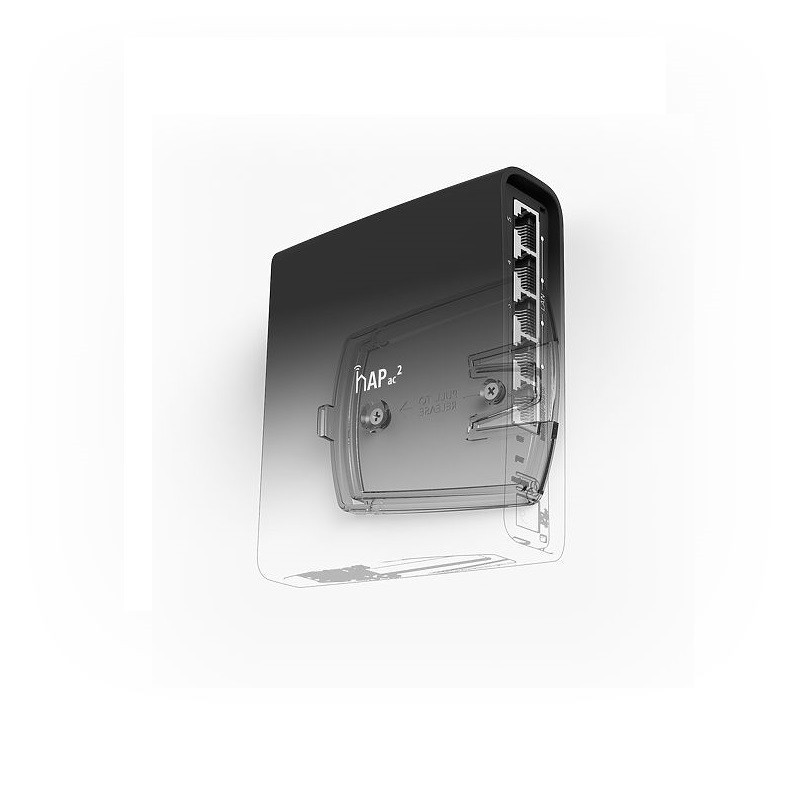

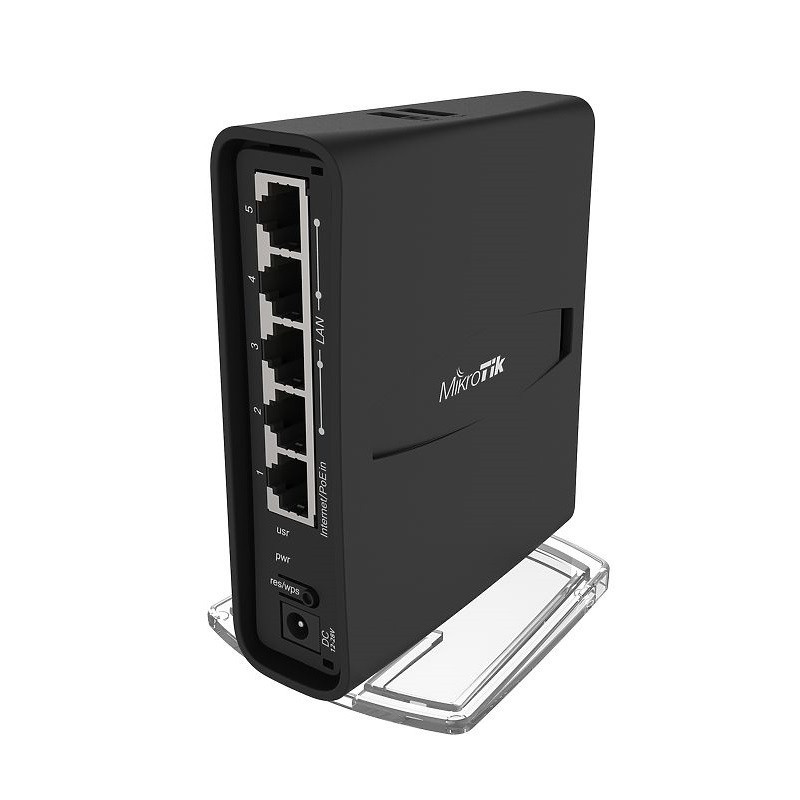

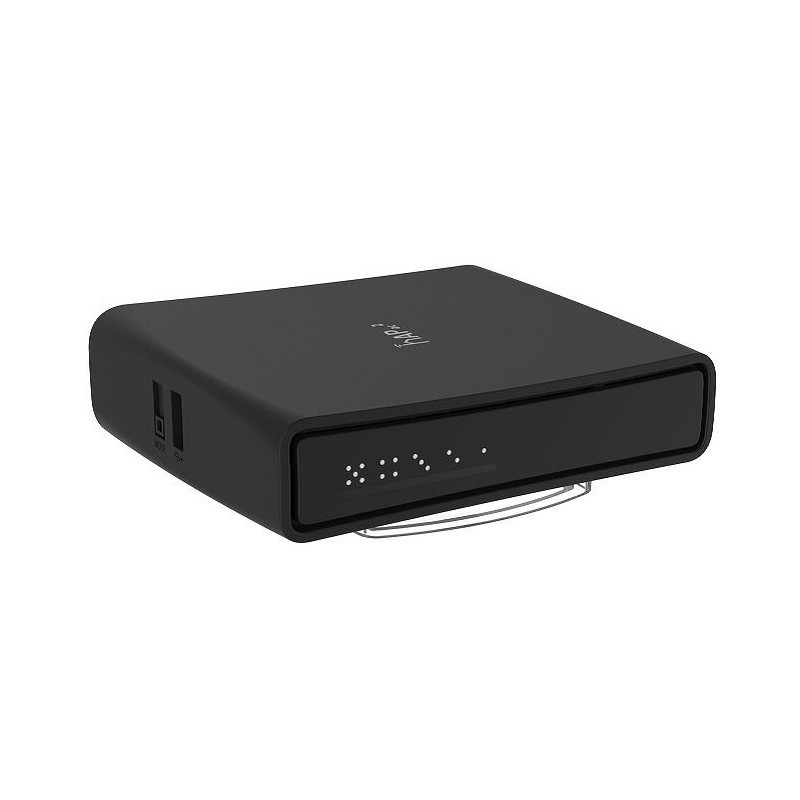

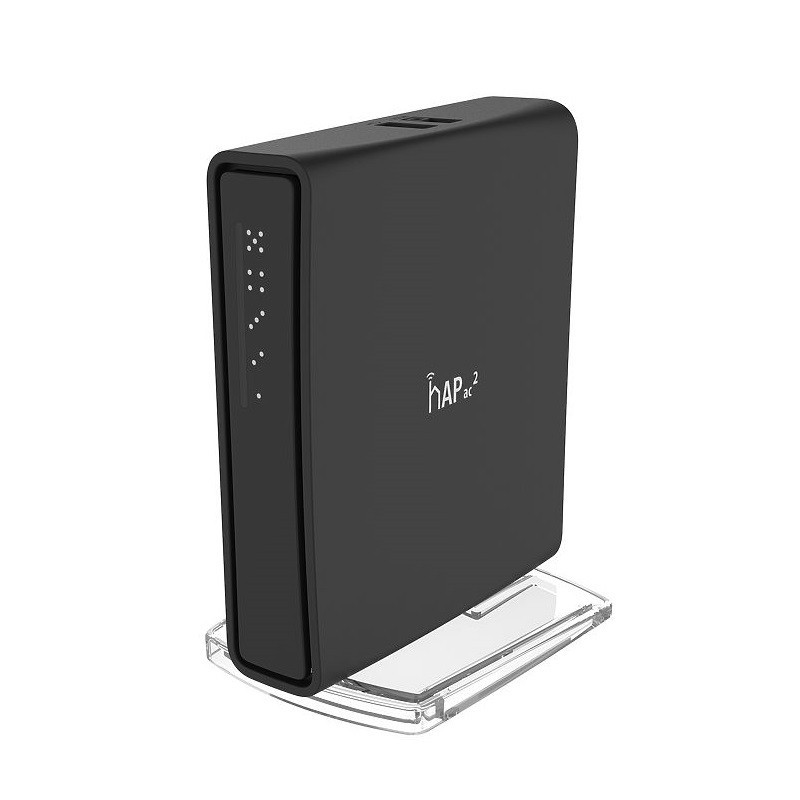

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Dual (2.4 GHz and 5 GHz) access point 'hAP ac2 Tower''

Product code: RBD52G-5HacD2HnD-TC Architecture: ARM 32bit CPU: IPQ-4018 CPU core count: 4 CPU nominal frequency: 716 MHz Dimensions: 34 x 119 x 98mm Operating System: RouterOS (License level 4) Size of RAM: 128 MB Storage size: 16 MB Storage type: FLASH Tested ambient temperature: -40°C .. +50°C

Powering

Max Power consumption: 15W PoE in: Passive PoE PoE in input Voltage: 18-28 V Number of DC inputs: 2 (DC jack, PoE-IN) DC jack input Voltage: 12-30 V

Wireless

Wireless 2.4 GHz number of chains: 2 Wireless 2.4 GHz standards: 802.11b/g/n Antenna gain dBi for 2.4 GHz: 2.5 Wireless 2.4 GHz chip model: IPQ-4018 Wireless 5 GHz number of chains: 2 Wireless 5 GHz standards: 802.11ac Antenna gain dBi for 5 GHz: 2.5 Wireless 5 GHz chip model: IPQ-4018

Ethernet

10/100/1000 Ethernet ports: 5

Peripherals

Number of USB ports: 1 USB Power Reset: Yes USB slot type: USB type A
