MIKROTIK RouterBOARD hAP ac2 bokštas

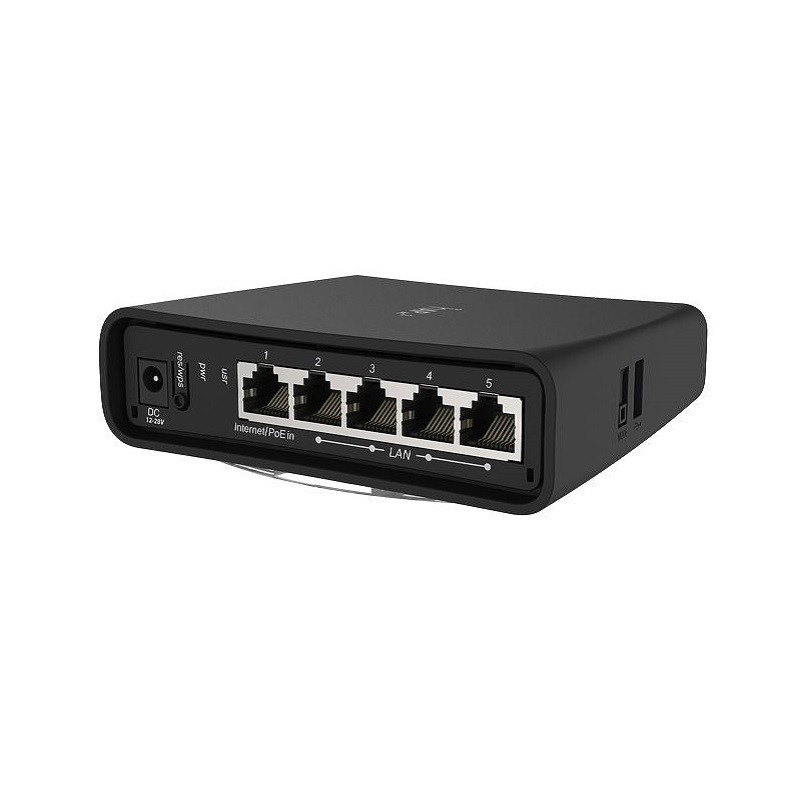

The hAP ac2 is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

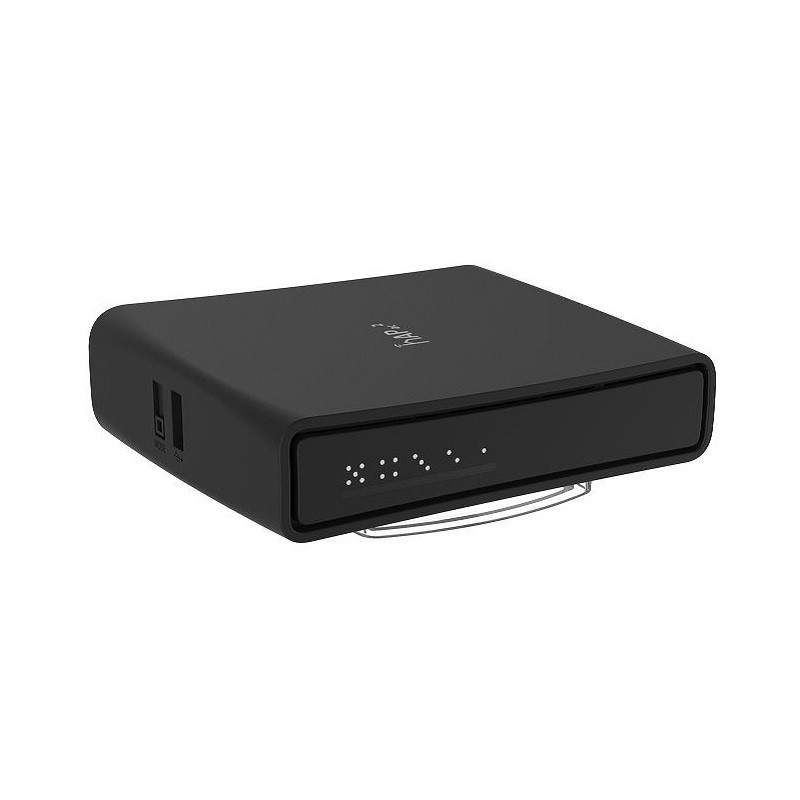

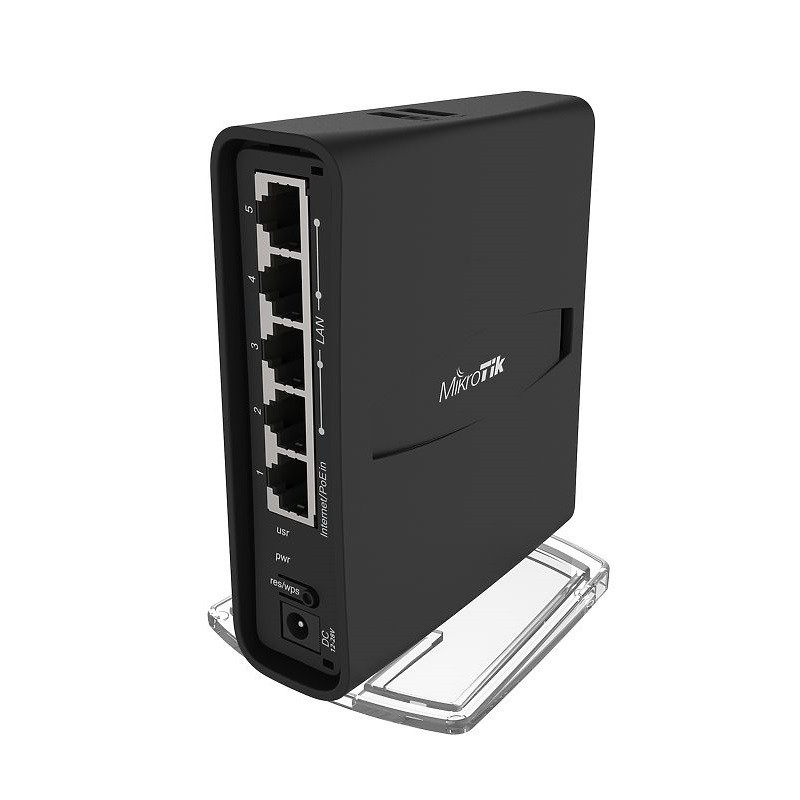

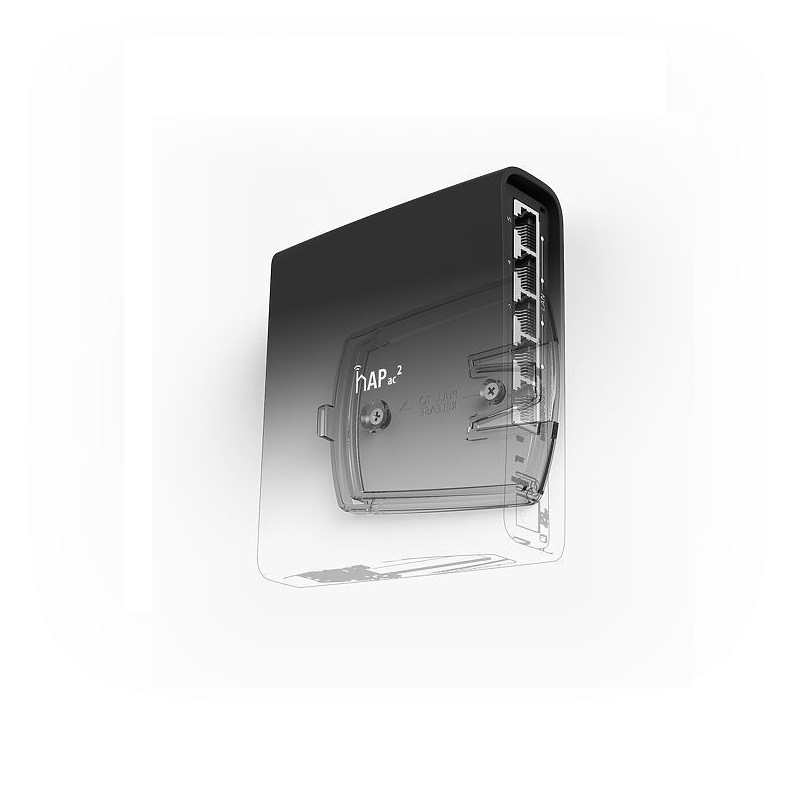

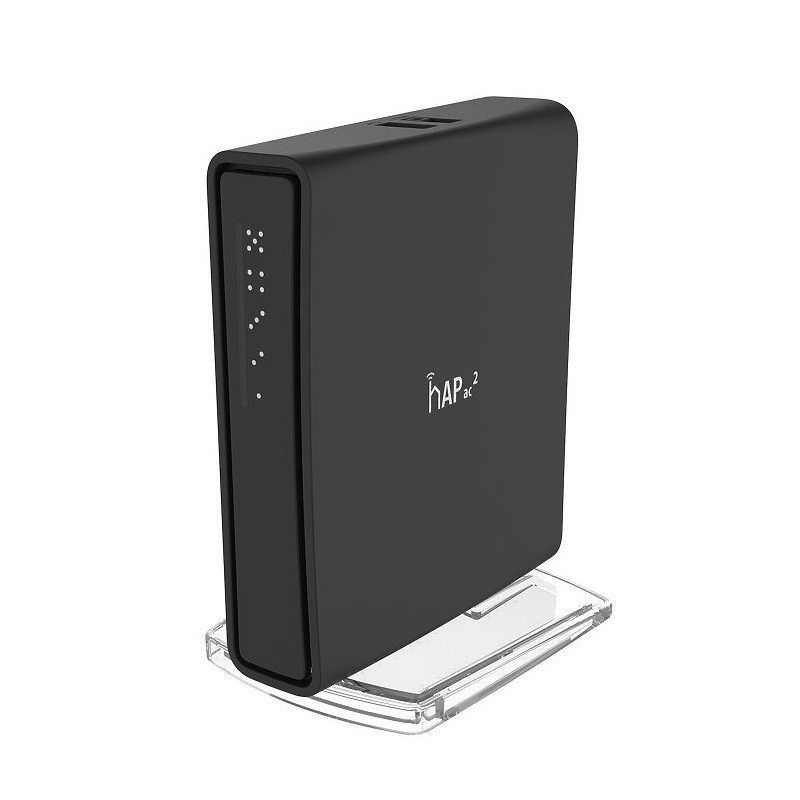

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Dvigubas (2,4 GHz ir 5 GHz) prieigos taško 'hAP ac2 Tower''

Product code: RBD52G-5HacD2HnD-TC

Architecture: ARM 32bit

CPU: IPQ-4018

CPU core count: 4

CPU nominal frequency: 716 MHz

Dimensions: 34 x 119 x 98mm

Operating System: RouterOS (License level 4)

Size of RAM: 128 MB

Storage size: 16 MB

Storage type: FLASH

Tested ambient temperature: -40°C .. +50°C

Powering

Max Power consumption: 15W

PoE in: Passive PoE

PoE in input Voltage: 18-28 V

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-30 V

Wireless

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 2.5

Wireless 2.4 GHz chip model: IPQ-4018

Wireless 5 GHz number of chains: 2

Wireless 5 GHz standards: 802.11ac

Antenna gain dBi for 5 GHz: 2.5

Wireless 5 GHz chip model: IPQ-4018

Ethernet

10/100/1000 Ethernet ports: 5

Peripherals

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A
