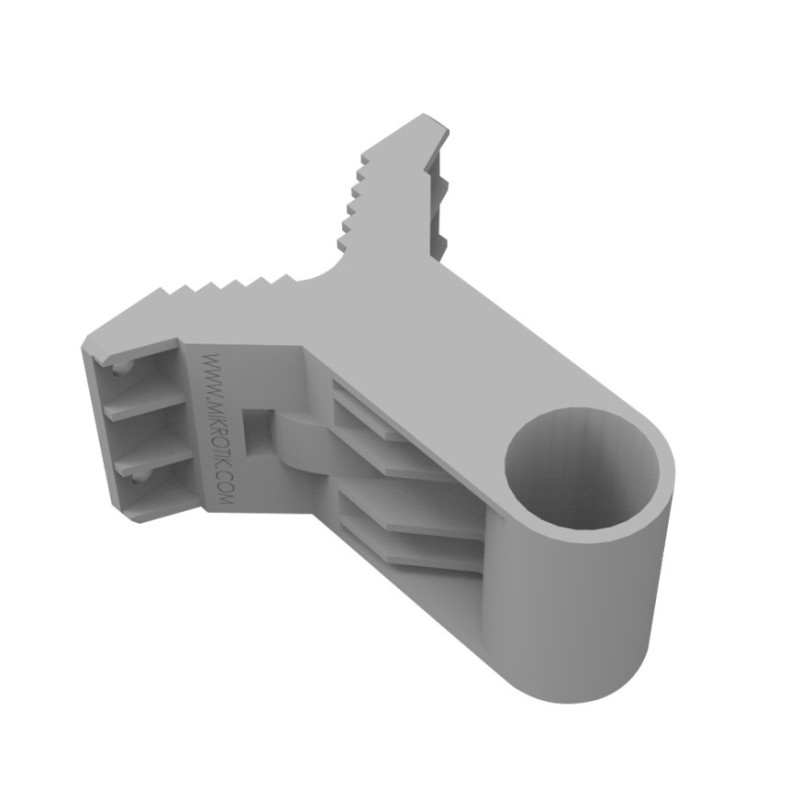

MIKROTIK quickMOUNT

The quickMOUNT is a basic wall mount adapter for small point to point and sector antennas. You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT gives the possibility to turn the antenna within 190°. With the quickMOUNT it is possible to simultaneously mount two SXTs, thus creating a repeater access point or creating large sector coverage. You can use the quickMOUNT with any pole mountable device with weight less than 1.5 Kg • simple and low cost • supports SXT, Omnitik, BaseBox or any other pole mountable device • supports up to two SXT units The adapter is very durable due to it's special material composite - anvilNITE (TM)

Dimensions 96x107.5x56 mm Tube diameter 35 mm Max tube diameter to which mount can be attached 65 mm Maximum antenna weight 1.5 kg Maximum wind load 100N Compatible devices SXT series, Omnitik, 3rd party antennas that are designed to be pole mounted Turn angle for Mikrotik products 190° Operational temperature range ±40° C Material anvilNITE™
