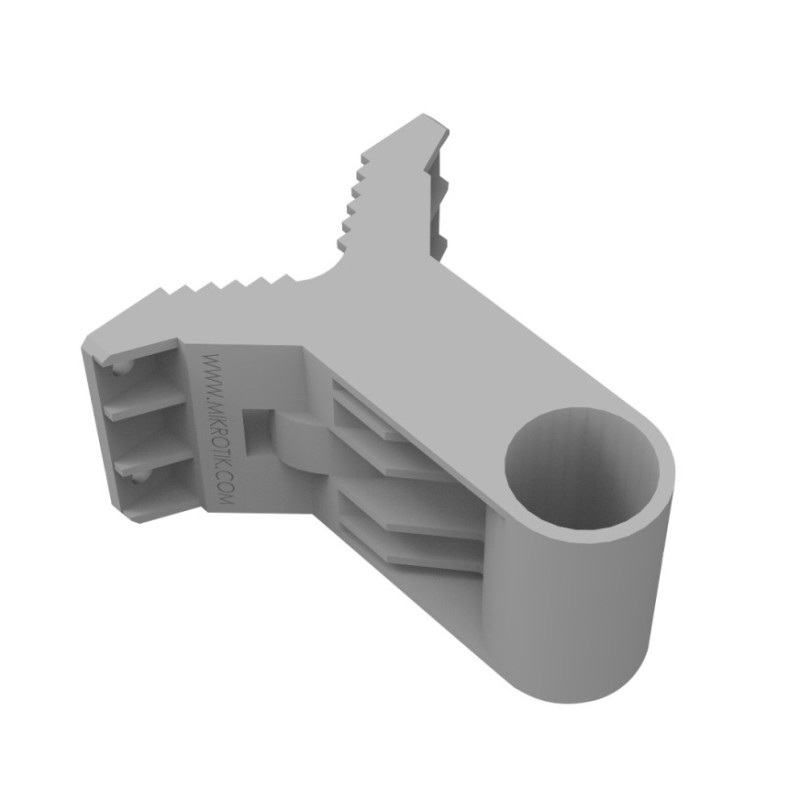

MIKROTIK greitasis montavimas

The quickMOUNT is a basic wall mount adapter for small point to point and

sector antennas.

You can mount it on the wall or use it as an adapter from large diameter

pole to small size antenna mounting clip ensuring reliable fitment. The

quickMOUNT gives possibility to turn antenna within 190°.

With the quickMOUNT it is possible to simultaneously mount two SXTs, thus

creating a repeater access point or creating large sector coverage.

You can use the quickMOUNT with any pole mountable device with weight

less than 1.5 Kg

• simple and low cost

• supports SXT, Omnitik, BaseBox or any other pole mountable device

• supports up to two SXT units

The adapter is very durable due to it's special material composite -

anvilNITE (TM)

Dimensions 96x107.5x56 mm

Tube diameter 35 mm

Max tube diameter to which mount can be

attached 65 mm

Maximum antenna weight 1.5 kg

Maximum wind load 100N

Compatible devices SXT series, Omnitik, 3rd party antennas that are designed to be pole

mounted

Turn angle for Mikrotik products 190°

Operational temperature range ±40° C

Material anvilNITE™
