MIKROTIK Powerful OEM RouterBOARD with three Gigabit LAN and two miniPCIe slots

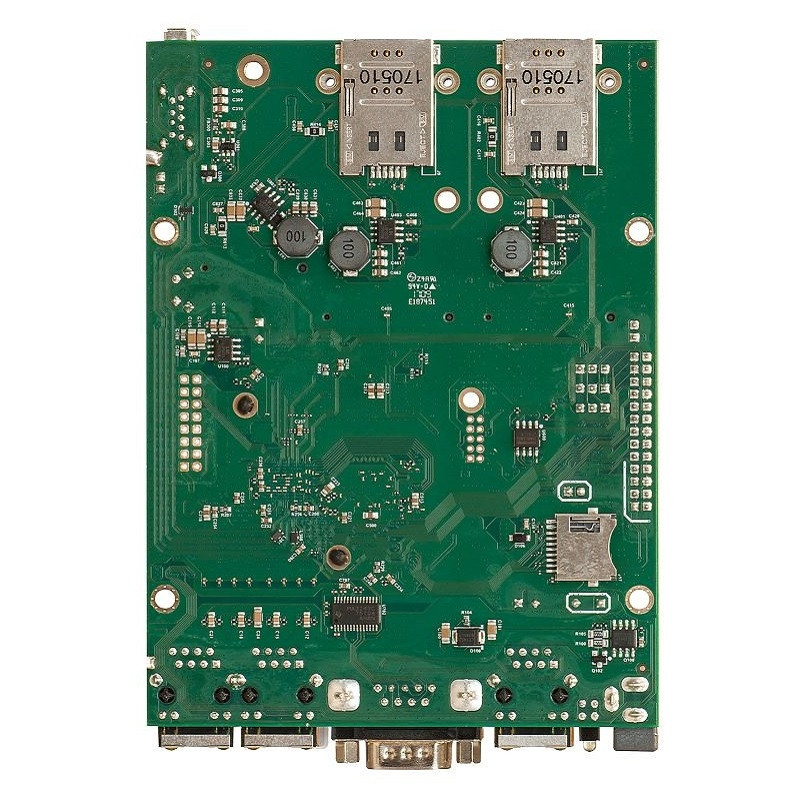

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and the same mounting holes as its predecessors (RB433 and RB953 series).

The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that require two 3G/LTE modems. You can use eg:

• Two miniPCIe 3G/LTE modems (two SIM slots provided)

• One miniPCIe and One USB 3G/LTE modem leaving another miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)

The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slot are provided.

The RBM33G comes fitted with an RS232 serial port for console access. The device can be powered by PoE through its gigabit ethernet connector or through the DC power jack.

Product code: RBM33G Architecture: MMIPS CPU: MT7621A CPU core count: 2 CPU nominal frequency: 880 MHz CPU Threads count: 4 License level: 4 Size of RAM: 256 MB Storage size: 16 MB Storage type: FLASH

Powering

Max Power consumption: 19W PoE in: Passive PoE PoE in input Voltage: 11-32 V Number of DC inputs: 2 (DC jack, PoE-IN) DC jack input Voltage: 11-32 V

Ethernet

10/100/1000 Ethernet ports: 3

Peripherals

Number of SIM slots: 2 Modem (Mini SIM) M.2 slots: 1 MiniPCI-e slots: 2 Number of USB ports: 1 Serial port: RS232 USB Power Reset: Yes USB slot type: USB 3.0 type A
