Galinga OEM maršrutizatoriaus plokštė MIKROTIK su trimis gigabito LAN ir dviem miniPCIe lizdais

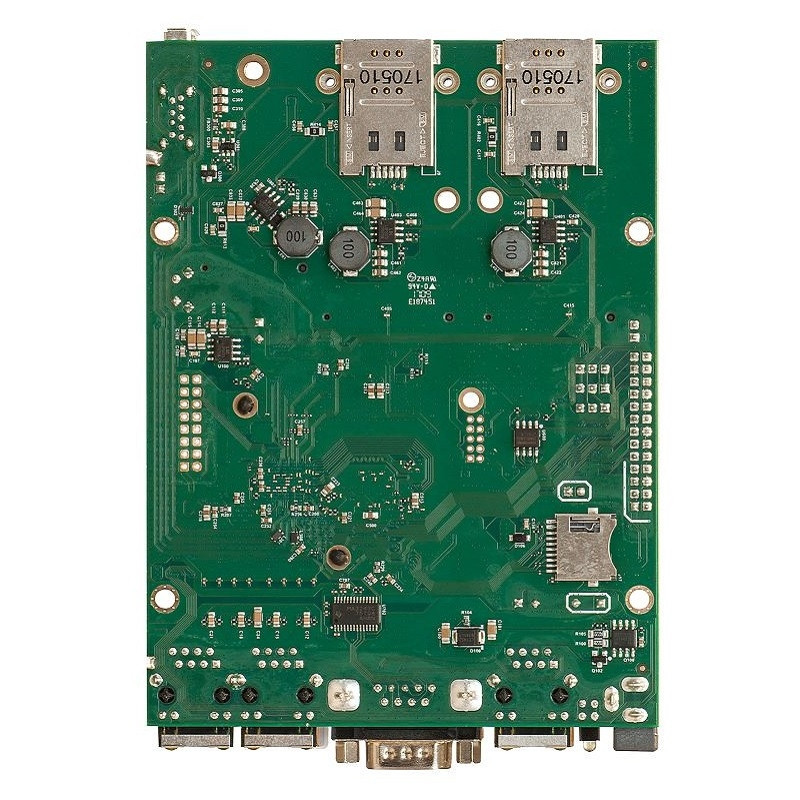

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it's predecessors (RB433 and RB953 series).

The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:

• Two miniPCIe 3G/LTE modems (two SIM slots provided)

• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)

The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.

The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it's gigabit ethernet connector or through the DC power jack.

Product code: RBM33G

Architecture: MMIPS

CPU: MT7621A

CPU core count: 2

CPU nominal frequency: 880 MHz

CPU Threads count: 4

License level: 4

Size of RAM: 256 MB

Storage size: 16 MB

Storage type: FLASH

Powering

Max Power consumption: 19W

PoE in: Passive PoE

PoE in input Voltage: 11-32 V

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 11-32 V

Ethernet

10/100/1000 Ethernet ports: 3

Peripherals

Number of SIM slots: 2 Modem (Mini SIM)

M.2 slots: 1

MiniPCI-e slots: 2

Number of USB ports: 1

Serial port: RS232

USB Power Reset: Yes

USB slot type: USB 3.0 type A
