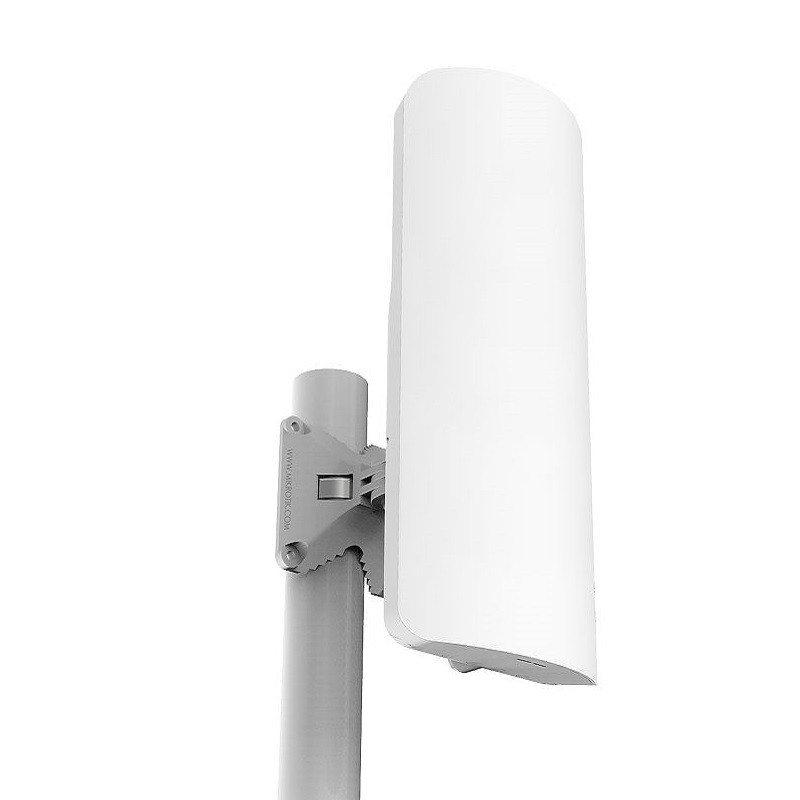

MIKROTIK dual polarization sector Integrated antenna mANTBox 2 12s

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high-speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built-in 802.11 b/g/n wireless device with up to 30 dBm output power.

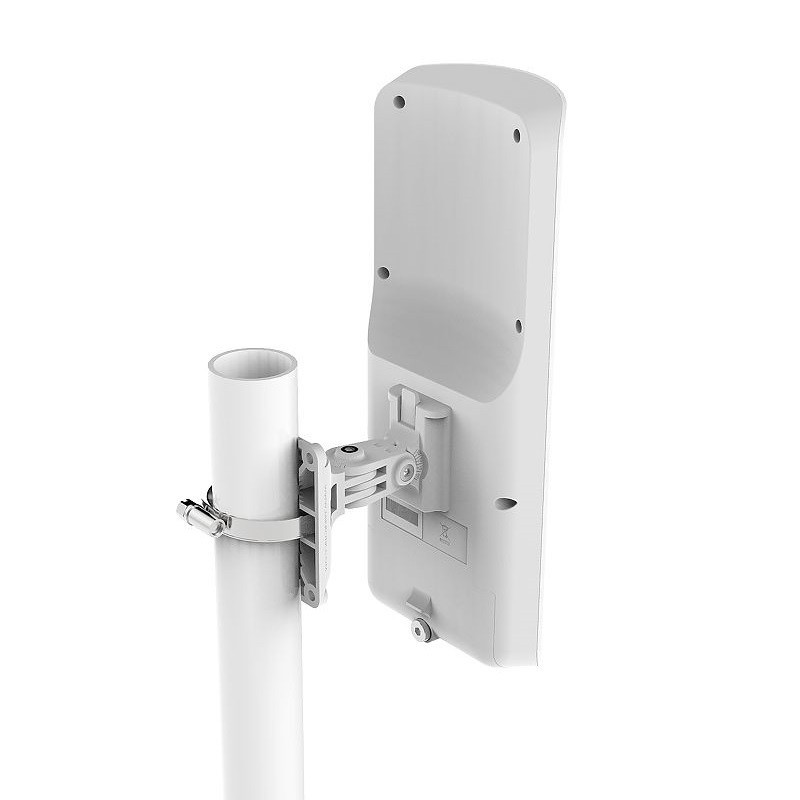

The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.

Product code: RB911G-2HPnD-12S CPU: AR9342 CPU core count: 1 CPU nominal frequency: 600 MHz Dimensions: 140 x 348 x 82 mm Operating System: RouterOS (License level 4) Size of RAM: 64 MB Storage size: 128 MB Storage type: NAND Tested ambient temperature: -40°C .. +70°C

Powering

PoE in: Passive PoE PoE in input Voltage: 10-28 V Number of DC inputs: 2 (PoE-IN, DC jack) DC jack input Voltage: 8-30 V Max power consumption: 11

Wireless

Wireless 2.4 GHz number of chains: 2 Wireless 2.4 GHz standards: 802.11b/g/n Antenna gain dBi for 2.4 GHz: 12 Wireless 2.4 GHz chip model: AR9342

Ethernet

10/100/1000 Ethernet ports: 1

Other

PCB temperature monitor: Yes Voltage monitor: Yes
