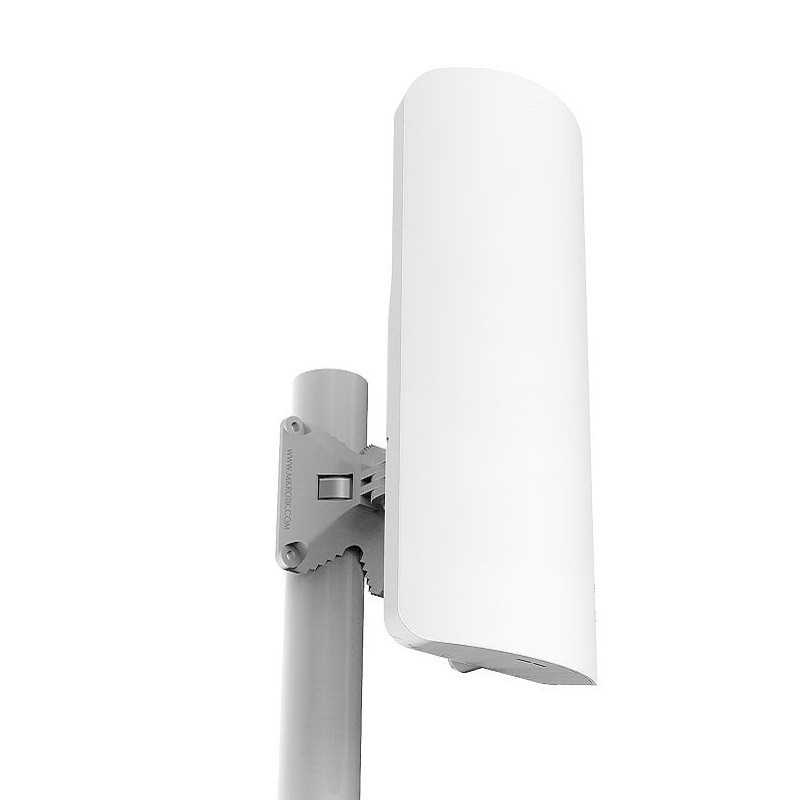

MIKROTIK dvigubos poliarizacijos sektorius Integruota antena mANTBox 2 12s

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.

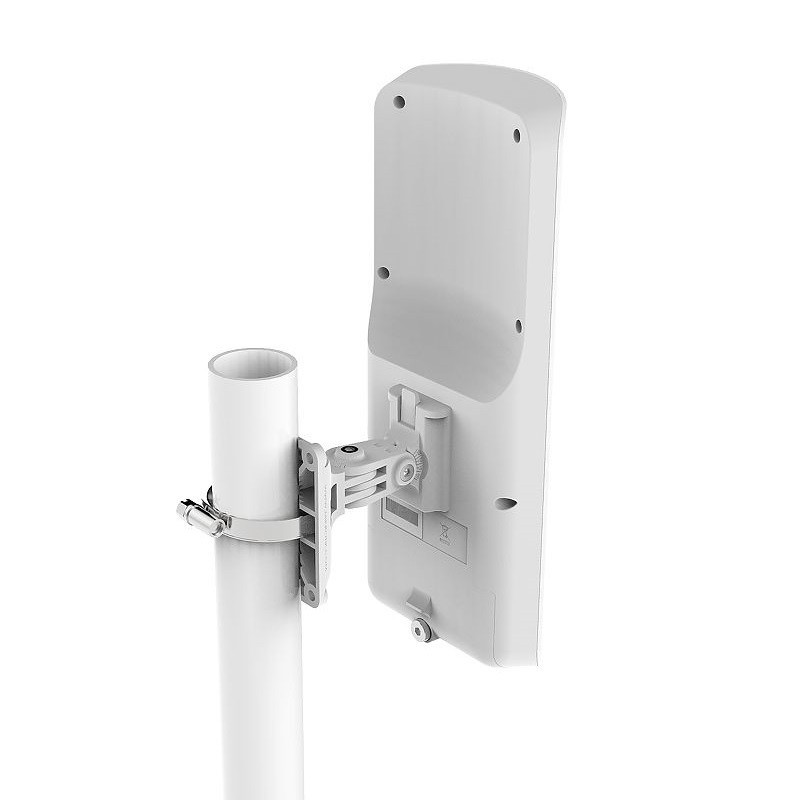

The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.

Product code: RB911G-2HPnD-12S

CPU: AR9342

CPU core count: 1

CPU nominal frequency: 600 MHz

Dimensions: 140 x 348 x 82 mm

Operating System: RouterOS (License level 4)

Size of RAM: 64 MB

Storage size: 128 MB

Storage type: NAND

Tested ambient temperature: -40°C .. +70°C

Powering

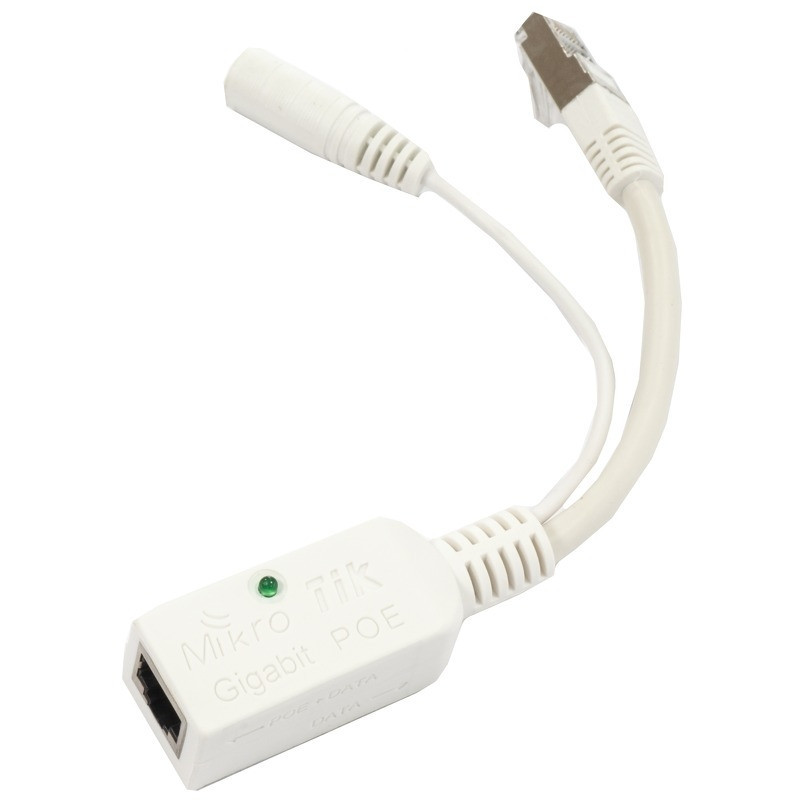

PoE in: Passive PoE

PoE in input Voltage: 10-28 V

Number of DC inputs: 2 (PoE-IN, DC jack)

DC jack input Voltage: 8-30 V

Max power consumption: 11

Wireless

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 12

Wireless 2.4 GHz chip model: AR9342

Ethernet

10/100/1000 Ethernet ports: 1

Other

PCB temperature monitor: Yes

Voltage Monitor: Yes
