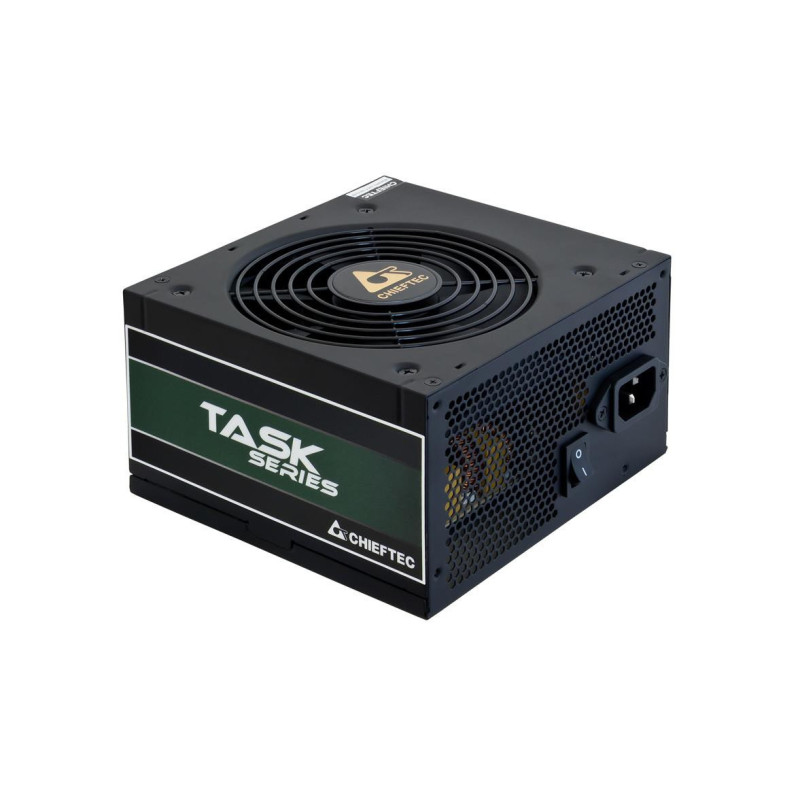

Power Supply, CHIEFTEC, 700 Watts, Efficiency 80 PLUS BRONZE, PFC Active, TPS-700S
Product reference:
2-753263076502
Power Supply, CHIEFTEC, 700 Watts, Efficiency 80 PLUS BRONZE, PFC Active, TPS-700S
Product reference:
2-753263076502
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
TPS-700S
The CHIEFTEC Task Series PSU's are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 80PLUS Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
| Summary | Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV |
| Vendor Homepage | https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.105 |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 648 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 19 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overheating/Overload/Short circuit/Under voltage |
| Total power | 700 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Certification | ErP, CE, CB, EAC, TUV |
| Compliance certificates | RoHS |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1740 g |
| Width | 150 mm |
| Package type | Box |
| Package weight | 2150 g |
| Harmonized System (HS) code | 84733020 |
| EPS cable length | 650 mm |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.006169 cubm |
| Unit Calculated Weight | 4.31 kg |
