Maitinimo šaltinis, CHIEFTEC, 700 vatų, efektyvumas 80 PLUS BRONZE, PFC aktyvus, TPS-700S
Prekės kodas:
2-753263076502
Maitinimo šaltinis, CHIEFTEC, 700 vatų, efektyvumas 80 PLUS BRONZE, PFC aktyvus, TPS-700S
Prekės kodas:
2-753263076502
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 3 - 5*
d. d.

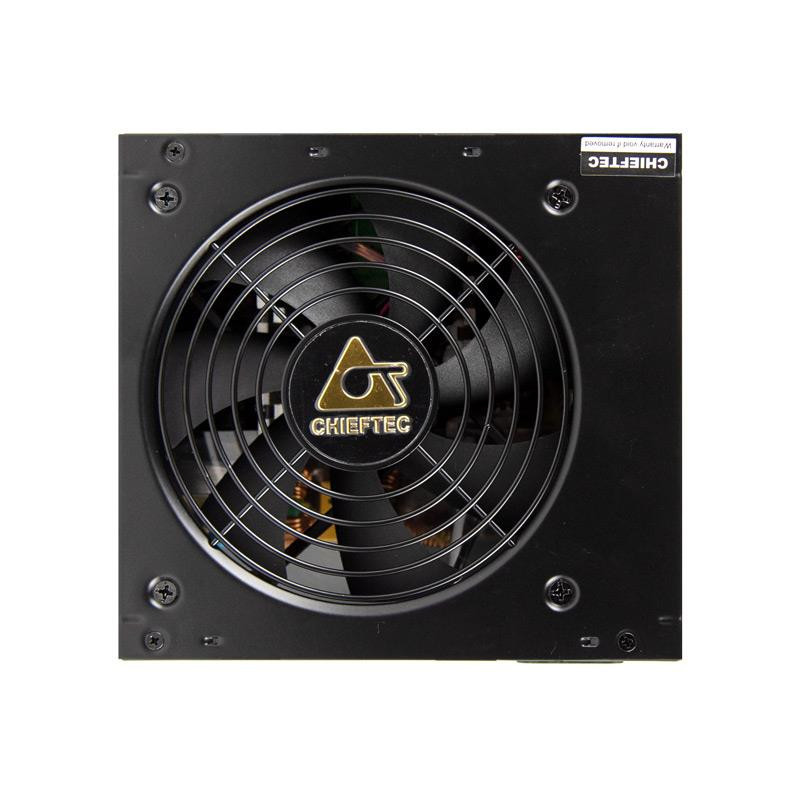

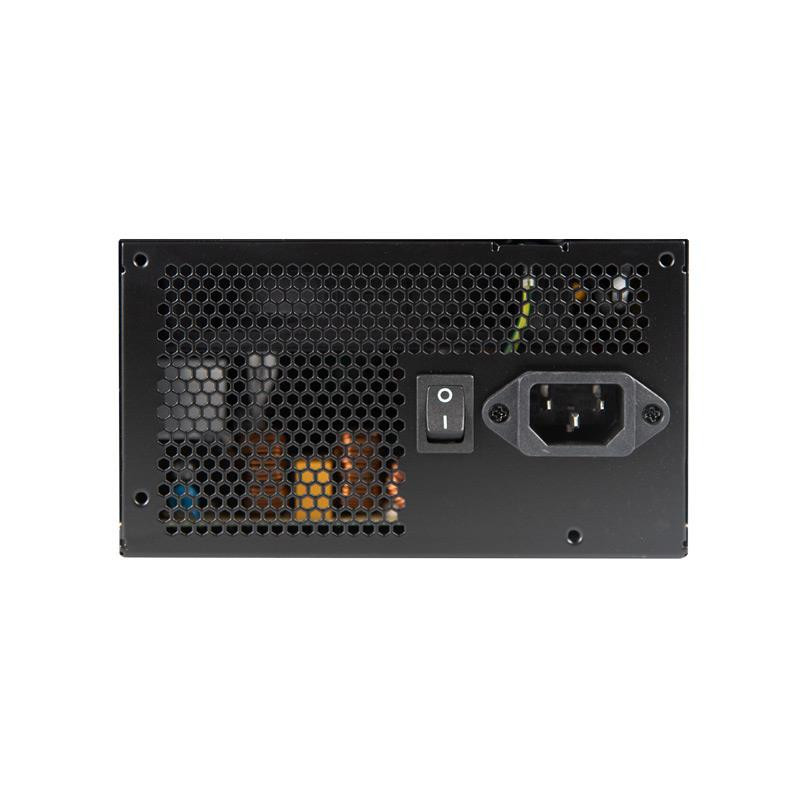

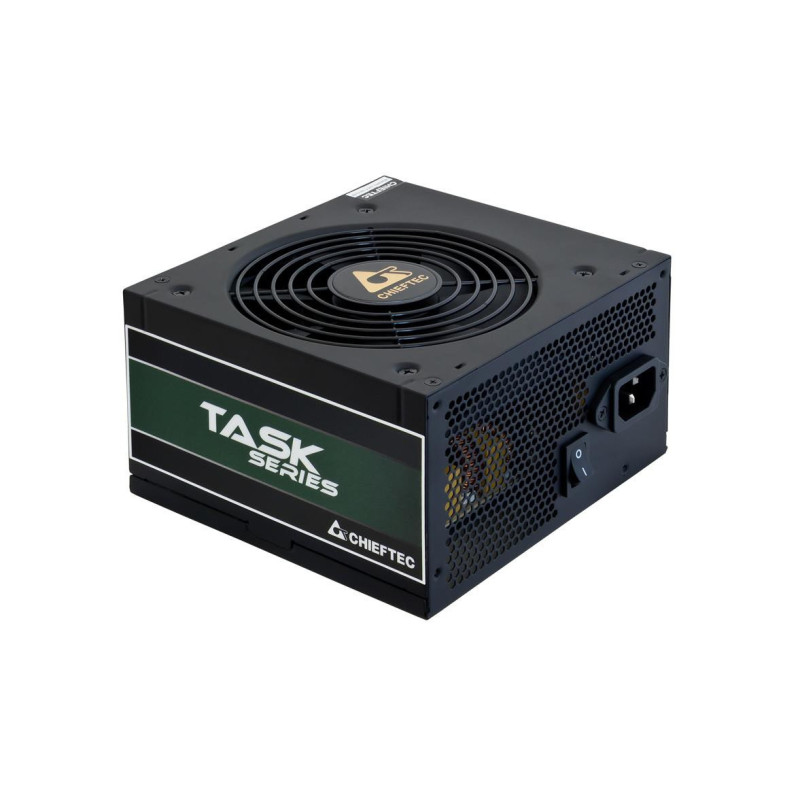

TPS-700S
The CHIEFTEC Task Series PSU's are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 80PLUS Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Certification | ErP, CE, CB, EAC, TUV |
| Combined power (+12V) | 648 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | RoHS |
| Depth | 140 mm |
| EPS cable length | 650 mm |
| EPS power connector (4+4 pin) | Yes |
| Fan diameter | 120 mm |
| Harmonized System (HS) code | 84733020 |
| Height | 87 mm |
| Input current | 10 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 19 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| Package type | Box |
| Package weight | 2150 g |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overheating/Overload/Short circuit/Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 150/500 mm |
| Summary | Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV |
| Supported motherboard form factors | ATX |
| Total power | 700 W |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.105 |
| Unit Calculated Volume | 0.006169 cubm |
| Unit Calculated Weight | 4.31 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S |
| Weight | 1740 g |
| Width | 150 mm |
