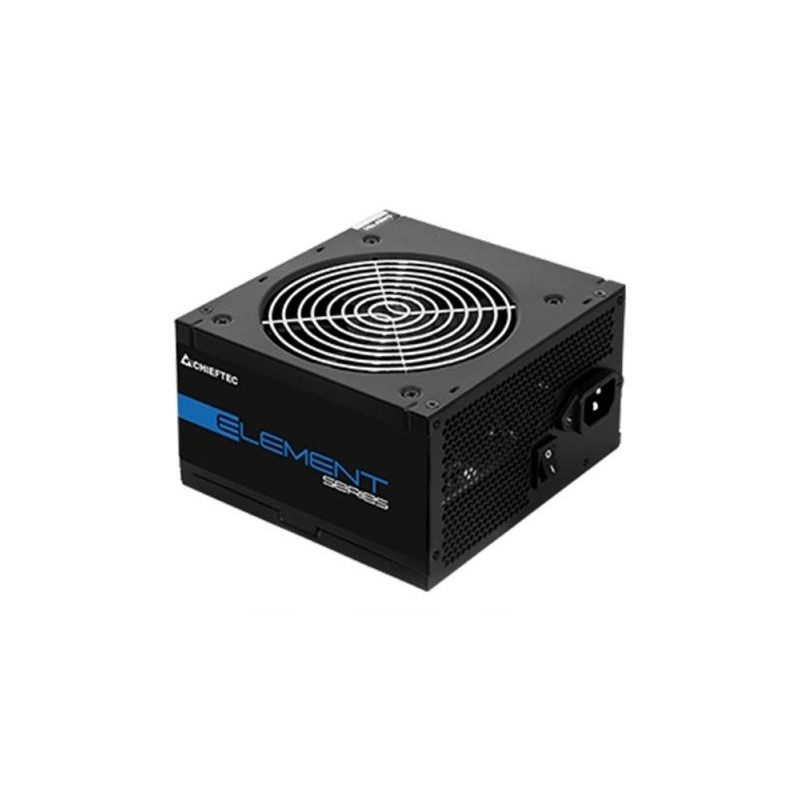

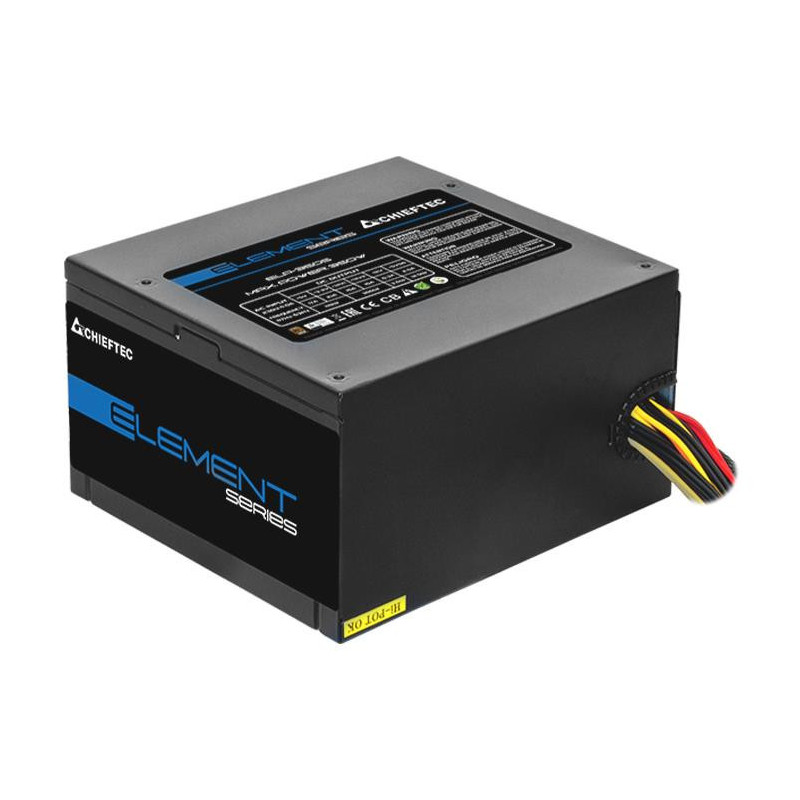

Power Supply, CHIEFTEC, 500 Watts, Efficiency 80 PLUS BRONZE, PFC Active, ELP-500S
Product reference:
2-4710713230958
Power Supply, CHIEFTEC, 500 Watts, Efficiency 80 PLUS BRONZE, PFC Active, ELP-500S
Product reference:
2-4710713230958
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
| Summary | Chieftec ELP-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PCIe, Peripheral (Molex), SATA |
| Vendor Homepage | https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/126/ELP-500S |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 456 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 85 % |
| Input current | 4 A |
| Max output current (+12V1) | 38 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Under voltage |
| Total power | 500 W |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express connector | Yes |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Cables included | AC,PCIe,Peripheral (Molex),SATA |
| Certification | CE, CB, EAC, ErP, RoHS, interseroh, TÜV |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1440 g |
| Width | 140 mm |
| Package type | Box |
| Package weight | 1700 g |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003795 cubm |
| Unit Calculated Weight | 0.652 kg |
